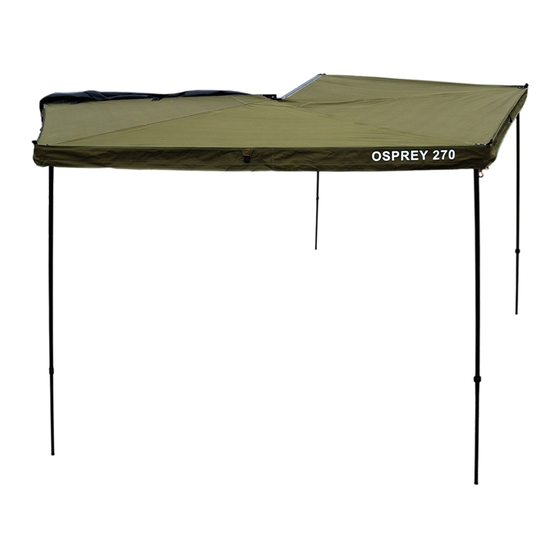

Summary of Contents for 23zero OSPREY 270

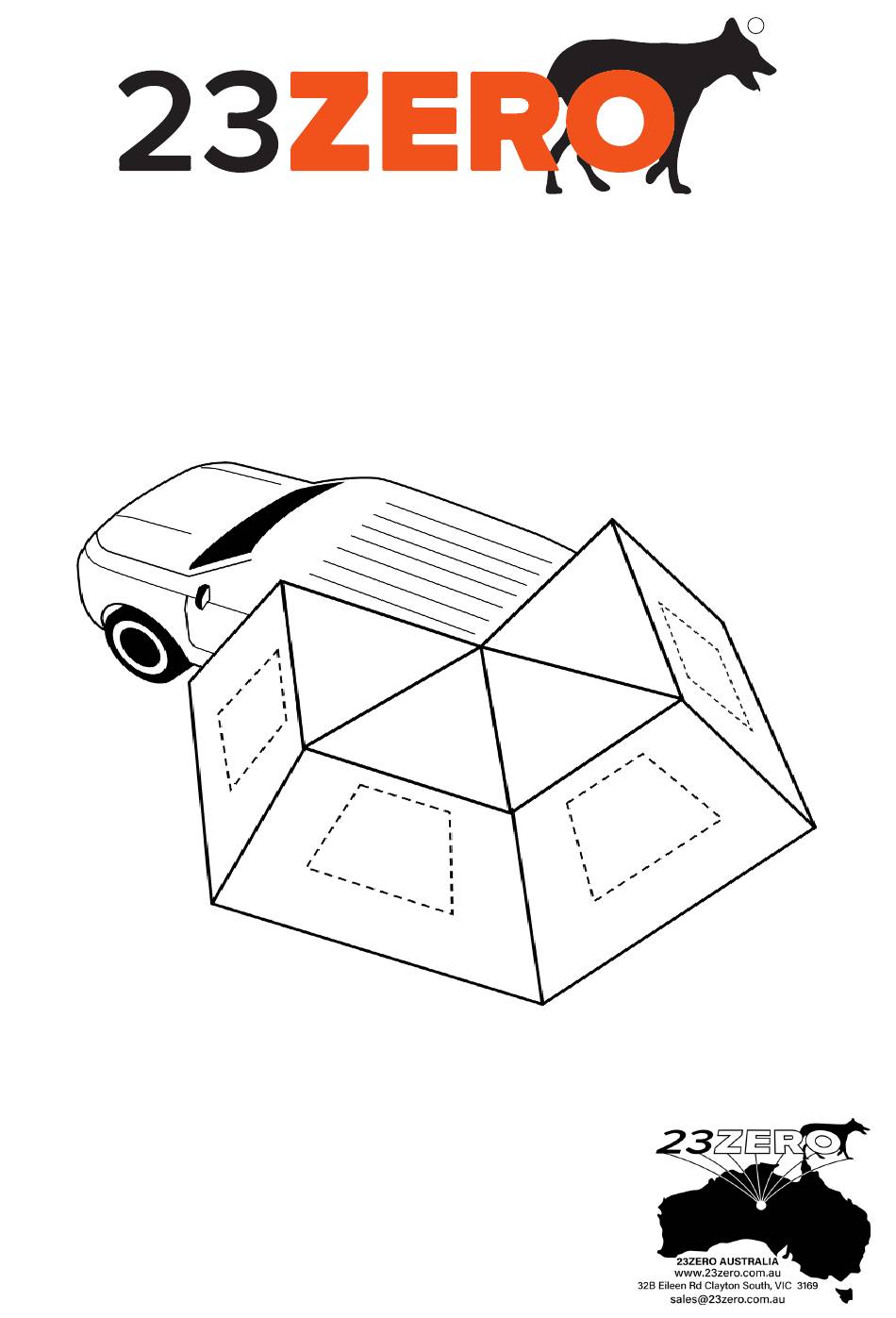

- Page 1 OSPREY 270 USER MANUAL...
- Page 2 Note: We highly recommend discussing specific load capacities and mounting options with a specific roof rack retailer or installer. 23ZERO recommends using a qualified or experienced fitter to mount the Osprey 270 to your vehicle. Fasteners and all fixing connections including hinges bolts should be checked and inspected regularly to ensure the awning is fixed securely to your vehicle roof rack at all times.
- Page 3 OSPREY 270 USER MANUAL Attaching brackets to awning 1. Place the awning on a protected clean surface with rear facing up. 2. At each end of the awning measure and mark the PVC in line with the two channel grooves at approx 500mm back from end of awning (ideally no more than 600mm) See Fig.
- Page 4 OSPREY 270 USER MANUAL Set up Note: The Osprey 270 will free stand for set-up and pack down REMOVE COVER Unzip cover (1.) and fold over awning body (2.) DEPLOY AWNING Release the 3 retaining straps (1.) and allow canvas to drape (2.)
- Page 5 OSPREY 270 USER MANUAL Set up Fully swing out outer arm toward rear of vehicle (1.) Attach cam buckle strap to roof rack and then to awning (2.) Tension strap to keep awning taut.
- Page 6 OSPREY 270 USER MANUAL Set up POLE SET UP 1. Undo Hook and Loop tabs supporting integrated leg poles. 2. Adjust leg pole height accordingly with twist lock function. Repeat for all leg poles. 3. Attach guy ropes to webbing loops above all leg poles and anchor securely.
- Page 7 OSPREY 270 USER MANUAL Pack Down 1. Remove pegs and guy ropes. Fold away legs and secure with hook and loop tabs. 2. Release cam buckle strap and unhook from awning and roof rack. 3. Swing rear of awning around against awning body (side of car) 4.
- Page 8 OSPREY 270 USER MANUAL Optional wall kits The Osprey wall panels are all the same size and will attach to any side of the awning. A total of 4 wall panels will fully enclose the awning (areas against vehicle excepted).
- Page 9 STORAGE With multiple layer seams and addition of zips, Certain situations may require the OSPREY 270° wind driven rain may cause small amounts of water to be packed down wet. It is essential that at the ingress at times.
- Page 10 OSPREY 270 USER MANUAL 2 Year Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and materials defects. Not including damage caused by misuse or abuse, wear and tear, condensation, extreme weather, accidents, incorrect set up, damage caused by mould, insects, animals or children.
