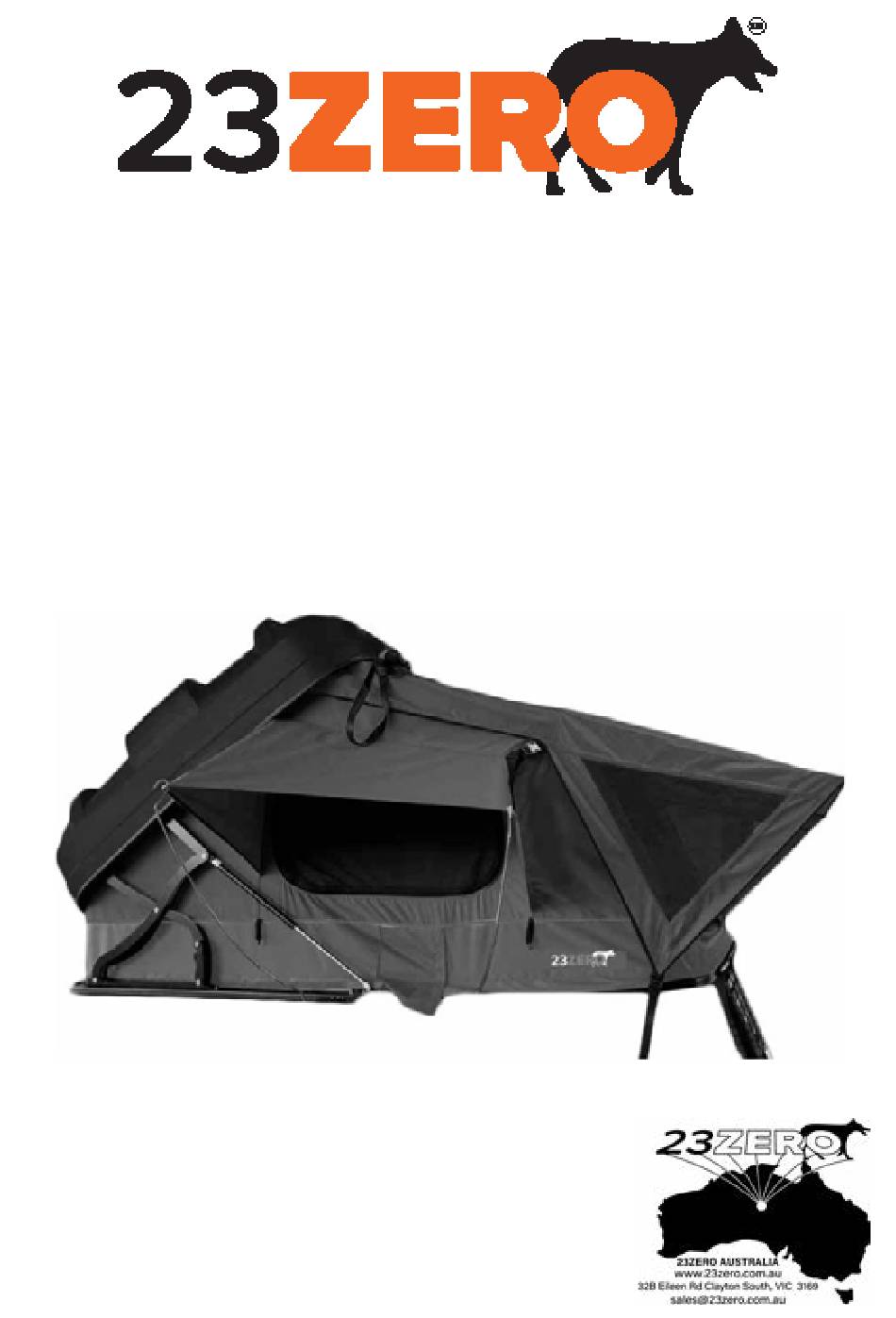

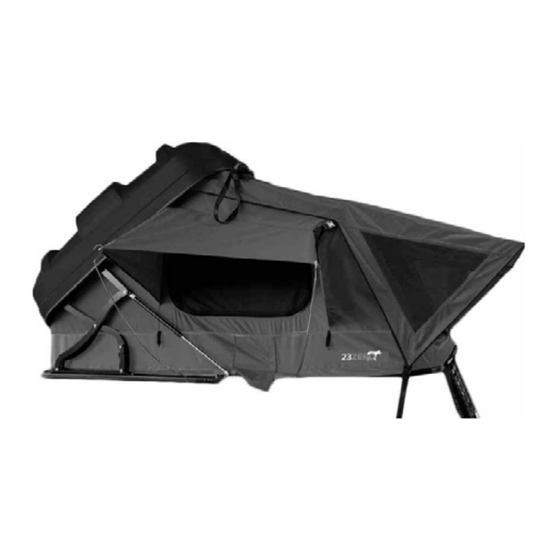

  • Page 1 YOWIE ABS HARDSHELL ROOF TOP TENT USER MANUAL...

  • Page 2: Table Of Contents

    It is advised to remove and clean these during first set up. PLEASE READ ALL INSTRUCTIONS PRIOR TO INSTALLING IMPORTANT Before installing your 23Zero Roof Top Tent please ensure you are aware and understand the following: • Your vehicle’s maximum roof load rating.

  • Page 3: Safety & Warnings

    Note: Alterations and / or inclusions such as roof racks and roof top tents applied to the vehicle roof may affect vehicle handling and characteristics. The manufacturer (23ZERO) disclaims all responsibility in case of accidents and / or damage due to installation of a roof top tent to an underrated roof rack, improper use, improper maintenance or checking the tightness of the brackets regarding the installation of the roof rack system.

  • Page 4: Hardware & Accessories

    The YOWIE Hardshell roof top tent includes a mounting kit with everything required to mount the roof top tent to most roof or tub racks . Note: Some platform style roof racks have platforms which are wider than the supplied mounting plate. 23ZERO have wider mounting plates available for this scenario. Please visit www.23zero.com.au.

  • Page 5: Fitting To Roof Rack

    YOWIE USER MANUAL Fitting to roof rack The YOWIE roof top tent must be fitted to roof racks with hinges facing left hand side of vehicle (AUS passenger side). It will open over the right hand side (AUS driver’s side). Clamp 4 corners using 8 x 55mm M8 bolts, 8 slide plates &...

  • Page 6: Ladder Adjustment

    YOWIE USER MANUAL Ladder adjustment For your safety and protection, ensure correct placement and angle of ladder. See diagrams below. Recommended ladder placement is a 4:1 ratio or approx. 70° to 75°. NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at the correct angle.

  • Page 7: Opening & Set Up

    YOWIE USER MANUAL Opening & Set up 1. Locate locking straps. Press cam to release tension, lift lock and unhook strap. Repeat all 4 corners. 2. Lift ABS lid until gas struts takeover. Lower pack up assisting shock cord and attach to retainer on each corner of baseboard. 3.
  • Page 8 YOWIE USER MANUAL Opening & Set up 4. IMPORTANT: Set and secure ladder before proceeding. See “Ladder adjustment” - page 5 5. Release canopy hoop trigger locks to extend canopy hoop. Lock to fix. Repeat other side. 3. Attach fly to canopy pole via hook & loop wrap and to tent body via hook & loop side strip. Repeat for both sides.
  • Page 9 YOWIE USER MANUAL Opening & Set up 3. Locate window stay pole holes on baseboard and insert window stay poles. Flex pole and feed hook end through eyelet on window canopy. Repeat both sides. TIP: This can be done through windows from inside tent.

  • Page 10: Closing & Pack Up

    YOWIE USER MANUAL Closing & Pack up 1. Bedding can be left in the YOWIE. Before closing, fold all bedding and stow neatly against back wall. Bedding will stow here when closed NOTE: The amount of bedding left in tent may affect closure. If tent is not folding and closing smoothly, bedding may be too bulky and must be removed.
  • Page 11 YOWIE USER MANUAL Closing & Pack up 4. Use ladder to fold baseboard. NOTE: If ladder has been height adjust, extend fully before proceeding. 5. Retract ladder and secure with hook & loop strap. Lift shock cord and place around centre of tent ensuring all canvas is tucked inward and not flapping on sides.
  • Page 12 YOWIE USER MANUAL Closing & Pack up 6. Once closed, hook cam buckle to locking mechanism and pull outer strap to tension until lid cannot open. Repeat for all 4 locks. Lock using keys provided. Pack up complete IMPORTANT: Ensure the YOWIE is packed dry at all times. If weather conditions dictate a wet pack up, open the tent and allow to dry fully as soon as possible.

  • Page 13: Warranty

    YOWIE USER MANUAL 2 Year Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and materials defects. Not including damage caused by misuse or abuse, wear and tear, condensation, extreme weather, accidents, incorrect set up, damage caused by mould, insects, animals or children.

  • Page 14: Mounting Rail Dimensions

    YOWIE USER MANUAL Mounting rail dimensions The diagrams and dimensions below will assist in preparing roof racks and roof bars for fitment. YOWIE 1600...
  • Page 15 YOWIE USER MANUAL Mounting rail dimensions The diagrams and dimensions below will assist in preparing roof racks and roof bars for fitment. YOWIE 1900...
