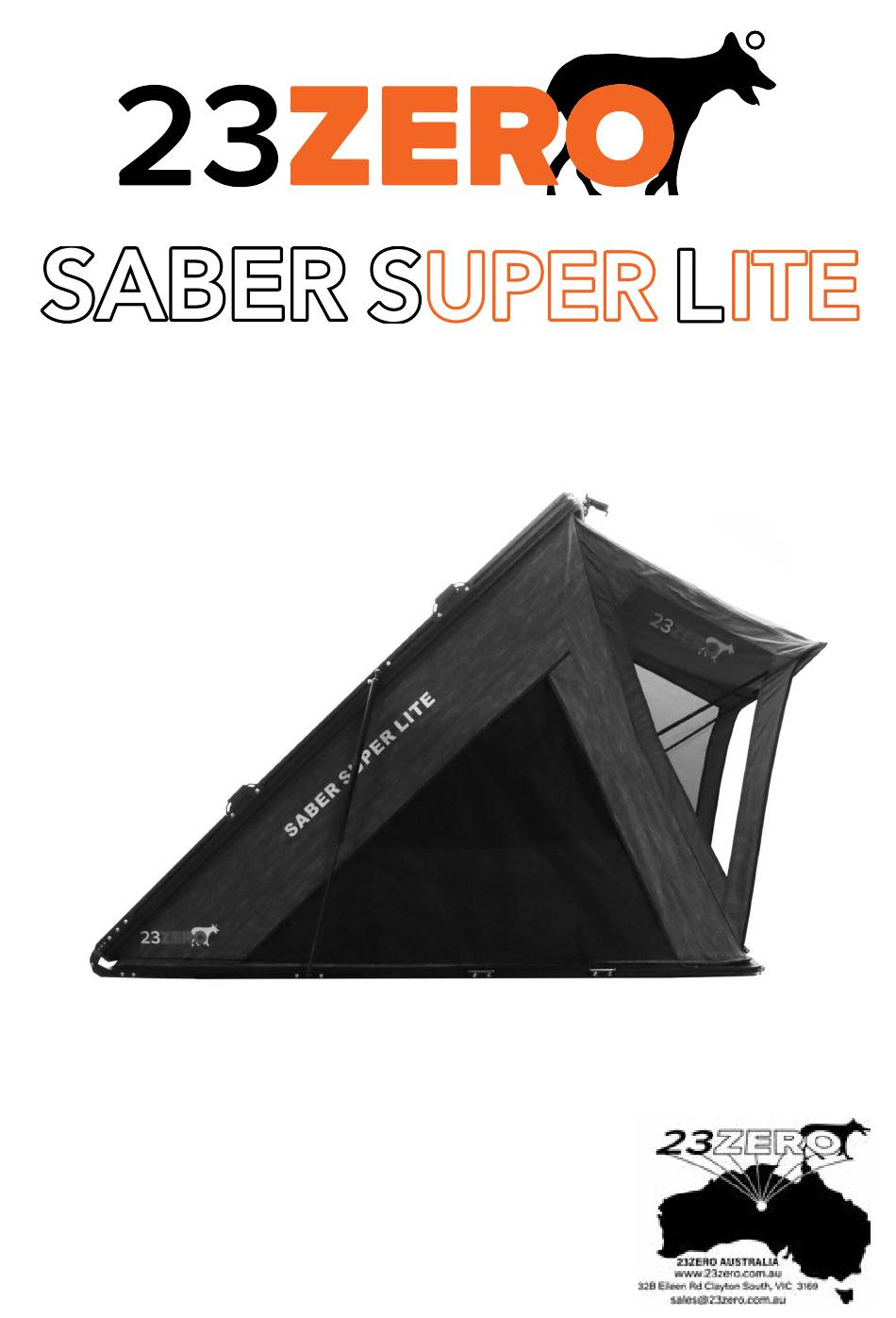

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents

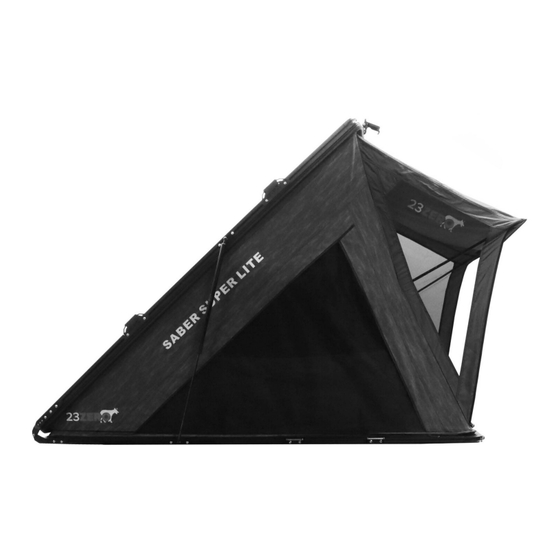

Congratulations on the purchase of 23ZERO’s Saber Super Lite Hardshell Roof Top Tent. We strive to provide you with the ultimate camping experience. The Saber Super Lite Tent mounts directly to a roof rack or aftermarket roof bars. It opens and is fully setup in seconds. As well as our innovative LST fabric, this hardshell tent is made with durable materials and high-quality fabrics that provide excellent water and wind protection. -
Page 3: Safety & Warnings
SABER SUPER LITE USER MANUAL Safety & Warnings Improper installation or use of the Saber Super Lite roof top tent may result in serious injury or death. Follow these installation instructions carefully to ensure proper installation to vehicle and safe use of the roof top tent. -
Page 4: Hardware & Accessories
SABER SUPER LITE USER MANUAL Hardware & Accessories The Saber Super Lite Hardshell roof top tent includes a mounting kit with everything required to mount the roof top tent to most roof racks. Note: Some platform style roof racks have platforms which are wider than the supplied mounting plate. -
Page 5: Fitting To Roof Rack
SABER SUPER LITE USER MANUAL Fitting to roof rack Recommended and efficient installation of the Saber Super Lite. It is highly recommended to employ a 3 x roof bar system. This is vital to guarantee a consistent and sturdy support for the tent base (please refer to the diagram below). Alternatively, if desired, the tent can be directly affixed to a full-length platform-style rack or flat rack. - Page 6 SABER SUPER LITE USER MANUAL Inspect the position of the roof top tent to ensure it will open unobstructed in the desired orientation. Note: It is recommended that the rear of the tent aligns flush with the back of the vehicle to ensure the correct ladder angle.
-
Page 7: Roof Bars
SABER SUPER LITE USER MANUAL Roof bars Note: The roof bars supplied with the Saber Super Lite roof top tent are not designed to carry significant loads. A maximum of 10kg can be carried on top of the Saber Super Lite providing this weight is spread evenly amongst the 2 bars. -
Page 8: Ladder Adjustment
SABER SUPER LITE USER MANUAL Ladder adjustment For your safety and protection, ensure correct placement and angle of ladder. See diagrams below. Recommended ladder placement is a 4:1 ratio or approx. 70° to 75°. NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at the correct angle. -
Page 9: Opening & Set Up
SABER SUPER LITE USER MANUAL Opening & Set up Once the Saber Super Lite is fixed securely to the vehicle’s roof rack and the ladder is locked and angled correctly, climb the ladder, release the locks front and rear of tent and lift until the gas struts take over. -
Page 10: Warranty
SABER SUPER LITE USER MANUAL 2 Year Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and materials defects. Not including damage caused by misuse or abuse, wear and tear, condensation, extreme weather, accidents, incorrect set up, damage caused by mould, insects, animals or children.
