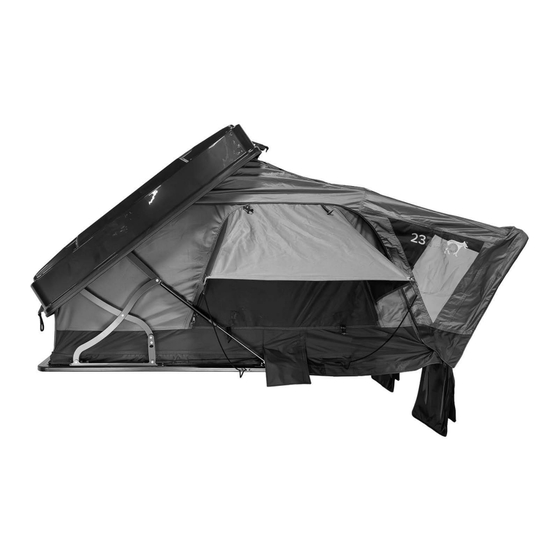

23zero ARMADILLO X SLIM User Manual

Abs hardshell roof top tent
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ARMADILLO X SLIM
ABS HARDSHELL
ROOF TOP TENT
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARMADILLO X SLIM and is the answer not in the manual?

Questions and answers

Related Manuals for 23zero ARMADILLO X SLIM

Summary of Contents for 23zero ARMADILLO X SLIM

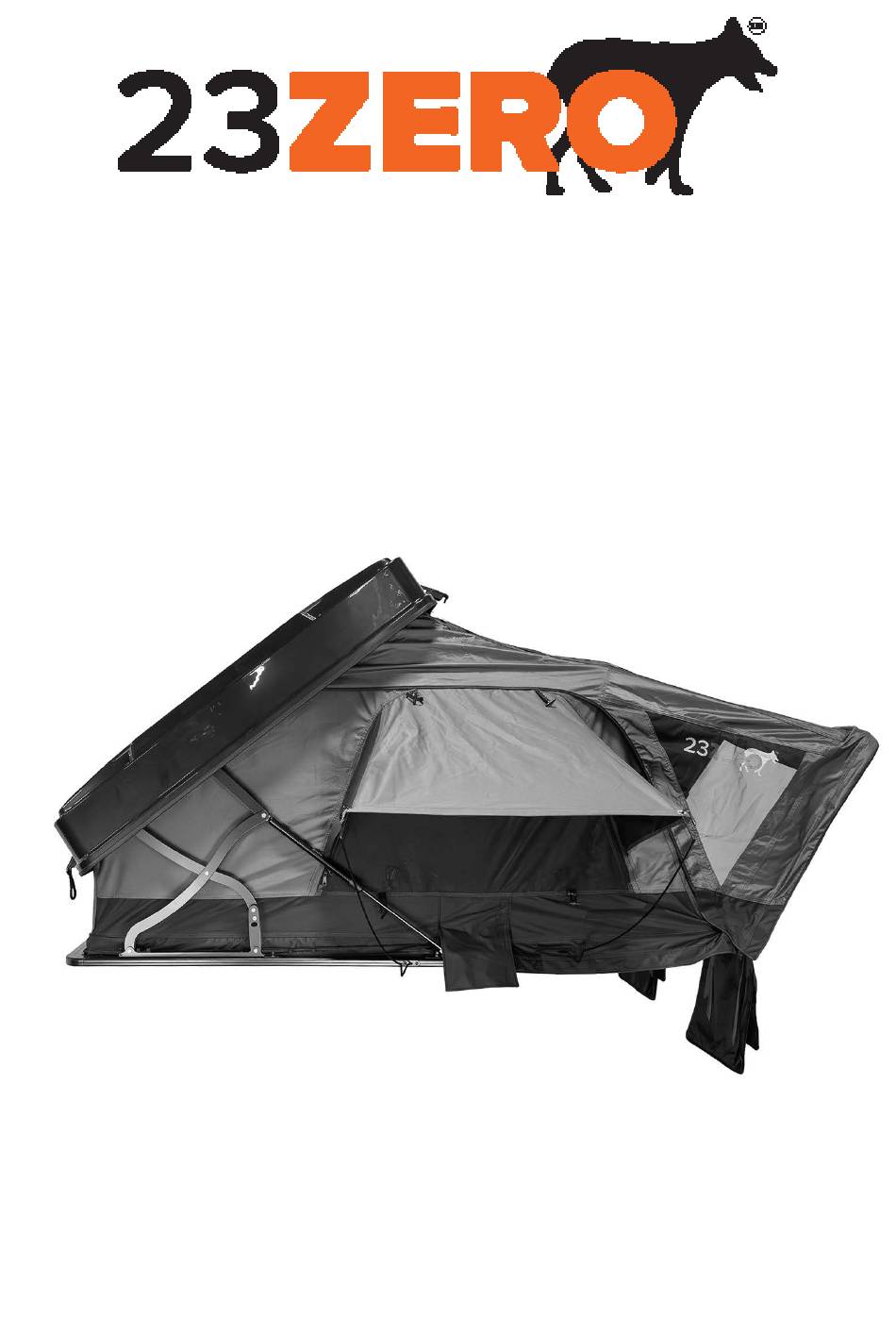

  • Page 1 ARMADILLO X SLIM ABS HARDSHELL ROOF TOP TENT USER MANUAL...

  • Page 2: Table Of Contents

    Congratulations on the purchase of 23ZERO’s Armadillo X Slim Hardshell roof top tent! We strive to provide you with the ultimate camping experience. The Armadillo X Slim mounts directly to a roof rack or aftermarket roof bars. It opens and is fully set up in seconds. Along with our innovative LST fabric, this hardshell tent is made with durable materials and high-quality fabrics that provide excellent water and wind protection.

  • Page 3: Safety & Warnings

    ARMADILLO X SLIM USER MANUAL Safety & Warnings Important Notice: Improper installation or use of the Armadillo X Slim roof top tent may result in serious injury or death. Follow these instructions carefully to ensure proper installation and safe use of the roof top tent.

  • Page 4: Hardware & Accessories

    ARMADILLO X SLIM USER MANUAL Hardware & Accessories The Armadillo X Slim includes a mounting kit with everything required to mount the roof top tent to most roof racks.

  • Page 5: Fitting To Roof Rack

    Fitting the ARMADILLO X Slim Roof Top Tent 1. Determine Ladder Deployment Side: - The Armadillo X Slim can be oriented to deploy from either the right or left side of the vehicle. - Release all four locking clamps and raise the shell.

  • Page 6: Opening & Set Up

    ARMADILLO X SLIM USER MANUAL Opening & Set up Deployment Options Option 1: For weight reduction and when the tent is mounted lower than 63 inches (e.g., rear of dual/single cabs, trailers, etc.), use the new extendable pole. This allows for the ladder to be removed and stored separately during pack down.
  • Page 7 ARMADILLO X SLIM USER MANUAL OPTION 1: Using the Extendable Pole to Deploy and Pack Down Tent 1. The extendable pole is factory-fitted for your convenience. Disengage it from the C clip position on the baseboard. 2. Pivot the pole at the knuckle so it is fully extended and secure it with the locking pin. Ensure the pin is fitted correctly with an audible click.
  • Page 8 ARMADILLO X SLIM USER MANUAL Option 2: Using Ladder to Deploy Tent 1. Remove the fitted extendable pole attached to the baseboard by depressing the locking pin. Store the pin in a safe place. Unclip the extended pole from its secured C clip and set it aside.
  • Page 9 ARMADILLO X SLIM USER MANUAL TIP: This can be done through windows from inside tent.
  • Page 10 ARMADILLO X SLIM USER MANUAL Closing & Packing up Armadillo X Slim Packing down the Armadillo X Slim tent is the reverse procedure of setting it up. Note: To avoid component damage, it is highly recommended not to place additional bedding within the tent when packing down.
  • Page 11 ARMADILLO X SLIM USER MANUAL 1. Fold Tent: A. Stand in front of the tent and with two hands, push the pole up and over until the two base- boards meet. B. Secure the extendable pole back into the C clip on the baseboard in a folded manner as per factory specifications.

  • Page 12: Closing & Pack Up

    ARMADILLO X SLIM USER MANUAL Closing & Pack up Using the Ladder Step-by-Step Instructions: 1. Remove Window Rods: A. From within the tent, remove all window rods and store them in the provided sleeve. Place the sleeve under the mattress towards the rear of the tent.
  • Page 13 ARMADILLO X SLIM USER MANUAL Closing & Pack up Important Step: The tent canopy hoop must be retracted, locked, and positioned so it is just resting over the ladder feet. It should not be resting above the feet nor too far back. If the tent lid is not fully closing, the canopy hoop is not positioned correctly.
  • Page 14 ARMADILLO X SLIM USER MANUAL Closing & Pack up PACK UP COMPLETE. IMPORTANT: Ensure the ARMADILLO X is packed dry at all times. If weather conditions dictate a wet pack up, open the tent and allow to dry fully as soon as possible.

  • Page 15: Ladder Adjustment

    ARMADILLO X SLIM USER MANUAL Ladder adjustment For your safety and protection, ensure correct placement and angle of ladder. See diagrams below. Recommended ladder placement is a 4:1 ratio or approx. 70° to 75°. NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at the correct angle.

  • Page 16: Mounting Rail Dimensions

    ARMADILLO X SLIM USER MANUAL Mounting rail dimensions The diagrams and dimensions below will assist in preparing roof racks and roof bars for fitment ARMADILLO X SLIM 51.2" 63.8" 9.4" 27.6"...

  • Page 17: Warranty

    ARMADILLO X SLIM USER MANUAL Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Making a claim To make a claim in relation to the above manufacturers warranty please ensure you retain your sales receipt of purchase.
