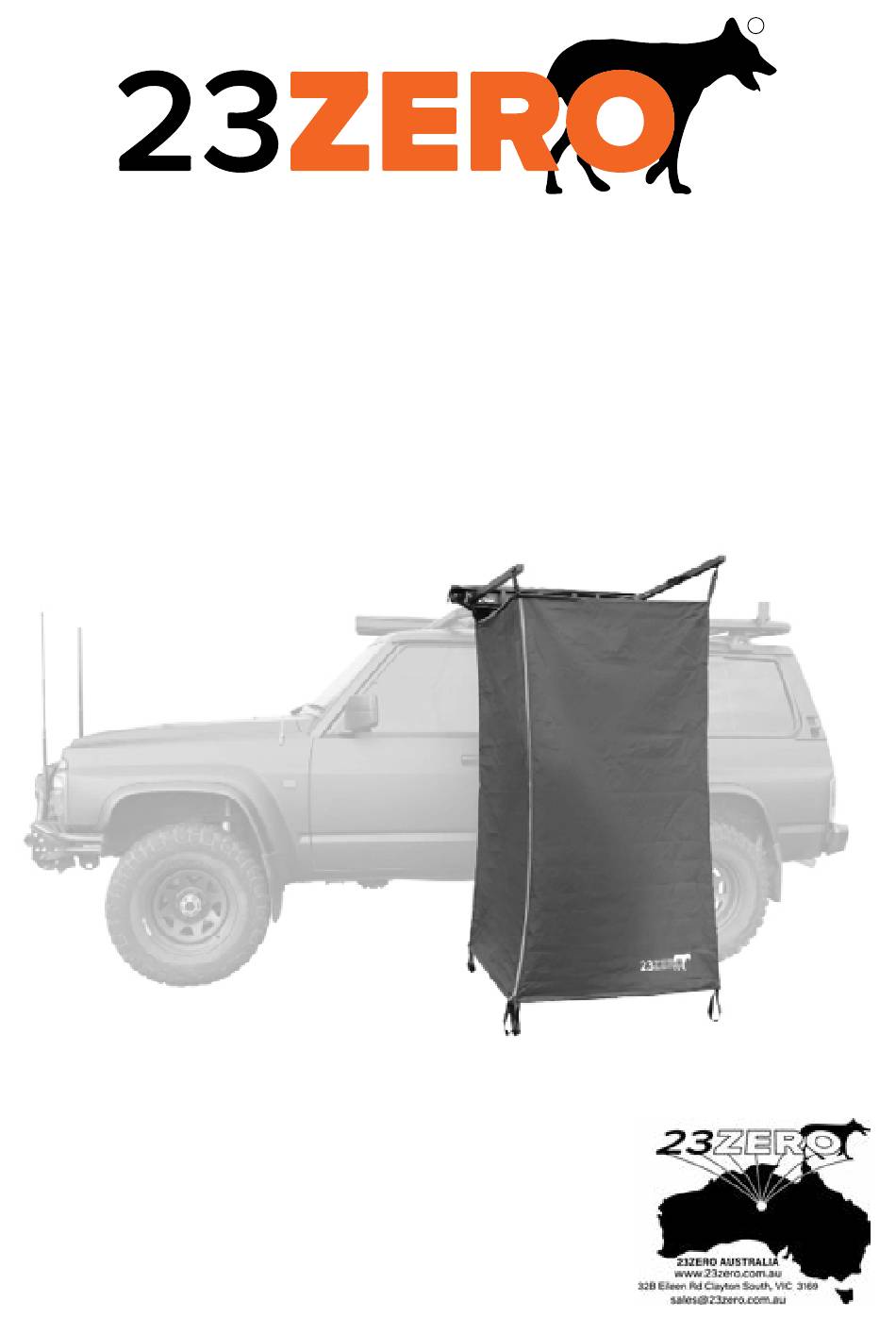

- Page 1 RAPID SHOWER TENT USER MANUAL...
-
Page 2: Table Of Contents
Please read these instructions carefully before installing the awning to your vehicle. Check all parts are included prior to first use. 23ZERO recommends using a qualified or experienced fitter to mount the Rapid shower tent to your vehicle. Fasteners and all fixing connections including hinges bolts should be checked and inspected regularly to ensure the awning is fixed securely to your vehicle roof rack at all times. -
Page 3: Fitting Brackets To Roof Racks
RAPID SHOWER TENT USER MANUAL Fitting brackets to roof bars / roof rack Rapid shower tent mounting brackets are suited to many roof rack designs, however, with the increasing number of new designs / models available from reputable brands, additional hardware may need to be obtained for correct secure fitment. -
Page 4: Fitting Shower Tent To Brackets
RAPID SHOWER TENT USER MANUAL Fitting shower tent to brackets With rear of shower tent facing upward, remove plastic end cap from one end and slide 2 x M8 16mm bolts in each channel, 4 bolts total. Replace end cap. -
Page 5: Set Up
RAPID SHOWER TENT USER MANUAL Set up Unzip transit cover and fold over. Release the 2 outer retaining straps and allow curtain to unroll and drape. Release the 2 inner retaining straps to release rafters Fig.6 and swing top rafter out Fig7. -
Page 6: Pack Down
RAPID SHOWER TENT USER MANUAL Pack up Remove all pegs, towels and empty internal pockets. Press hinge release lever on LOWER rafter arm and fold inward NOTE: Shower tent rafter position may differ depending on time of production. Lower rafter arms can swing from either LHS or RHS. - Page 7 RAPID SHOWER TENT USER MANUAL Pack Up Ensure curtain is draping flat Fig.9. Grab bottom hem rods and roll up curtain tightly. Attach hook & loop retaining straps to secure roll Fig 10. Fig 9. Fig 10. Zip up transit cover. Pack up complete...
-
Page 8: Care And Safety
RECOMMENDS THE RAPID SHOWER purpose of easy set up, it is strongly recommended TENT SHOULD NOT BE ERECTED DURING that the RAPID SHOWER TENT is firmly anchored WINDY AND OR ADVERSE WEATHER. at all times regardless how good conditions may be. -
Page 9: Warranty
OSPREY 270 USER MANUAL 2 Year Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and materials defects. Not including damage caused by misuse or abuse, wear and tear, condensation, extreme weather, accidents, incorrect set up, damage caused by mould, insects, animals or children.
