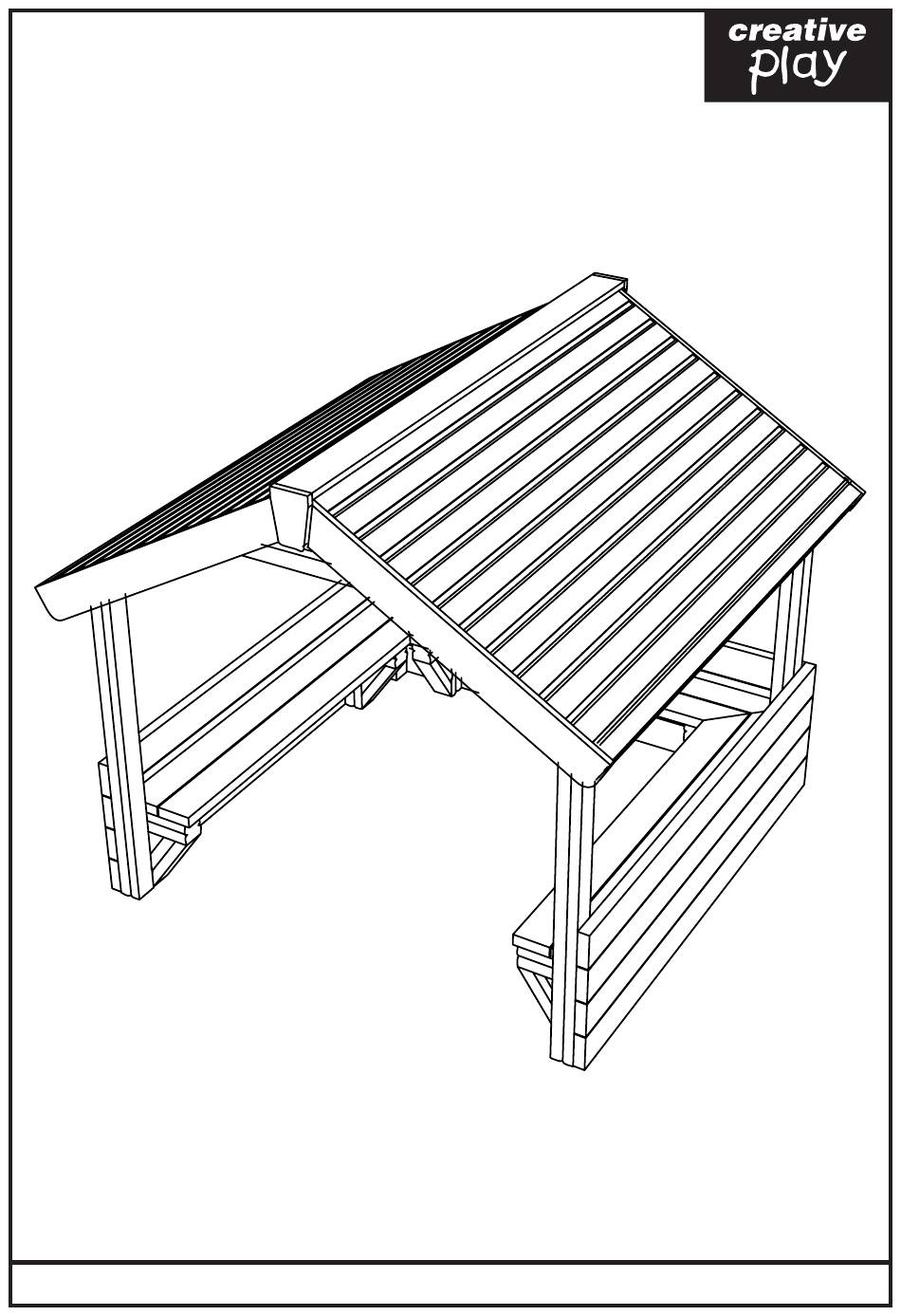

- Page 1 NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR Installation Instructions REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 1 of 11 10/03/2017 - KB...
-
Page 2: Parts Required
152F [X2] 152B [X8] SEAT LEG ASSEMBLY [X6] ROOF ASSEMBLY TIMBERS 152R 152S RIDGE BEAM INSTALLED UNDER 152R 152Q [X2] ROOF ASSEMBLY [X2] 152T [X2] 152P [X4] REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 2 of 11 10/03/2017 - KB... -
Page 3: Tools Required
PARTS REQUIRED M8X80 [X93] M8X120 [X22] M8X180 [X22] TOOLS REQUIRED REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 3 of 11 10/03/2017 - KB... - Page 4 FOUNDATION DETAIL 1910 REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 4 of 11 10/03/2017 - KB...
- Page 5 INSTALLATION INSTRUCTIONS INSTALL 152A INTO THE GROUND ATTACH ROOF ASSEMBLIES TO 152S USING M8X120 WOOD SCREW REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 5 of 11 10/03/2017 - KB...
- Page 6 INSTALLATION INSTRUCTIONS POSITION ROOF AND FIX TO UPRIGHTS USING M8X180 WOOD SCREWS ATTACH 152T TO THE ROOF ASSEMBLIES USING M8X180 WOOD SCREWS FROM THE INSIDE REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 6 of 11 10/03/2017 - KB...
- Page 7 ATTACH 152P TO THE ROOF ASSEMBLY TIMBERS USING M8X80 WOOD SCREWS - ENSURE TUMBERS ARE FLUSH WITH TOP OF 152S ATTACH 152R TO 152S USING M8X80 WOOD SCREW REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 7 of 11 10/03/2017 - KB...
- Page 8 INSTALLATION INSTRUCTIONS ATTACH 152Q TO 152P USING M8X80 WOOD SCREWS ATTACH 152B TO 152A USING M8X80 WOOD SCREWS REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 8 of 11 10/03/2017 - KB...
- Page 9 INSTALLATION INSTRUCTIONS ATTACH 152C TO 152A USING M8X80 WOOD SCREWS ATTACH 2X SEAT SUPPORT ASSEMBLYS TO 152A USING M8X180 WOOD SCREWS REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 9 of 11 10/03/2017 - KB...
- Page 10 ATTACH THE REMAINING SEAT SUPPORT ASSEMBLYS TO 152B & 152C USING M8X120 WOOD SCREWS - IN THE LOCATIONS SHOWN BELOW ATTACH 152F, 152G, 152H & 152J TO SEAT SUPPORT ASSEMBLIES USING M8X80 WOOD SCREWS REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 10 of 11 10/03/2017 - KB...
-
Page 11: Additional Dimensions
ADDITIONAL DIMENSIONS 2090 2280 2045 REF: NUR152 - TIMBER PLAYHOUSE WITHOUT FLOOR pg 11 of 11 10/03/2017 - KB...
