Summary of Contents for Creative Play ZENITH TWO Z102

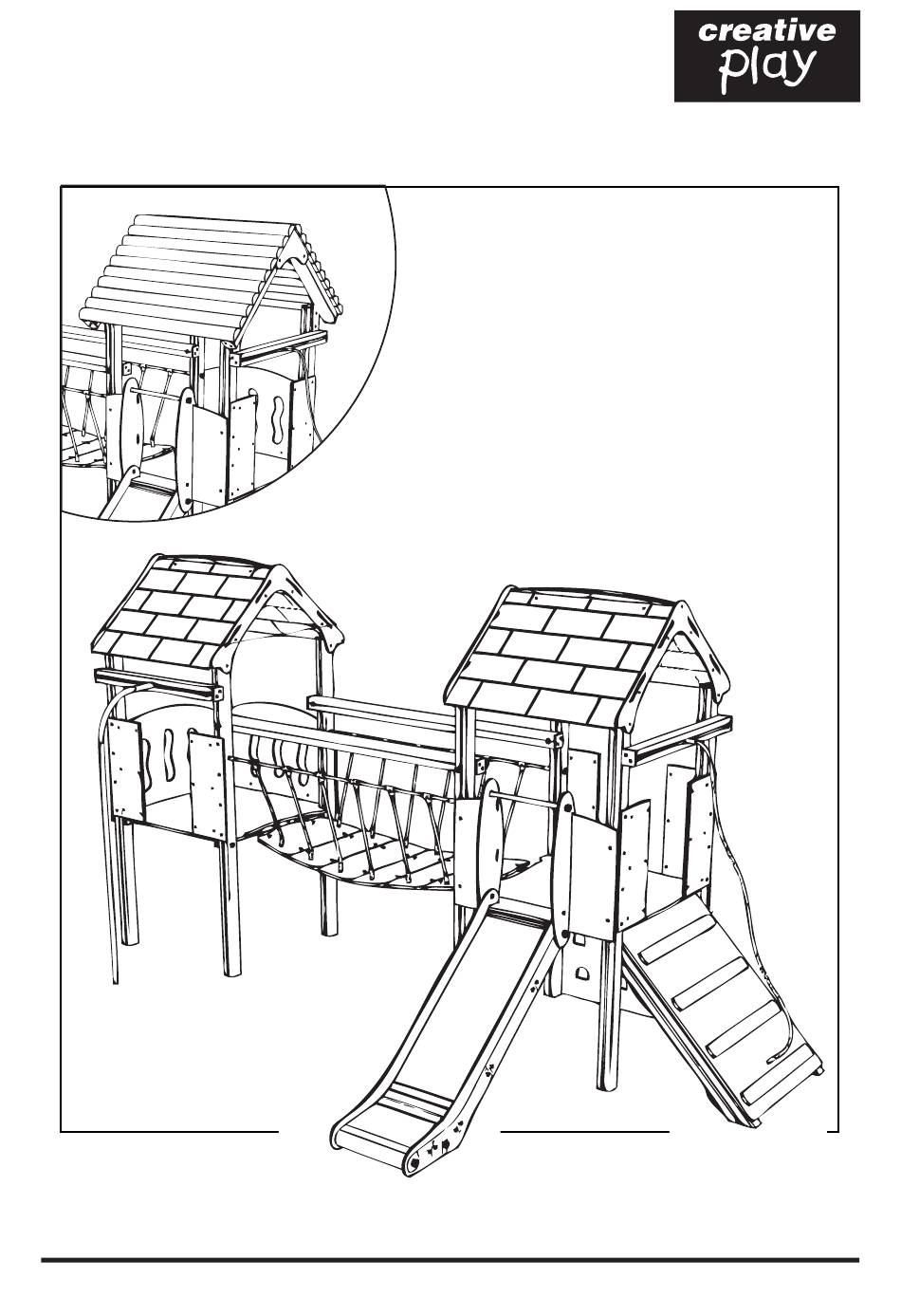

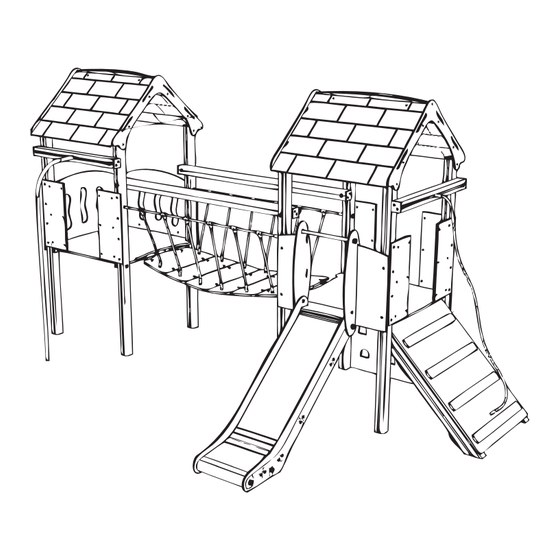

- Page 1 ZENITH TWO Installation Instructions REF: Z102 - ZENITH TWO pg 1 of 17...
-
Page 2: Parts Required
PARTS required PARTS required (PRE-ASSEMBLED PANEL) (90 x 90 CLATTERBRIDGE FLOOR) (RAMP ASSEMBLY) (ZENITH TOWERS STANDARD FLOOR 90x90) (PLAYTEC BARRIER PANEL - FOR FLAT SIDE TIMBER) (HEXBOARD RAMP) (PLAYTEC BARRIER PANEL - FOR GROOVED SIDE TIMBER) (RAMP ROPE) REF: Z102 - ZENITH TWO pg 2 of 17... - Page 3 PARTS required PARTS required (SLIDE CLIPS) (CLATTERBRIDGE) (1m SLIDE) LEFT (SLIDE METAL FRAME) (SLIDE SIDE) RIGHT (SLIDE SIDE) (FIREFIGHTERS POLE AND BRACKET) (HEX CLIMBER) (M12 x 200SQUARE CUP HEX BOLTS) (FM80‘ Brass screws’) (M12 x 150 SQUARE CUP HEX BOLTS) (FM40‘...
- Page 4 PARTS required ( STANDARD ROOF ) (ROOF (TOP ROOF CLIP) (SIDE ROOF ) (N1 - TORKTAINER) (3B- TORKTAINER) (FM80 ‘ Brass screws’) (FRONT ROOF) (BACK ROOF) PARTS required (RUSTIC ROOF ) (HALF ROUND TIMBERS) x128 (FM80 ‘ Brass x4 LEFT (TOP RUSTIC ROOF) (SIDES RUSTIC ROOF) x4 RIGHT...
-
Page 5: Tools Required
TIMBERS required Z102f Z102h Z102i Z102g Z102i Z102c Z102e Z102b Z102d Z102b Z102a Z102a TOOLS required REF: Z102 - ZENITH TWO pg 5 of 17... -
Page 6: Foundation Details
Foundation Details CLATTERBRIDGE RAMP SLIDE FIREFIGHTERS POLE FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil REF: Z102 - ZENITH TWO pg 6 of 17... -
Page 7: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA 6.25m REF: Z102 - ZENITH TWO pg 7 of 17... -
Page 8: Installation Instructions
Installation Instructions Installation Instructions Install timber UPRIGHTS Follow foundation details Z102f Z102c Z102e Z102d Z102b Z102b Z102a Z102a ATTACH METAL FLOOR FRAMES AND HEX FLOORS Using 4x150mm M12 SQUARE CUP HEX BOLTS/ 4x Nylocs / 4x RED CAPS (PER FLOOR) Z102e Z102f Z102d... - Page 9 Installation Instructions Attach the RAMP to Z102a TIMBERS Using 2x @200mm M12 SQUARE CUP HEX BOLTS / 2x NYLOCS / 2x RED CAPS / 10x FM80 Brass Screws RAMP HOLE - 148mm from the top of the floor - 850mm from the ground -1412mm from the top Z102b Z102b...
- Page 10 Installation Instructions Installation Instructions Attach TIMBER Z102g and RAMP ROPE Using 2X 200mm M12 CUP SQ. HEX / 2 X M12 NYLOCS / 2 X COVERED ENDS - RAMP PULL TIMBER 2x NYLOCS / 2x COVERED ENDS - RAMP ROPE Z102g Z102a Z102b...
- Page 11 Installation Instructions Insert the SLIDE SIDES to the SLIDE and to the timbers USING 4x ‘FM80 Brass Screws’ Z102b Z102a Z102a Z102b ATTACH FIREFIGHTERS POLE ATTACH Z102h USING 2 X 200mm CUP SQUARE BOLTS / 2 X M12 NYLOCS / 2 X COVERED ENDS/ ATTACH POLE INTO METAL BRACKET - TIGHTEN INTO PLACE AND FIX TO MIDDLE OF TIMBER USING FM80 BRASS SCREWS.
- Page 12 Installation Instructions Installation Instructions ATTACH the CLATTERBRIDGE and TIMBERS Z102i Fig1 - ATTACH Z102i TIMBERS USING 4 X M12 X 200 CUP SQUARE BOLTS / 4 X M12 NYLOCS / 4 X COVERED ENDS Fig2 - ATTACH ROPES USING 4 X M12 NYLOCS / 4 X COVERED ENDS Fig3 - ATTACH CLATTERBRIDE CHAIN USING 4 X M12 NYLOCS / 4 X COVERED ENDS FIG1 FIG2...
-
Page 13: Attach Side Panels
Installation Instructions Installation Instructions ATTACH SIDE PANELS USING FM80 BRASS WOOD SCREWS Z102c Z102f ATTACH RAMP BARRIER SIDES TO Z102a TIMBERS USING FM80 BRASS WOOD SCREWS REF: Z102 - ZENITH TWO pg 13 of 17... - Page 14 Installation Instructions Installation Instructions ATTACH HEXBOARD CLIMBER TO Z102a/b TIMBERS USING 4 X FM80 BRASS WOOD SCREWS ATTACH BARRIER PANELS to CLIMBER and FIREFIGHTERS POLE USING 12 X FM80 BRASS WOOD SCREWS REF: Z102 - ZENITH TWO pg 14 of 17...
- Page 15 Installation Instructions Attach the roof Parts (NORMAL ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: Z102 - ZENITH TWO pg 15 of 17...
- Page 16 Installation Instructions Attach the roof Parts (RUSTIC ROOF) Using ‘Brass Screws’ QTYx2 Both Sides REF: Z102 - ZENITH TWO pg 16 of 17...
-
Page 17: Additional Dimensions
Additional Dimensions 2.82m 4.15m REF: Z102 - ZENITH TWO pg 17 of 17...
