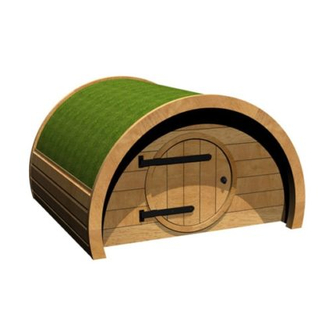

- Page 1 TIMBER PLAYHOUSE ARC Installation Instructions REF: TPH102 - TIMBER PLAYHOUSE ARC pg 1 of 19...
-
Page 2: Parts Required
PARTS required DOOR ASSEMBLY FRONT ASSEMBLY Includes LARGE HINGES Pre-assembled ‘DOUBLE FRAME’ and DOOR LATCH / HANDLE INNER FRONT ASSEMBLY REF: TPH102 - TIMBER PLAYHOUSE ARC pg 2 of 19... - Page 3 BACK ASSEMBLY (inc windows) Pre-assembled includes clear acrylic windows ‘DOUBLE FRAME’ HEX BOARD FLOOR back (3 x cut outs) front (2 x cut outs) (1 x FRONT FLOOR / 1 x BACK FLOOR) REF: TPH102 - TIMBER PLAYHOUSE ARC pg 3 of 19...
- Page 4 FRONT ASSEMBLY SIDE TRIM (ship lap) INNER TIMBERS (End Caps) (FM80 WOOD SCREWS - 304 required) (7.5x60 MULTIFIX SCREW - 34 required) x172 (7.5x40 MULTIFIX SCREW - 72 required) REF: TPH102 - TIMBER PLAYHOUSE ARC pg 4 of 19...
- Page 5 1220mm x 1900mm QTY - 2 1080mm x 1900mm QTY - 2 480mm x 1900mm ARTIFICIAL GRASS The roof will be covered using ARTIFICIAL GRASS - REQUIRED - 1900mm x 3440mm REF: TPH102 - TIMBER PLAYHOUSE ARC pg 5 of 19...
-
Page 6: Tools Required
TOOLS required REF: TPH102 - TIMBER PLAYHOUSE ARC pg 6 of 19... -
Page 7: Foundation Details
Foundation Details BACK FRONT REF: TPH102 - TIMBER PLAYHOUSE ARC pg 7 of 19... -
Page 8: Surfacing Details
= MINIMUM SPACE* = SURFACE AREA* *Minimum space & surfacing area The minimum area and surfacing area has been included - this is shown as a guide see individual INSTALLATION PLAN REF: TPH102 - TIMBER PLAYHOUSE ARC pg 8 of 19... - Page 9 (circled right) Position & Attach the INNER FRONT ASSEMBLY Using 4 x 7.5x40 MULTIFIX SCREWS & 2 x FM80 WOOD SCREWS NOTES: Use the FM80 WOOD SCREWS as shown left REF: TPH102 - TIMBER PLAYHOUSE ARC pg 9 of 19...
- Page 10 Attach the HEX BOARD FLOOR - Front Using 12 x 7.5x40 MULTIFIX SCREWS NOTES: Screw through the HEX BOARD into the FLOOR FRAME below COUNTERSINK THE HOLES and ensure the holes are UNIFORM REF: TPH102 - TIMBER PLAYHOUSE ARC pg 10 of 19...
- Page 11 Installation Instructions Attach the HEX BOARD FLOOR - BACK Using 12 x 7.5x40 MULTIFIX SCREWS Attach the T3 inner timbers to the INNER FRAME Using 16 x 7.5x60 MULTIFIX SCREWS REF: TPH102 - TIMBER PLAYHOUSE ARC pg 11 of 19...
- Page 12 Installation Instructions Attach the INNER TIMBERS as shown below SKEW screw into the INNER FRAMES Position the FRONT ASSEMBLY The FRONT ASSEMBLY is positioned 155mm away from the INNER FRONT assembly REF: TPH102 - TIMBER PLAYHOUSE ARC pg 12 of 19...
- Page 13 Attach the ADDITIONAL TIMBERS to the front assembly using 4 x FM80 WOOD SCREWS NOTES: Attach the additional timbers to the FRONT ASSEMBLY - these will need to be cut to size required and additional foundations dug REF: TPH102 - TIMBER PLAYHOUSE ARC pg 13 of 19...
- Page 14 Attach INNER ROOF R1 x 1 / R2 x 2 using 30 x 7.5x40 MULTIFIX SCREWS Attach the SECOND layer of PLY - OUTER ROOF Attach OUTER ROOF R1 x 2 / R3 x 2 using 30 x 7.5x40 MULTIFIX SCREWS REF: TPH102 - TIMBER PLAYHOUSE ARC pg 14 of 19...
- Page 15 DASHED line shows main timber support centres ENSURE: Screws are INTO the frames below - make sure that no screws are protruding from the ROOFS on the inside of the PLAYHOUSE REF: TPH102 - TIMBER PLAYHOUSE ARC pg 15 of 19...
- Page 16 LATCH POSITION (latch not shown below) NOTES: Hinges will be PRE-ATTACHED it is essential that the hinges are screws through the INNER FRONT SECTION and into the upright support (highlighted RIGHT) REF: TPH102 - TIMBER PLAYHOUSE ARC pg 16 of 19...
- Page 17 1900mm x 3440mm Attach the SIDE TRIMS (Shiplap) Using 24 x 7.5x40 MULTIFIX SCREWS (6 for each board) NOTES: Position each board and DRILL A PILOT HOLE before screwing to the frame REF: TPH102 - TIMBER PLAYHOUSE ARC pg 17 of 19...
- Page 18 SIDE TRIMS - Repeat for the opposite side Using 24 x 7.5x40 MULTIFIX SCREWS (6 for each board) NOTES: Position each board and DRILL A PILOT HOLE before screwing to the frame REF: TPH102 - TIMBER PLAYHOUSE ARC pg 18 of 19...
-
Page 19: Additional Dimensions
Additional Dimensions SITE NOTES: REF: TPH102 - TIMBER PLAYHOUSE ARC pg 19 of 19...
