Creative Play ADVENTURE TRAIL 10 Installation Instructions Manual

Hide thumbs Also See for ADVENTURE TRAIL 10:

Advertisement

Table of Contents

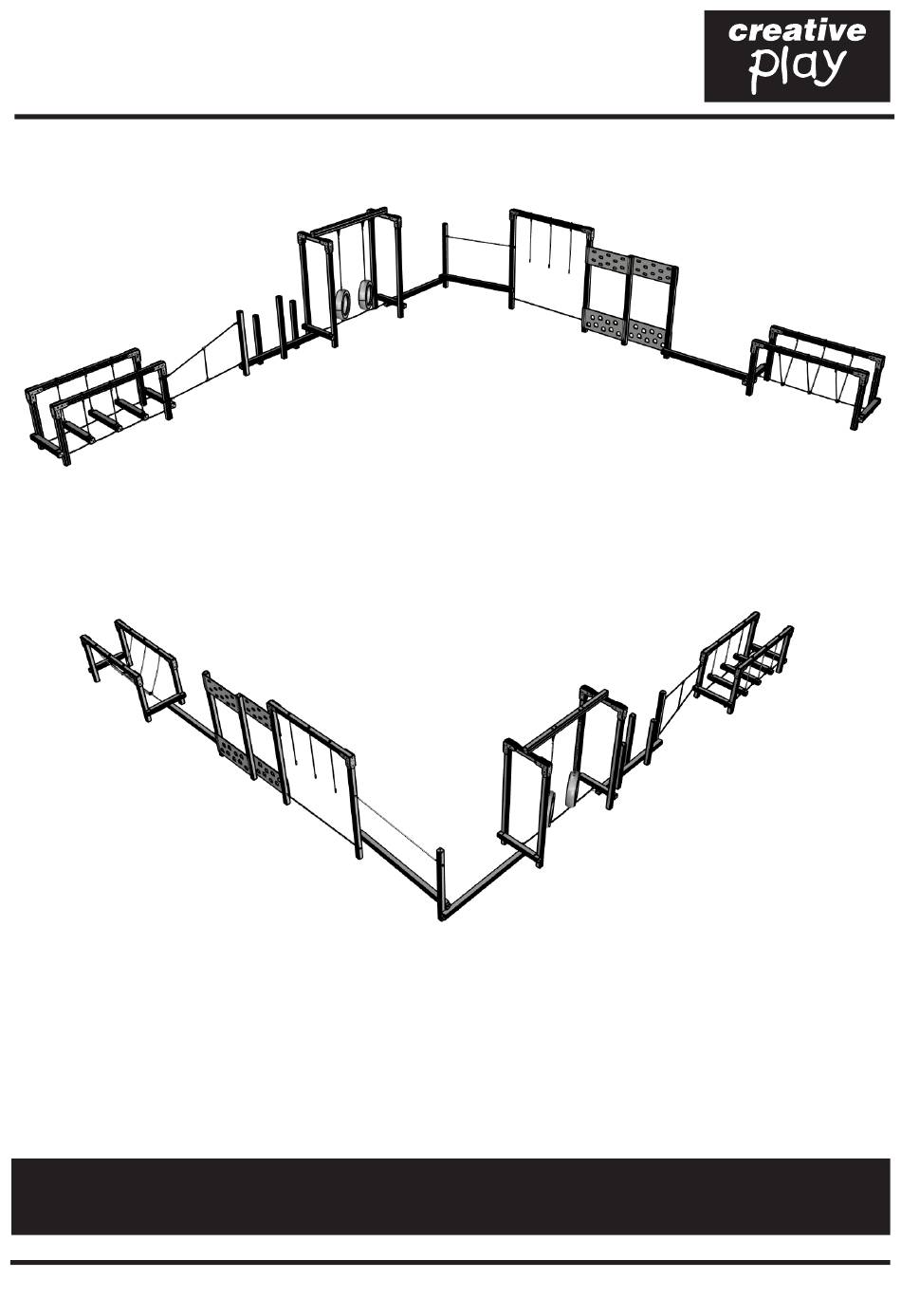

AT10-L - ADVENTURE TRAIL 10
Installation Instructions
INSTRUCTIONS SHOWN ARE FOR THE STANDARD AT10 - BUT THE
GROUNDPLAN HAS BEEN REVISED TO CREATE THE L-SHAPE LAYOUT
REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED
pg 1 of 21
23.05.22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVENTURE TRAIL 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Play ADVENTURE TRAIL 10

Summary of Contents for Creative Play ADVENTURE TRAIL 10

  • Page 1 AT10-L - ADVENTURE TRAIL 10 Installation Instructions INSTRUCTIONS SHOWN ARE FOR THE STANDARD AT10 - BUT THE GROUNDPLAN HAS BEEN REVISED TO CREATE THE L-SHAPE LAYOUT REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 1 of 21 23.05.22...
  • Page 2 AT - U9 2100 END CAP UPRIGHT TIMBER AT - U10 2100 END CAP UPRIGHT TIMBER AT - U11 1800 UPRIGHT TIMBER AT - U12 1800 UPRIGHT TIMBER REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 2 of 21 23.05.22...
  • Page 3 HORIZONTAL TIMBER HORIZONTAL TIMBER AT - H11 2010 END CAP END CAP (HEXA GRIP SLAT) HORIZONTAL TIMBER AT - H12 2100 PLAYTEC L’S PLAYTEC L’S (HEXA GRIP SLAT) REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 3 of 21 23.05.22...

  • Page 4: Parts Required

    PARTS REQUIRED CLIMBING PANELS (UPPER) CLIMBING PANELS (LOWER) ROPE BRIDGE SWINGING ROPES SWINGING ROPE CHAIN TRAVERSE ROPE 274.M12X200 656.M12 102003-01 - M12 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 4 of 21 23.05.22...
  • Page 5 PARTS REQUIRED 97.M8X80CSK M12 SOCKET NUT (50MM) 274.M12X220 CONSISTS OF SHACKLE / BOLT / NYLOC / CAP 349.742.D-SHACKLE ‘SET’ 274.M12X180 TYRE 625MM TYRE CHAIN (EYEBOLT) 740MM TYRE CHAIN REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 5 of 21 23.05.22...
  • Page 6 PARTS REQUIRED 656.M10 ROPE TRAVERSE (PRE-ASSEMBLED) LOG WALK (PRE-ASSEMBLED) REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 6 of 21 23.05.22...

  • Page 7: Foundation Details

    FOUNDATION DETAILS FOUNDATION - 400MM X 400MM X 750MM (150MM SOIL APPROX) REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 7 of 21 23.05.22...

  • Page 8: Surfacing Details

    SURFACING DETAILS REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 8 of 21 23.05.22...

  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS POSITION THE UPRIGHT TIMBERS FOLLOWING FOUNDATION DETAILS ATTACH TIMBER H1 USING 274.M12X200 / 656.M12 / 102003-01, SECURE HEXBOARD WITH M8X80MM WOOD SCREWS REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 9 of 21 23.05.22...
  • Page 10 USING M8X80MM WOOD SCREWS, TAKE CARE THAT SCREWS DO NOT ‘CROSS’ ATTACH TIMBER H3 USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H3 HEXBOARD SLAT WILL NOT BE ATTACHED UNTIL STEP 7 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 10 of 21 23.05.22...
  • Page 11 USING 274.M12X180 & 220 / 656.M12 / 102003-01 AND M8X80MM WOOD SCREWS 180 BOLT BOLT NOTES: ATTACH PANEL ON OPPOSITE FACE TO BEAM ONE LOWER PLAYTEC PANEL HAS HOLE DRILLED FOR BOLT (SEE CNC) 220 BOLT REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 11 of 21 23.05.22...
  • Page 12 ATTACH REMAINING 3 PLAYTEC CLIMBING PANELS USING 8X80MM WOOD SCREWS NOTES: ENSURE SECOND SET OF PANELS ARE ON OPPOSITE FACE TO FIRST NOTES: THIS PANEL IS ALREADY ATTACHED AS PER STEP 6 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 12 of 21 23.05.22...
  • Page 13 INSTALLATION INSTRUCTIONS ATTACH TIMBER H5 USING PLAYTEC L’S USING 8X80MM WOOD SCREWS ATTACH SWINGING ROPES TO TIMBER H5 USING 656.M12 / 102003-01 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 13 of 21 23.05.22...
  • Page 14 ATTACH SWINGING ROPE CHAIN USING M12 X 50MM SOCKET NUT, D - SHACKLE AND EYEBOLT SHOULD BE PRE-ATTACHED TO CHAIN ATTACH TIMBER H6 USING 274.M12X200 / 656.M12 / 102003-01 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 14 of 21 23.05.22...
  • Page 15 ATTACH TRAVERSE ROPE ABOVER TIMBER H6 USING 656.M12 / 102003-01 ATTACH H8 TIMBERS USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H8 HEXBOARD SLATS WILL NOT BE ATTACHED UNTIL STEP 21 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 15 of 21 23.05.22...
  • Page 16 INSTALLATION INSTRUCTIONS ATTACH TIMBER H7 USING 274.M12X180 & 200 / 656.M12 / 102003-01 ATTACH H9 TIMBERS USING PLAYTEC L’S USING 8X80MM WOOD SCREWS REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 16 of 21 23.05.22...
  • Page 17 INSTALLATION INSTRUCTIONS ATTACH TIMBER H10 USING 274.M12X230 / 656.M12 / 102003-01 230 BOLT ATTACH TYRES USING D - SHACKLE SETS AS SHOWN REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 17 of 21 23.05.22...
  • Page 18 ENSURE CHAIN IS POSITION ON INSIDE OF D - RING REMOVE LINKS IF NECESSARY ATTACH TIMBER H11 TO WEAVING POST UPRIGHTS USING 274.M12X180 & 200 / 656.M12 / 102003-01 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 18 of 21 23.05.22...
  • Page 19 INSTALLATION INSTRUCTIONS ATTACH H8 HEXBOARD SLATS USING 8X80MM WOOD SCREWS ATTACH ROPE TRAVERSE TO TIMBERS U10 & U11 AS SHOWN USING 656.M10 / 102003-01 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 19 of 21 23.05.22...
  • Page 20 INSTALLATION INSTRUCTIONS ATTACH LOG WALK USING 656.M12 / 102003-01 / 274.M12X200 REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 20 of 21 23.05.22...

  • Page 21: Additional Dimensions

    ADDITIONAL DIMENSIONS REF: AT10-L - ADVENTURE TRAIL 10 - L-SHAPED pg 21 of 21 23.05.22...
