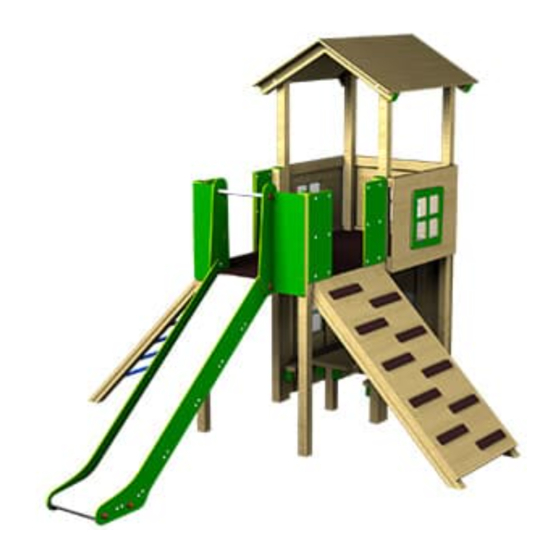

- Page 1 THETFORD Installation Instructions REF: WO103 - THETFORD pg 1 of 20...
-
Page 2: Parts Required
PARTS required (RAMP PANEL) (SLIDE SIDE PANEL) (FLOOR PANEL) (RAMP BAR PANEL) (ROOF PANEL) REF: WO103 - THETFORD pg 2 of 20... - Page 3 PARTS required (LEFT RAMP PANEL) (RIGHT RAMP PANEL) (LEFT TOP SIDE PANEL) (RIGHT TOP SIDE PANEL) (TOP BACK PANEL) (BOTTOM BACK PANEL) (BOTTOM SIDE PANEL) REF: WO103 - THETFORD pg 3 of 20...
- Page 4 (FM80 ‘ Brass screws’) (M12 x 170 SQUARE CUP HEX BOLTS) TIMBERS required WO103a WO103g (90x90) (90x90) WO103b WO103i (90x90) (90x90) WO103c WO103aa (90x90) (218x17,5) WO103d WO103aj (90x90) (218x43) WO103e WO103ah (90x90) (218x43) REF: WO103 - THETFORD pg 4 of 20...
-
Page 5: Tools Required
TOOLS required REF: WO103 - THETFORD pg 5 of 20... -
Page 6: Foundation Details
Foundation Details 1.5m Slide Picnic Table FIG.1 600 Concrete + 150 Soil 450 Concrete + 150 Soil REF: WO103 - THETFORD pg 6 of 20... -
Page 7: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: WO103 - THETFORD pg 7 of 20... -
Page 8: Installation Instructions
Counterbore is Faced OUTSIDE WO103a WO103d WO103b WO103a Attach the PRE-ATTACHED FLOOR to the timbers WO103a/ b/c/d/e Using (4x 170mm) - (2x 290mm) SQUARE CUP HEX BOLTS/ 6x NYLOCS / 2x RED CAPS REF: WO103 - THETFORD pg 8 of 20... - Page 9 Using (2x 170mm) - (2x 200mm) SQUARE CUP HEX BOLTS/ 4x NYLOCS / 2x RED CAPS WO103e WO103c WO103d WO103b Attach the timbers WO103ai to the timbers WO103i Using 6x “FM80 Brass Screws” WO103ai WO103i WO103i REF: WO103 - THETFORD pg 9 of 20...
- Page 10 Use 4 Brass Screws in each slat WO103d Ground Level Attach the BOTTOM SIDE and WO103aa to the timbers WO103b/d Using 24x “FM80 Brass Screws” (2x each Slat) WO103b WO103d ENSURE: Use 2 Brass Screws in each slat REF: WO103 - THETFORD pg 10 of 20...
- Page 11 Using (2x 170mm) - (2x 250mm) SQUARE CUP HEX BOLTS/ 2x Socket Nut WO103i WO103i WO103f WO103f Attach the Timbers WO103i to the Timbers WO103f Using 6x “FM80 Brass Screws” WO103ah WO103f WO103f REF: WO103 - THETFORD pg 11 of 20...
- Page 12 Installation Instructions Install Picnic Table Ground Level Install Side covers WO103ah/aj Using 16x “FM80 Brass Screws” WO103ah WO103aj WO103aj ENSURE: Use 2 Brass Screws in each slat /upright REF: WO103 - THETFORD pg 12 of 20...
- Page 13 Installation Instructions Attach Slide Panel Using 8x “FM80 Brass Screws” Slide Panel Attach BAR RAMP to WO103aj Using 4x “FM40 Brass Screws” 4x “FM80 Brass Screws” REF: WO103 - THETFORD pg 13 of 20...
- Page 14 Installation Instructions Attach RAMP to WO103aj Using 4x “FM40 Brass Screws” 4x “FM80 Brass Screws” REF: WO103 - THETFORD pg 14 of 20...
- Page 15 Installation Instructions Attach the PRE-ASSEMBLED HALF ROOFS Using 4x 200mm SQUARE CUP HEX BOLTS/4x NUTS / 4x RED CAPS and 8x ‘FM80 Brass Screws’ Half roof part Half roof part WO103g WO103g WO103g REF: WO103 - THETFORD pg 15 of 20...
- Page 16 Attach TOP BACK PANEL to the TIMBERS WO103d/e Using 14‘FM 80 Brass Screws’ WO103d WO103e Just 1 Brass Screw (Each Side) in this Slat ENSURE: Use 4 Brass Screws in each slat REF: WO103 - THETFORD pg 16 of 20...
- Page 17 Just 1 Brass Screw (Each Side) in this Slat ENSURE: Use 4 Brass Screws in each slat Just 1 Brass Screw (Each Side) in this Slat ENSURE: Use 4 Brass Screws in each slat REF: WO103 - THETFORD pg 17 of 20...
- Page 18 Installation Instructions Attach RAMP PANELS to the TIMBERS WO103a and TOP SIDE PANELS Using 18‘FM 80 Brass Screws’ and 2x “5B - TORKTAINER” 2x “N4 - TORKTAINER” REF: WO103 - THETFORD pg 18 of 20...
- Page 19 Installation Instructions Attach the SLIDE TO THE PLATFORM Using 2x “FM40 Brass Screws” and Slide Fittings REF: WO103 - THETFORD pg 19 of 20...
-
Page 20: Additional Dimensions
Additional Dimensions REF: WO103 - THETFORD pg 20 of 20...
