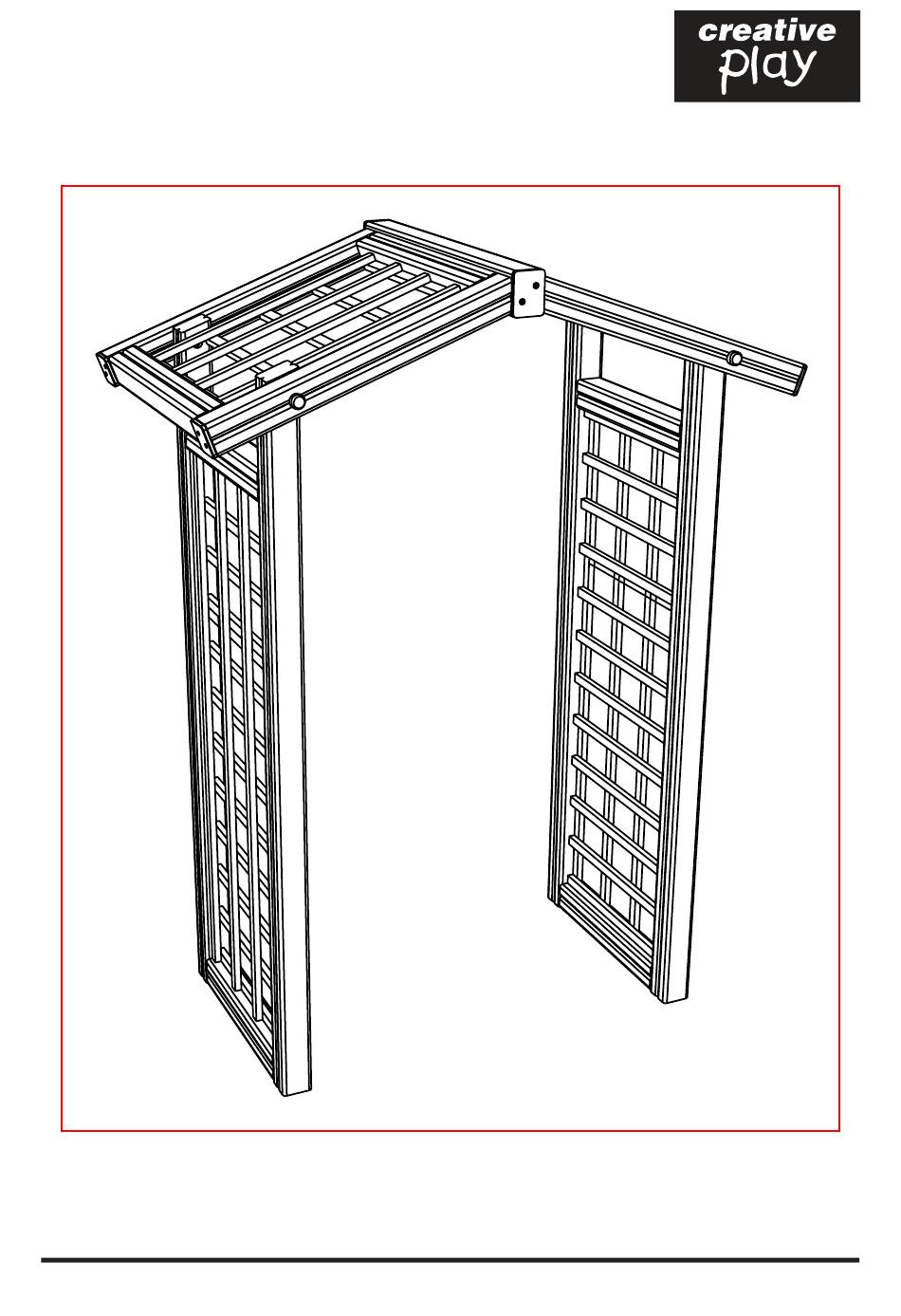

- Page 1 TRELLIS ARCHWAY Installation Instructions REF: SG006 - TRELLIS ARCHWAY pg 1 of 7...
- Page 2 (SMALL PANEL SUPPORTS / ROOF) (LARGE TRELLIS PANEL) (SMALL TRELLIS PANEL) (SG006f - RIDGE BEAM) (M12 x 180 Square Cup bolt) (FM80 ‘WOOD SCREWS’) (M12 ‘NYLOC’) 6 required (4.5x63MM DECKTITE SCREW) 48 required (end caps) REF: SG006 - TRELLIS ARCHWAY pg 2 of 7...
- Page 3 TOOLS required REF: SG006 - TRELLIS ARCHWAY pg 3 of 7...
- Page 4 Foundation Details 1290 FINISHED GROUND LEVEL TIMBER SUPPORT POST CONCRETE REF: SG006 - TRELLIS ARCHWAY pg 4 of 7...
- Page 5 (1200mm between SUPPORTS) Attach the SMALL PANEL SUPPORTS & RIDGE BEAM Using 4 x M12x200 CUP SQUARE BOLTS / M12 NYLOCS / COVERED END CAPS & 6 x FM80 WOOD SCREWS REF: SG006 - TRELLIS ARCHWAY pg 5 of 7...
- Page 6 Installation Instructions Attach the 2 x SMALL TRELLIS PANELS Using 12 x 4.5x63MM DECKTITE SCREW (DECKING SCREW) Attach the 2 x LARGE TRELLIS PANELS Using 36 x 4.5x63MM DECKTITE SCREW (DECKING SCREW) REF: SG006 - TRELLIS ARCHWAY pg 6 of 7...
- Page 7 Additional Dimensions 1793 1200 REF: SG006 - TRELLIS ARCHWAY pg 7 of 7...
