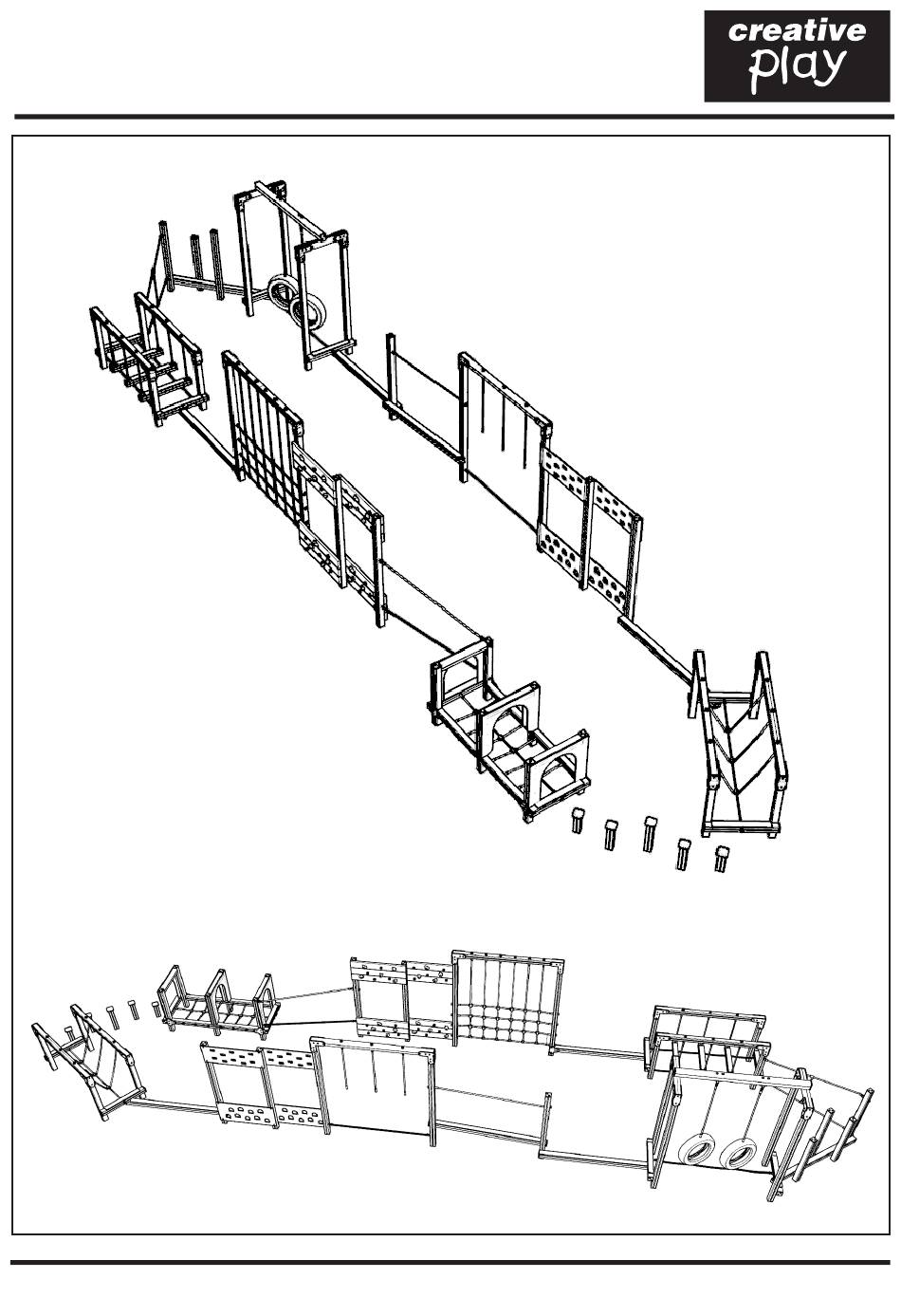

AT16 - ADVENTURE TRAIL 16
Installation Instructions
REF: AT16 - ADVENTURE TRAIL 16
pg 1 of 29
15.04.2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADVENTURE TRAIL 16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Play ADVENTURE TRAIL 16

Summary of Contents for Creative Play ADVENTURE TRAIL 16

  • Page 1 AT16 - ADVENTURE TRAIL 16 Installation Instructions REF: AT16 - ADVENTURE TRAIL 16 pg 1 of 29 15.04.2019...

  • Page 2: Parts Required

    UPRIGHT TIMBER AT - U12 1800 UPRIGHT TIMBER AT - U13 3000 UPRIGHT TIMBER AT - U14 2715 END CAP UPRIGHT TIMBER AT - U15 2715 END CAP UPRIGHT TIMBER REF: AT16 - ADVENTURE TRAIL 16 pg 2 of 29 15.04.2019...
  • Page 3 HORIZONTAL TIMBER AT - H16 END CAP END CAP (HEXA GRIP SLAT) AT - H17 1920 PLAYTEC T HORIZONTAL TIMBER AT - H18 2100 PLAYTEC L’S PLAYTEC L’S HORIZONTAL TIMBER REF: AT16 - ADVENTURE TRAIL 16 pg 3 of 29 15.04.2019...
  • Page 4 PARTS REQUIRED CLIMBING PANELS (UPPER) CLIMBING PANELS (LOWER) ROPE BRIDGE SWINGING ROPES SWINGING ROPE CHAIN TRAVERSE ROPE 1 656.M10 274.M12X200 656.M12 102003-01 - M12 REF: AT16 - ADVENTURE TRAIL 16 pg 4 of 29 15.04.2019...
  • Page 5 PARTS REQUIRED 97.M8X80CSK M12 SOCKET NUT (50MM) 274.M12X220 CONSISTS OF SHACKLE / BOLT / NYLOC / CAP 349.742.D-SHACKLE ‘SET’ 274.M12X180 TYRE 660MM TYRE CHAIN (EYEBOLT) 780MM TYRE CHAIN REF: AT16 - ADVENTURE TRAIL 16 pg 5 of 29 15.04.2019...
  • Page 6 PARTS REQUIRED ROPE TRAVERSE 2 PLAYTEC ‘T’ SETS TUNNEL NET LOG WALK (PRE-ASSEMBLED) STEPPING LOG (UA4) STEPPING LOG (UA5) STEPPING LOG (UA6) REF: AT16 - ADVENTURE TRAIL 16 pg 6 of 29 15.04.2019...
  • Page 7 274.M12X110 274.M12X230 REF: AT16 - ADVENTURE TRAIL 16 pg 7 of 29 15.04.2019...
  • Page 8 (UPPER) (LOWER) x1 SET TRAVERSE ROPE 3 TRAVERSE ROPE 3 CHAIN PLAYTEC UNDER BRACKET PRE-ASSEMBLED TUNNEL PRE-ASSEMBLED TUNNEL PRE-ASSEMBLED TUNNEL PANEL PANEL - DOUBLE SIDED PANEL INC ‘CHAIN HOLE’ REF: AT16 - ADVENTURE TRAIL 16 pg 8 of 29 15.04.2019...

  • Page 9: Foundation Details

    FOUNDATION DETAILS FOUNDATION DETAILS REF: AT16 - ADVENTURE TRAIL 16 pg 9 of 29 15.04.2019...
  • Page 10 FOUNDATION DETAILS REF: AT16 - ADVENTURE TRAIL 16 pg 10 of 29 15.04.2019...

  • Page 11: Surfacing Details

    SURFACING DETAILS = MINIMUM SPACE = OVERALL AREA REF: AT16 - ADVENTURE TRAIL 16 pg 11 of 29 15.04.2019...

  • Page 12: Installation Instructions

    INSTALLATION INSTRUCTIONS POSITION THE UPRIGHT TIMBERS FOLLOWING FOUNDATION DETAILS UA1b ATTACH TIMBER H1 USING 274.M12X200 / 656.M12 / 102003-01, SECURE HEXBOARD WITH M8X80MM WOOD SCREWS REF: AT16 - ADVENTURE TRAIL 16 pg 12 of 29 15.04.2019...
  • Page 13 USING M8X80MM WOOD SCREWS, TAKE CARE THAT SCREWS DO NOT ‘CROSS’ ATTACH TIMBER H3 USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H3 HEXBOARD SLAT WILL NOT BE ATTACHED UNTIL STEP 7 REF: AT16 - ADVENTURE TRAIL 16 pg 13 of 29 15.04.2019...
  • Page 14 USING 274.M12X180 & 220 / 656.M12 / 102003-01 AND M8X80MM WOOD SCREWS 180 BOLT BOLT NOTES: ATTACH PANEL ON OPPOSITE FACE TO BEAM ONE LOWER PLAYTEC PANEL HAS HOLE DRILLED FOR BOLT (SEE CNC) 220 BOLT REF: AT16 - ADVENTURE TRAIL 16 pg 14 of 29 15.04.2019...
  • Page 15 ATTACH REMAINING 3 PLAYTEC CLIMBING PANELS USING 8X80MM WOOD SCREWS NOTES: ENSURE SECOND SET OF PANELS ARE ON OPPOSITE FACE TO FIRST NOTES: THIS PANEL IS ALREADY ATTACHED AS PER STEP 6 REF: AT16 - ADVENTURE TRAIL 16 pg 15 of 29 15.04.2019...
  • Page 16 INSTALLATION INSTRUCTIONS ATTACH TIMBER H5 USING PLAYTEC L’S USING 8X80MM WOOD SCREWS ATTACH SWINGING ROPES TO TIMBER H5 USING 656.M12 / 102003-01 REF: AT16 - ADVENTURE TRAIL 16 pg 16 of 29 15.04.2019...
  • Page 17 ATTACH SWINGING ROPE CHAIN USING M12 X 50MM SOCKET NUT, D - SHACKLE AND EYEBOLT SHOULD BE PRE-ATTACHED TO CHAIN ATTACH TIMBER H6 USING 274.M12X200 / 656.M12 / 102003-01 REF: AT16 - ADVENTURE TRAIL 16 pg 17 of 29 15.04.2019...
  • Page 18 ATTACH TRAVERSE ROPE ABOVER TIMBER H6 USING 656.M12 / 102003-01 ATTACH H8 TIMBERS USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H8 HEXBOARD SLATS WILL NOT BE ATTACHED UNTIL STEP 21 REF: AT16 - ADVENTURE TRAIL 16 pg 18 of 29 15.04.2019...
  • Page 19 INSTALLATION INSTRUCTIONS ATTACH TIMBER H7 USING 274.M12X180 & 200 / 656.M12 / 102003-01 ATTACH H9 TIMBERS USING PLAYTEC L’S USING 8X80MM WOOD SCREWS REF: AT16 - ADVENTURE TRAIL 16 pg 19 of 29 15.04.2019...
  • Page 20 INSTALLATION INSTRUCTIONS ATTACH TIMBER H10 USING 274.M12X230 / 656.M12 / 102003-01 230 BOLT ATTACH TYRES USING D - SHACKLE SETS AS SHOWN REF: AT16 - ADVENTURE TRAIL 16 pg 20 of 29 15.04.2019...
  • Page 21 ENSURE CHAIN IS POSITION ON INSIDE OF D - RING REMOVE LINKS IF NECESSARY ATTACH TIMBER H11 TO WEAVING POST UPRIGHTS USING 274.M12X180 & 200 / 656.M12 / 102003-01 REF: AT16 - ADVENTURE TRAIL 16 pg 21 of 29 15.04.2019...
  • Page 22 INSTALLATION INSTRUCTIONS ATTACH H8 HEXBOARD SLATS USING 8X80MM WOOD SCREWS ATTACH ROPE TRAVERSE TO TIMBERS U10 & U11 AS SHOWN USING 656.M10 / 102003-01 REF: AT16 - ADVENTURE TRAIL 16 pg 22 of 29 15.04.2019...
  • Page 23 DO NOT ATTACH H13a LOOSE HEX BOARD UNTIL STEP H13a ATTACH H16 TIMBER USING 274.M12X180 / 656.M12 / 102003-01 NOTES: ENSURE THE PRE-ASSEMBLED PANEL CIRCLED ABOVE INC THE LARGER ‘CHAIN HOLE’ REF: AT16 - ADVENTURE TRAIL 16 pg 23 of 29 15.04.2019...
  • Page 24 USING PLAYTEC L’S / M8X80MM WOOD SCREWS / 274.M12X200 / 656.M12 / 102003-01 NOTES: ATTACH PLAYTEC T’S ON INSIDE AND OUTSIDE OF TUNNEL ATTACH TUNNEL NET USING 656.M12 / 102003-01 REF: AT16 - ADVENTURE TRAIL 16 pg 24 of 29 15.04.2019...
  • Page 25 INSTALLATION INSTRUCTIONS ATTACH TIMBER H17 USING PLAYTEC L’S / M8X80MM WOOD SCREWS / 274.M12X180 / 656.M12 / 102003-01 H13a ATTACH H13a TIMBER HEXBOARD SLATS USING M8X80MM WOOD SCREWS H13a REF: AT16 - ADVENTURE TRAIL 16 pg 25 of 29 15.04.2019...
  • Page 26 INSTALLATION INSTRUCTIONS ATTACH TIMBER H18 USING M8X80MM WOOD SCREWS ATTACH CARGO NET USING PLAYTEC L’S / M8X80MM WOOD SCREWS / 656.M12 / 102003-01 REF: AT16 - ADVENTURE TRAIL 16 pg 26 of 29 15.04.2019...
  • Page 27 ATTACH TIMBER CLIMBING PANELS USING M8X80MM WOOD SCREWS, ENSURE SCREWS DO NOT “CROSS” NOTES: ENSURE PANELS ARE ATTACHED ON OPPOSITE SIDES AS SHOWN ATTACH TRAVERSE ROPE 3 USING 656.M10 / 102003-01 UA1b REF: AT16 - ADVENTURE TRAIL 16 pg 27 of 29 15.04.2019...
  • Page 28 INSTALLATION INSTRUCTIONS ATTACH TRAVERSE ROPE CHAIN USING M12 X 50MM SOCKET NUT ON EYEBOLT CHAINS ATTACH H17 UNDER BRACKETS USING M8X80MM WOOD SCREWS REF: AT16 - ADVENTURE TRAIL 16 pg 28 of 29 15.04.2019...

  • Page 29: Additional Dimensions

    ADDITIONAL DIMENSIONS REF: AT16 - ADVENTURE TRAIL 16 pg 29 of 29 15.04.2019...
