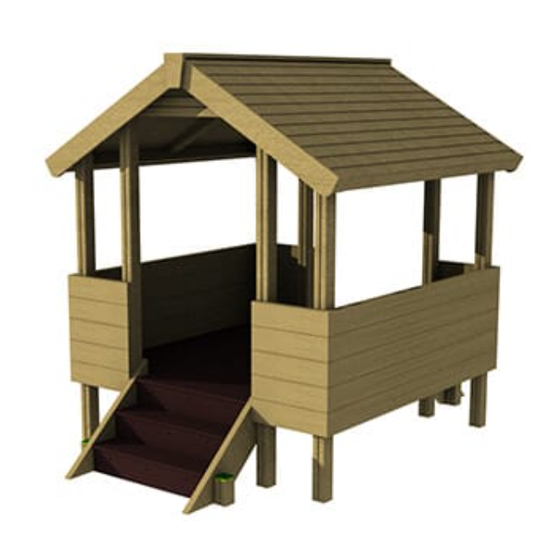

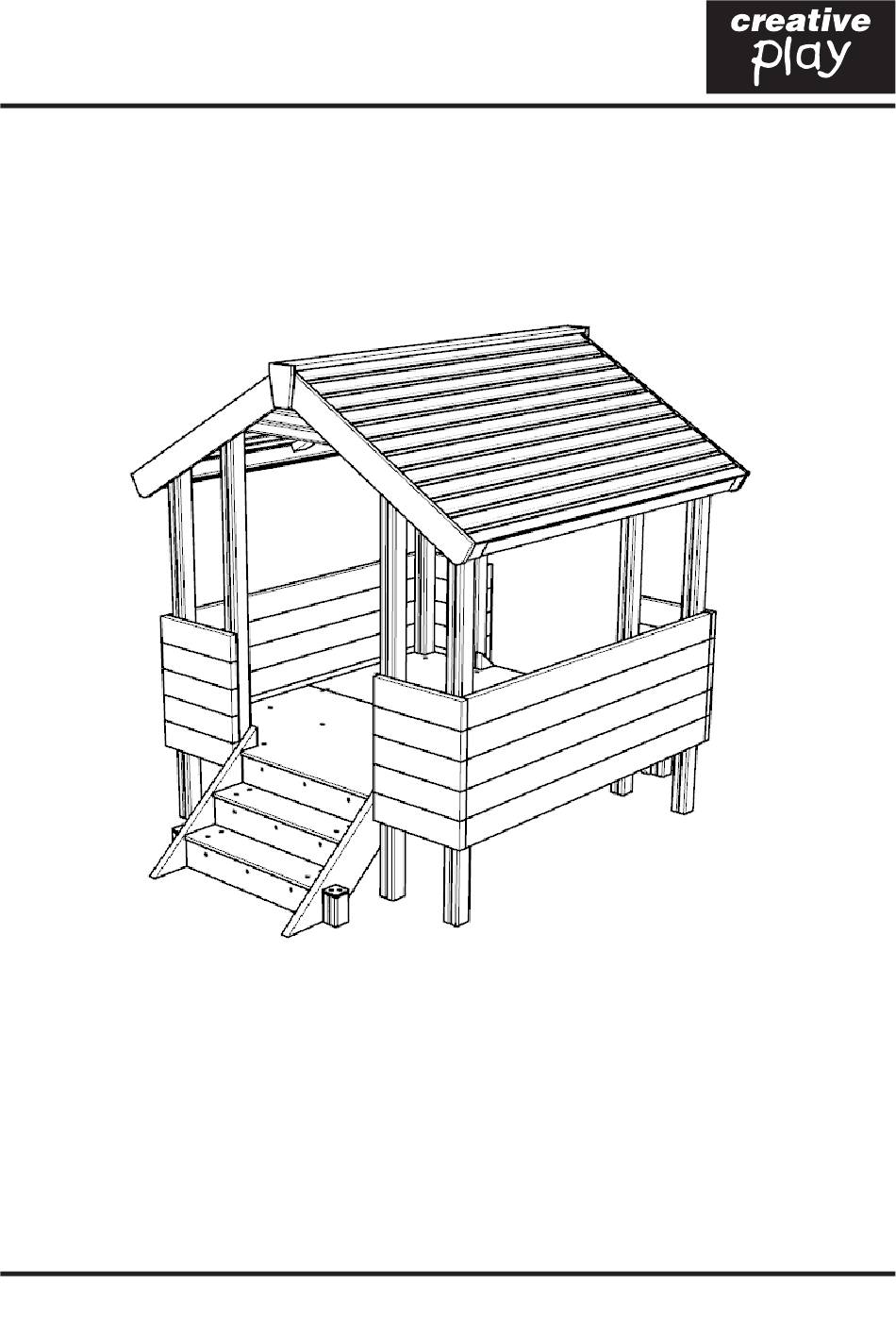

- Page 1 TPH110 - TIMBER PLAYHOUSE (RAISED) Installation Instructions REF: TPH110 pg 1 of 14 18.06.2019...
- Page 2 TPH110 - TIMBER PLAYHOUSE (RAISED) Installation Instructions TPH110 - U2L TPH110 - U1L TPH110 - U2R TPH110 - U1R TPH110 - U1R TPH110 - U1L TPH110 - U2L TPH110 - U2R UPRIGHT TIMBERS TPH110 - H1 TPH110 - H2 HORIZONTAL TIMBERS REF: TPH110 pg 2 of 14 18.06.2019...
- Page 3 TPH110 - TIMBER PLAYHOUSE (RAISED) Installation Instructions = ROOF TIMBERS = ROOF TRIM ROOF TIMBERS TPH110 - S2 TPH110 - S3 SLAT/CLADDING TIMBERS REF: TPH110 pg 3 of 14 18.06.2019...
-
Page 4: Parts Required
PARTS REQUIRED PARTS REQUIRED ROOF PRE-ASSEMBLED PANELS STAIR ASSEMBLY x128 97.M8X80CSK HEX FLOOR PANEL 97.M6X180CSK 97.M8X120CSK 274.M12X180 656.M12 102003-01 - M12 REF: TPH110 pg 4 of 14 18.06.2019... -
Page 5: Foundation Details
FOUNDATION DETAILS POST CONCRETE SOIL REF: TPH110 pg 5 of 14 18.06.2019... -
Page 6: Surfacing Details
SURFACING DETAILS = MINIMUM SPACE = SURFACE AREA REF: TPH110 pg 6 of 14 18.06.2019... - Page 7 = OUTWARD TPH110 - U1L TPH110 - U2R TPH110 - U1R TPH110 - U1R TPH110 - U1L TPH110 - U2L TPH110 - U2R BOLT H2 TIMBERS TO UPRIGHTS USING 274.M12X180 / 656.M12 / 102003-01-M12 NOTES: ENSURE CUP SQUARE SECTION SITS IN THE...
- Page 8 INSTALLATION INSTRUCTIONS SLOT H1 TIMBERS INTO H2 HALF LAP CUT OUTS TO BE SCREWED TOGETHER WHEN HEXA GRIP IS ATTACHED ATTACH HEXA GRIP FLOOR PANELS USING M8X80MM WOOD SCREWS REF: TPH110 pg 8 of 14 18.06.2019...
- Page 9 SCREW THROUGH THE ROOF ASSEMBLY INTO RIDGE BEAM (120MM SCREWS) SCREW THROUGH UPRIGHTS INTO ROOF PANEL ASSEMBLY FROM INSIDE (180MM SCREWS) ENSURE 180MM SCREWS DO NOT GO ALL THE WAY THROUGH BOTH 90X90 TIMBERS PTO ... REF: TPH110 pg 9 of 14 18.06.2019...
- Page 10 IN FROM THE INSIDE OF THE PLAYHOUSE AS SHOWN ATTACH R2 TIMBERS USING M8X180MM WOOD SCREWS NOTES: ENSURE TIMBERS ARE SCREWED IN FROM THE INSIDE OF THE PLAYHOUSE - SCREW HEADS ON INSIDE REF: TPH110 pg 10 of 14 18.06.2019...
- Page 11 2. ATTACH RT3 TIMBER TO RIDGE BEAM (R1) (3 SCREWS) 3. ATTACH RT2 ‘COVERS’ TO RT1 TRIM & INTO ROOF ASSEMBLY (3 SCREWS) ENSURE SCREWS ARE UNIFORM/ INLINE AS SHOWN TO RIGHT ... REF: TPH110 pg 11 of 14 18.06.2019...
- Page 12 INSTALLATION INSTRUCTIONS ATTACH TPH110 - S2 TIMBERS TO UPRIGHTS SHOWN (U1L & U1R OUTER TIMBERS) USING M8X80MM WOOD SCREWS, 5 TIMBER SLATS PER SIDE, 4 SCREWS PER TIMBER TPH110 - U1L TPH110 - U1R NOTES: ENSURE S2 TIMBERS ARE FLUSH WITH...
- Page 13 INSTALLATION INSTRUCTIONS ATTACH TPH110 - US TIMBERS TO STAIR ASSEMBLY USING M8X180MM & M8X120MM WOOD SCREWS - TOP SCREW = 180MM SCREW, BOTTOM = 120MM SCREW 180MM SCREW 120MM SCREW SECURE THE STAIRS ASSEMBLIES INTO PLACE ON BOTH SIDES OF PLAYHOUSE...
-
Page 14: Additional Dimensions
ADDITIONAL DIMENSIONS REF: TPH110 pg 14 of 14 18.06.2019...
