Creative Play ADVENTURE TRAIL 12 Installation Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AT12 - ADVENTURE TRAIL 12
Installation Instructions
REF: AT12 - ADVENTURE TRAIL 12
pg 1 of 24
15.04.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVENTURE TRAIL 12 and is the answer not in the manual?

Questions and answers

Related Manuals for Creative Play ADVENTURE TRAIL 12

Summary of Contents for Creative Play ADVENTURE TRAIL 12

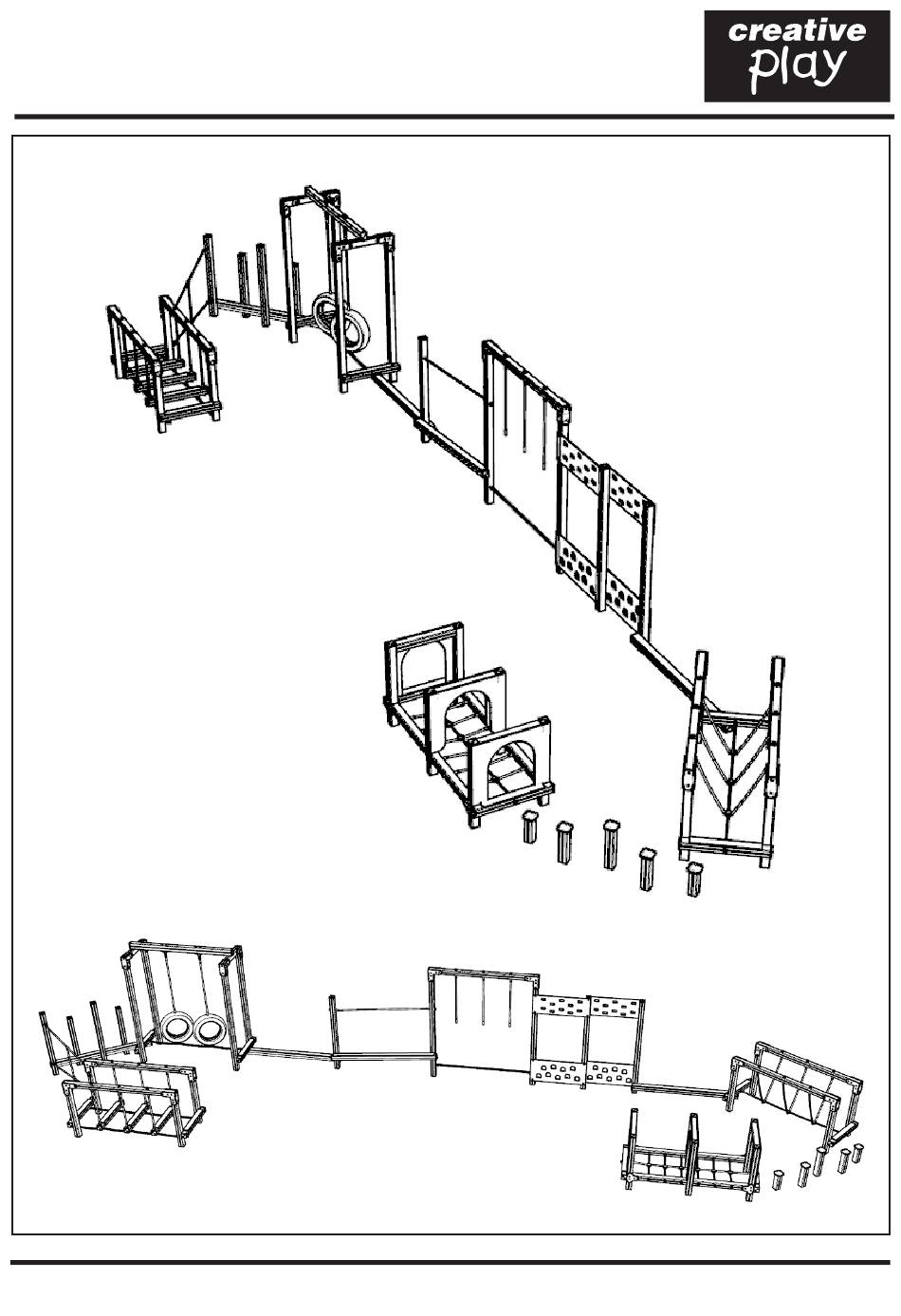

  • Page 1 AT12 - ADVENTURE TRAIL 12 Installation Instructions REF: AT12 - ADVENTURE TRAIL 12 pg 1 of 24 15.04.2019...

  • Page 2: Parts Required

    UPRIGHT TIMBER AT - U9 2100 END CAP UPRIGHT TIMBER AT - U10 2100 END CAP UPRIGHT TIMBER AT - U11 1800 UPRIGHT TIMBER AT - U12 1800 UPRIGHT TIMBER REF: AT12 - ADVENTURE TRAIL 12 pg 2 of 24 15.04.2019...
  • Page 3 AT - H12 2100 PLAYTEC L’S PLAYTEC L’S (HEXA GRIP SLAT) AT - H15 1920 HORIZONTAL TIMBER HORIZONTAL TIMBER AT - H16 END CAP END CAP (HEXA GRIP SLAT) REF: AT12 - ADVENTURE TRAIL 12 pg 3 of 24 15.04.2019...
  • Page 4 PARTS REQUIRED CLIMBING PANELS (UPPER) CLIMBING PANELS (LOWER) ROPE BRIDGE SWINGING ROPES SWINGING ROPE CHAIN TRAVERSE ROPE 274.M12X200 656.M12 102003-01 - M12 REF: AT12 - ADVENTURE TRAIL 12 pg 4 of 24 15.04.2019...
  • Page 5 PARTS REQUIRED x119 97.M8X80CSK M12 SOCKET NUT (50MM) 274.M12X220 CONSISTS OF SHACKLE / BOLT / NYLOC / CAP 349.742.D-SHACKLE ‘SET’ 274.M12X180 TYRE 660MM TYRE CHAIN (EYEBOLT) 780MM TYRE CHAIN REF: AT12 - ADVENTURE TRAIL 12 pg 5 of 24 15.04.2019...
  • Page 6 PARTS REQUIRED LOG WALK (PRE-ASSEMBLED) PLAYTEC ‘T’ SETS (90x90) LOG WALK (PRE-ASSEMBLED) TUNNEL ROPE STEPPING LOG (UA3) STEPPING LOG (UA4) STEPPING LOG (UA5) REF: AT12 - ADVENTURE TRAIL 12 pg 6 of 24 15.04.2019...
  • Page 7 PARTS REQUIRED PRE-ASSEMBLED TUNNEL PANEL 656.M10 274.M12X110 PRE-ASSEMBLED TUNNEL PANEL - DOUBLE SIDED REF: AT12 - ADVENTURE TRAIL 12 pg 7 of 24 15.04.2019...

  • Page 8: Foundation Details

    FOUNDATION DETAILS REF: AT12 - ADVENTURE TRAIL 12 pg 8 of 24 15.04.2019...
  • Page 9 FOUNDATION DETAILS REF: AT12 - ADVENTURE TRAIL 12 pg 9 of 24 15.04.2019...

  • Page 10: Surfacing Details

    SURFACING DETAILS = MINIMUM SPACE = OVERALL AREA REF: AT12 - ADVENTURE TRAIL 12 pg 10 of 24 15.04.2019...

  • Page 11: Installation Instructions

    INSTALLATION INSTRUCTIONS POSITION THE UPRIGHT TIMBERS FOLLOWING FOUNDATION DETAILS ATTACH TIMBER H1 USING 274.M12X200 / 656.M12 / 102003-01, SECURE HEXBOARD WITH M8X80MM WOOD SCREWS REF: AT12 - ADVENTURE TRAIL 12 pg 11 of 24 15.04.2019...
  • Page 12 USING M8X80MM WOOD SCREWS, TAKE CARE THAT SCREWS DO NOT ‘CROSS’ ATTACH TIMBER H3 USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H3 HEXBOARD SLAT WILL NOT BE ATTACHED UNTIL STEP 7 REF: AT12 - ADVENTURE TRAIL 12 pg 12 of 24 15.04.2019...
  • Page 13 USING 274.M12X180 & 220 / 656.M12 / 102003-01 AND M8X80MM WOOD SCREWS 180 BOLT BOLT NOTES: ATTACH PANEL ON OPPOSITE FACE TO BEAM ONE LOWER PLAYTEC PANEL HAS HOLE DRILLED FOR BOLT (SEE CNC) 220 BOLT REF: AT12 - ADVENTURE TRAIL 12 pg 13 of 24 15.04.2019...
  • Page 14 ATTACH REMAINING 3 PLAYTEC CLIMBING PANELS USING 8X80MM WOOD SCREWS NOTES: ENSURE SECOND SET OF PANELS ARE ON OPPOSITE FACE TO FIRST NOTES: THIS PANEL IS ALREADY ATTACHED AS PER STEP 6 REF: AT12 - ADVENTURE TRAIL 12 pg 14 of 24 15.04.2019...
  • Page 15 INSTALLATION INSTRUCTIONS ATTACH TIMBER H5 USING PLAYTEC L’S USING 8X80MM WOOD SCREWS ATTACH SWINGING ROPES TO TIMBER H5 USING 656.M12 / 102003-01 REF: AT12 - ADVENTURE TRAIL 12 pg 15 of 24 15.04.2019...
  • Page 16 ATTACH SWINGING ROPE CHAIN USING M12 X 50MM SOCKET NUT, D - SHACKLE AND EYEBOLT SHOULD BE PRE-ATTACHED TO CHAIN ATTACH TIMBER H6 USING 274.M12X200 / 656.M12 / 102003-01 REF: AT12 - ADVENTURE TRAIL 12 pg 16 of 24 15.04.2019...
  • Page 17 ATTACH TRAVERSE ROPE ABOVER TIMBER H6 USING 656.M12 / 102003-01 ATTACH H8 TIMBERS USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H8 HEXBOARD SLATS WILL NOT BE ATTACHED UNTIL STEP 21 REF: AT12 - ADVENTURE TRAIL 12 pg 17 of 24 15.04.2019...
  • Page 18 INSTALLATION INSTRUCTIONS ATTACH TIMBER H7 USING 274.M12X180 & 200 / 656.M12 / 102003-01 ATTACH H9 TIMBERS USING PLAYTEC L’S USING 8X80MM WOOD SCREWS REF: AT12 - ADVENTURE TRAIL 12 pg 18 of 24 15.04.2019...
  • Page 19 INSTALLATION INSTRUCTIONS ATTACH TIMBER H10 USING 274.M12X230 / 656.M12 / 102003-01 230 BOLT ATTACH TYRES USING D - SHACKLE SETS AS SHOWN REF: AT12 - ADVENTURE TRAIL 12 pg 19 of 24 15.04.2019...
  • Page 20 ENSURE CHAIN IS POSITION ON INSIDE OF D - RING REMOVE LINKS IF NECESSARY ATTACH TIMBER H11 TO WEAVING POST UPRIGHTS USING 274.M12X180 & 200 / 656.M12 / 102003-01 REF: AT12 - ADVENTURE TRAIL 12 pg 20 of 24 15.04.2019...
  • Page 21 INSTALLATION INSTRUCTIONS ATTACH H8 HEXBOARD SLATS USING 8X80MM WOOD SCREWS ATTACH ROPE TRAVERSE TO TIMBERS U10 & U11 AS SHOWN USING 656.M10 / 102003-01 REF: AT12 - ADVENTURE TRAIL 12 pg 21 of 24 15.04.2019...
  • Page 22 INSTALLATION INSTRUCTIONS ATTACH LOG WALK USING 656.M12 / 102003-01 / 274.M12X200 ATTACH H16 TIMBER USING 274.M12X180 / 656.M12 / 102003-01 REF: AT12 - ADVENTURE TRAIL 12 pg 22 of 24 15.04.2019...
  • Page 23 USING PLAYTEC T’S / M8X80MM WOOD SCREWS / 274.M12X110 / 656.M12 / 102003-01 NOTES: ATTACH PLAYTEC T’S ON INSIDE AND OUTSIDE OF TUNNEL ATTACH TUNNEL ROPE 656.M12 / 102003-01 REF: AT12 - ADVENTURE TRAIL 12 pg 23 of 24 15.04.2019...

  • Page 24: Additional Dimensions

    ADDITIONAL DIMENSIONS REF: AT12 - ADVENTURE TRAIL 12 pg 24 of 24 15.04.2019...
