Summary of Contents for Creative Play Land Ranger VOY112

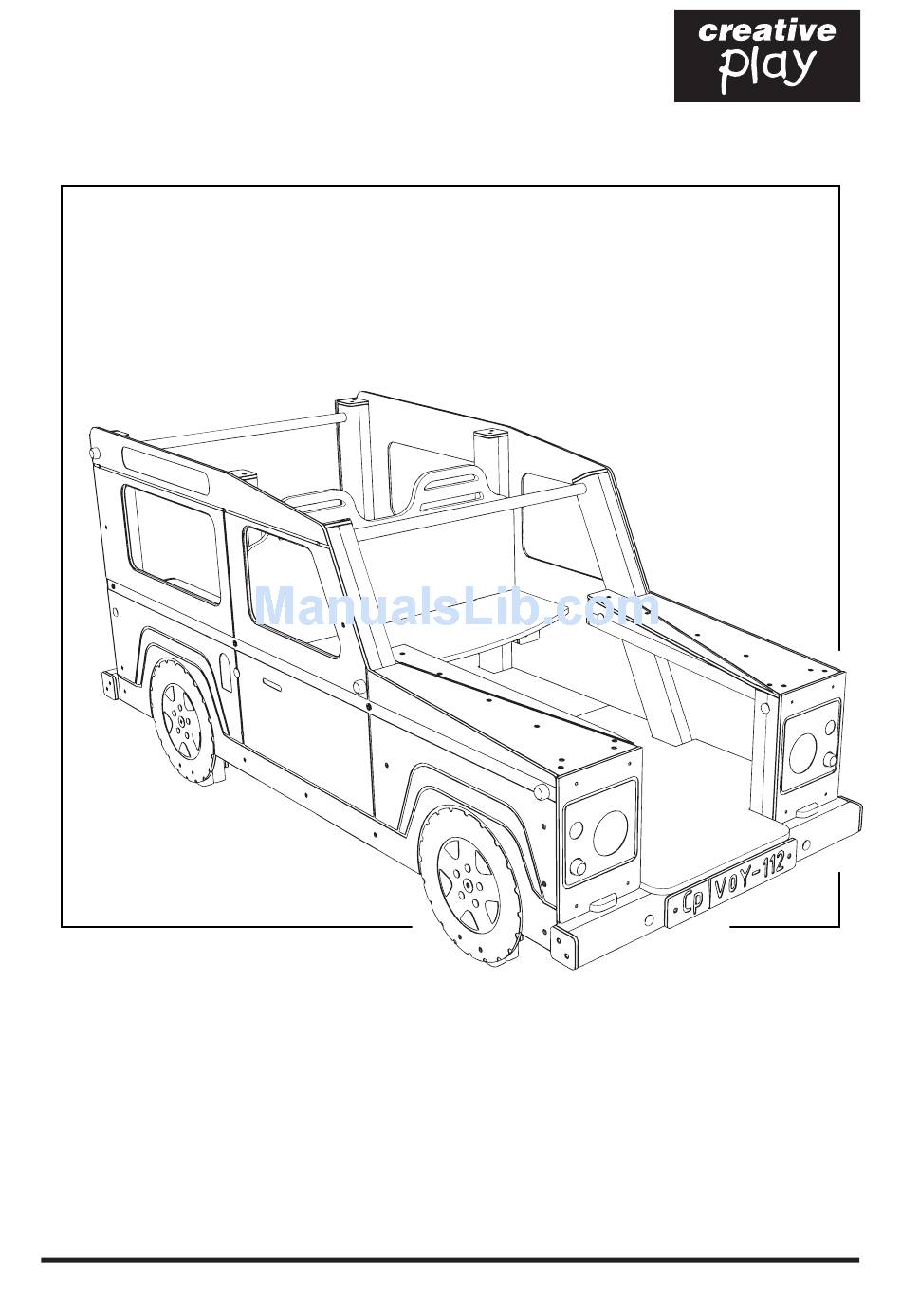

- Page 1 LAND RANGER Installation Instructions REF: VOY112 - LAND RANGER pg 1 of 11...
-
Page 2: Parts Required
PARTS required (Floor Structure) (LEFT Side) (RIGHT Side) (Galvanised Tube) (Thread Bar) (Legs) HEXBOARD required (Back Seat) (Back Floor) (Front Floor) (Seat) REF: VOY112 - LAND RANGER pg 2 of 11... -
Page 3: Tools Required
PLAYTEC required (FRONT LEFT) (TOP FRONT LEFT) (BACK LEFT) (FRONT RIGHT) (TOP FRONT RIGHT) (BACK RIGHT) TIMBERS required CODE TYPE SIZE QTY VOY112f 90x90 90 x 90 timber VOY112h 90x90 FIXINGS required (M12 x 290 Square Cup HEX bolt) (M12 x 210 Square Cup HEX bolt) x139 (end caps) (FM80 ‘Brass screws’) -
Page 4: Foundation Details
Foundation Details FIG.1 350 Concrete + 150 Soil REF: VOY112 - LAND RANGER pg 4 of 11... -
Page 5: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: VOY112 - LAND RANGER pg 5 of 11... - Page 6 Installation Instructions Attach PRE-ASSEMBLED LEGS to FLOOR STRUCTURE Using 20x FM80 ‘Brass Screws’ SIDE VIEW Attach PRE-ASSEMBLED SIDE PANELS FLOOR STRUCTURE Using 20x FM80 ‘Brass Screws’ / 4x NYLOCS / 4x Covered end cap / 2x Thread Bar @ 1140mm / 2x Galvanized tube @ 960mm THREAD BAR &...
- Page 7 Installation Instructions Attach FRONT and BACK HEAXBOARD FLOOR to FLOOR STRUCTURE Using 39 x FM80 ‘Brass Screws’ REF: VOY112 - LAND RANGER pg 7 of 11...
- Page 8 Installation Instructions Attach TIMBERS VOY112f/h to FLOOR STRUCTURE and Sides Using M12 (2x200mm), (2x210mm), (2x290mm) square cup bolt / 6x NYLOCS / 6x Covered end cap Each Side M12 @ 210mm square cup bolt M12 @ 290mm square cup bolt M12 @ 200mm square cup bolt Attach FRONT PLAYTEC to the STRUCTURE Using 10 x FM80 ‘Brass Screws’/ 2x Covered end cap...
- Page 9 Installation Instructions Attach TOP FRONT PLAYTEC to the STRUCTURE Using 16 x FM80 ‘Brass Screws’ Attach the SEAT to the STRUCTURE Using 14 x FM80 ‘Brass Screws’ REF: VOY112 - LAND RANGER pg 9 of 11...
- Page 10 Installation Instructions Attach BACK PLAYTEC to the STRUCTURE Using 14 x FM80 ‘Brass Screws’ / 4x Covered end cap Each Side Attach BACK SEAT to the STRUCTURE Using 6 x FM80 ‘Brass Screws’ REF: VOY112 - LAND RANGER pg 10 of 11...
-
Page 11: Additional Dimensions
Additional Dimensions REF: VOY112 - LAND RANGER pg 11 of 11...
