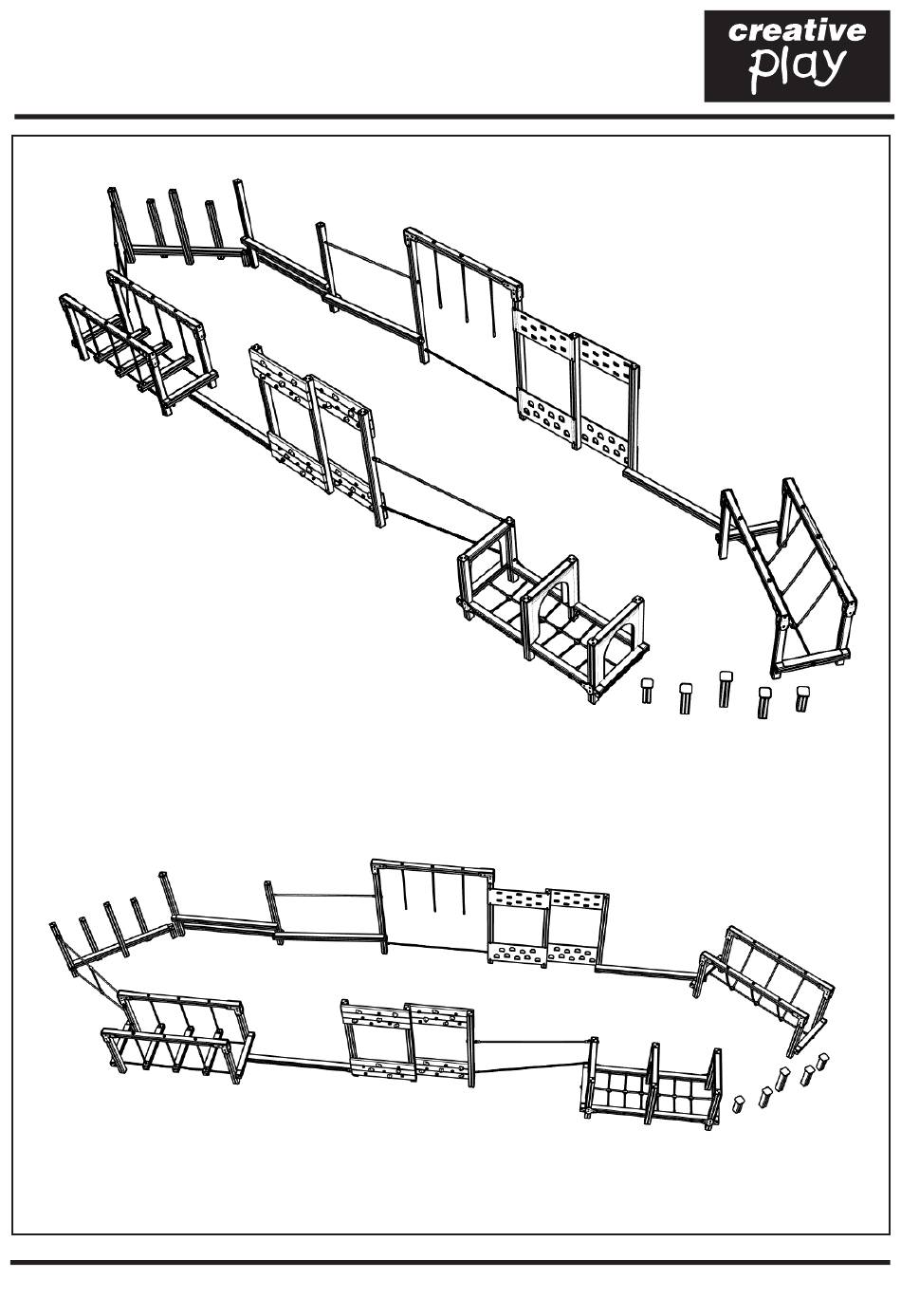

AT14 - ADVENTURE TRAIL 14
Installation Instructions
REF: AT14 - ADVENTURE TRAIL 14
pg 1 of 29
05.04.2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADVENTURE TRAIL 14 and is the answer not in the manual?

Questions and answers

Related Manuals for Creative Play ADVENTURE TRAIL 14

Summary of Contents for Creative Play ADVENTURE TRAIL 14

  • Page 1 AT14 - ADVENTURE TRAIL 14 Installation Instructions REF: AT14 - ADVENTURE TRAIL 14 pg 1 of 29 05.04.2022...

  • Page 2: Parts Required

    UPRIGHT TIMBER AT - U11 90x90 1800 UPRIGHT TIMBER AT - U12 90x90 1800 UPRIGHT TIMBER AT - U14 90x90 2715 UPRIGHT TIMBER AT - U15 90x90 2715 UPRIGHT TIMBER REF: AT14 - ADVENTURE TRAIL 14 pg 2 of 29 05.04.2022...
  • Page 3 AT - UA6 90x90 1250 SEE DRAWING ADDITIONAL NEW SPECIFIC TO AT14 CODE TYPE SIZE INFORMATION 14U1 90x90 2715 UPRIGHT TIMBER 14U2 90x90 2335 UPRIGHT TIMBER 14U3 90x90 UPRIGHT TIMBER REF: AT14 - ADVENTURE TRAIL 14 pg 3 of 29 05.04.2022...
  • Page 4 90x90 2160 HORIZONTAL TIMBER AT - H7 90x90 2010 HORIZONTAL TIMBER AT - H9 90x90 HORIZONTAL TIMBER AT - H10 90X120 2100 AT - H11 90X90 2010 HORIZONTAL TIMBER REF: AT14 - ADVENTURE TRAIL 14 pg 4 of 29 05.04.2022...
  • Page 5 HORIZONTAL TIMBER HORIZONTAL TIMBER AT - H16 90x90 (HEXA GRIP SLAT) HORIZONTAL TIMBER AT - H17 90x90 1920 (HEXA GRIP SLAT) HORIZONTAL TIMBER AT - HA1 90x90 TUNNEL ASSEMBLY REF: AT14 - ADVENTURE TRAIL 14 pg 5 of 29 05.04.2022...
  • Page 6 PARTS REQUIRED CLIMBING PANELS (UPPER) CLIMBING PANELS (LOWER) ROPE BRIDGE SWINGING ROPES SWINGING ROPE CHAIN TRAVERSE ROPE 1 656.M10 274.M12X200 656.M12 102003-01 - M12 REF: AT14 - ADVENTURE TRAIL 14 pg 6 of 29 05.04.2022...
  • Page 7 PARTS REQUIRED x180 97.M8X80CSK M12 SOCKET NUT (50MM) 274.M12X220 CONSISTS OF SHACKLE / BOLT / NYLOC / CAP 349.742.D-SHACKLE ‘SET’ 274.M12X180 REF: AT14 - ADVENTURE TRAIL 14 pg 7 of 29 05.04.2022...
  • Page 8 PARTS REQUIRED PLAYTEC ‘T’ SETS ROPE TRAVERSE 2 TUNNEL NET LOG WALK (PRE-ASSEMBLED) STEPPING LOG (UA4) STEPPING LOG (UA5) STEPPING LOG (UA6) REF: AT14 - ADVENTURE TRAIL 14 pg 8 of 29 05.04.2022...
  • Page 9 274.M12X110 274.M12X230 REF: AT14 - ADVENTURE TRAIL 14 pg 9 of 29 05.04.2022...
  • Page 10 (UPPER) (LOWER) x1 SET TRAVERSE ROPE 3 TRAVERSE ROPE 3 CHAIN PLAYTEC UNDER BRACKET PRE-ASSEMBLED TUNNEL PRE-ASSEMBLED TUNNEL PRE-ASSEMBLED TUNNEL PANEL PANEL - DOUBLE SIDED PANEL INC ‘CHAIN HOLE’ REF: AT14 - ADVENTURE TRAIL 14 pg 10 of 29 05.04.2022...

  • Page 11: Foundation Details

    FOUNDATION DETAILS FOUNDATION DETAILS 14U1 14U2 14U3 REF: AT14 - ADVENTURE TRAIL 14 pg 11 of 29 05.04.2022...
  • Page 12 FOUNDATION DETAILS REF: AT14 - ADVENTURE TRAIL 14 pg 12 of 29 05.04.2022...

  • Page 13: Surfacing Details

    SURFACING DETAILS REF: AT14 - ADVENTURE TRAIL 14 pg 13 of 29 05.04.2022...

  • Page 14: Installation Instructions

    A NUMBER OF STEPS HAVE ALSO BEEN DELETED FOR COMPONENTS NOT REQUIRED ON THE AT14 (THESE ARE NOTED BELOW) STEPS 14 - 21 REMOVED FOR TYRE CROSSING STEPS 29 - 30 REMOVED CARGO NET REF: AT14 - ADVENTURE TRAIL 14 pg 14 of 29 05.04.2022...
  • Page 15 ENSURE A GAP OF 230 BETWEEN TIMBERS / HEXA GRIP ***MUST BE BELOW 600MM*** CARGO NET REMOVED - ATTACH BALANCE BEAM TO THE TRAVERSE WALL PLEASE ENSURE THE UNDER BRACKET IS USED / INSTALLED REF: AT14 - ADVENTURE TRAIL 14 pg 15 of 29 05.04.2022...
  • Page 16 *PLEASE NOTE ALL H TIMBERS ARE PRE-ASSEMBLED WITH PLAYTEC L’s AND/OR HEXBOARD (AS SHOWN ABOVE) ATTACH TIMBER H1 USING 274.M12X200 / 656.M12 / 102003-01, SECURE HEXBOARD WITH M8X80MM WOOD SCREWS REF: AT14 - ADVENTURE TRAIL 14 pg 16 of 29 05.04.2022...
  • Page 17 USING M8X80MM WOOD SCREWS, TAKE CARE THAT SCREWS DO NOT ‘CROSS’ ATTACH TIMBER H3 USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H3 HEXBOARD SLAT WILL NOT BE ATTACHED UNTIL STEP 7 REF: AT14 - ADVENTURE TRAIL 14 pg 17 of 29 05.04.2022...
  • Page 18 USING 274.M12X180 & 220 / 656.M12 / 102003-01 AND M8X80MM WOOD SCREWS 180 BOLT BOLT NOTES: ATTACH PANEL ON OPPOSITE FACE TO BEAM ONE LOWER PLAYTEC PANEL HAS HOLE DRILLED FOR BOLT (SEE CNC) 220 BOLT REF: AT14 - ADVENTURE TRAIL 14 pg 18 of 29 05.04.2022...
  • Page 19 ATTACH REMAINING 3 PLAYTEC CLIMBING PANELS USING 8X80MM WOOD SCREWS NOTES: ENSURE SECOND SET OF PANELS ARE ON OPPOSITE FACE TO FIRST NOTES: THIS PANEL IS ALREADY ATTACHED AS PER STEP 6 REF: AT14 - ADVENTURE TRAIL 14 pg 19 of 29 05.04.2022...
  • Page 20 INSTALLATION INSTRUCTIONS ATTACH TIMBER H5 USING PLAYTEC L’S USING 8X80MM WOOD SCREWS ATTACH SWINGING ROPES TO TIMBER H5 USING 656.M12 / 102003-01 REF: AT14 - ADVENTURE TRAIL 14 pg 20 of 29 05.04.2022...
  • Page 21 ATTACH SWINGING ROPE CHAIN USING M12 X 50MM SOCKET NUT, D - SHACKLE AND EYEBOLT SHOULD BE PRE-ATTACHED TO CHAIN ATTACH TIMBER H6 USING 274.M12X200 / 656.M12 / 102003-01 REF: AT14 - ADVENTURE TRAIL 14 pg 21 of 29 05.04.2022...
  • Page 22 ATTACH TRAVERSE ROPE ABOVER TIMBER H6 USING 656.M12 / 102003-01 STEPS 14 - 21 REMOVED FOR TYRE CROSSING ATTACH ROPE TRAVERSE TO TIMBERS U10 & U11 AS SHOWN USING 656.M10 / 102003-01 REF: AT14 - ADVENTURE TRAIL 14 pg 22 of 29 05.04.2022...
  • Page 23 DO NOT ATTACH H13a LOOSE HEX BOARD UNTIL STEP H13a ATTACH H16 TIMBER USING 274.M12X180 / 656.M12 / 102003-01 NOTES: ENSURE THE PRE-ASSEMBLED PANEL CIRCLED ABOVE INC THE LARGER ‘CHAIN HOLE’ REF: AT14 - ADVENTURE TRAIL 14 pg 23 of 29 05.04.2022...
  • Page 24 USING PLAYTEC L’S / M8X80MM WOOD SCREWS / 274.M12X200 / 656.M12 / 102003-01 NOTES: ATTACH PLAYTEC T’S ON INSIDE AND OUTSIDE OF TUNNEL ATTACH TUNNEL NET USING 656.M12 / 102003-01 REF: AT14 - ADVENTURE TRAIL 14 pg 24 of 29 05.04.2022...
  • Page 25 INSTALLATION INSTRUCTIONS ATTACH TIMBER H17 USING PLAYTEC L’S / M8X80MM WOOD SCREWS / 274.M12X180 / 656.M12 / 102003-01 H13a ATTACH H13a TIMBER HEXBOARD SLATS USING M8X80MM WOOD SCREWS H13a REF: AT14 - ADVENTURE TRAIL 14 pg 25 of 29 05.04.2022...
  • Page 26 INSTALLATION INSTRUCTIONS STEPS 29 - 30 REMOVED CARGO NET REF: AT14 - ADVENTURE TRAIL 14 pg 26 of 29 05.04.2022...
  • Page 27 USING M8X80MM WOOD SCREWS, ENSURE SCREWS DO NOT “CROSS” 14U1 NOTES: ENSURE PANELS ARE ATTACHED ON OPPOSITE SIDES AS SHOWN ATTACH TRAVERSE ROPE 3 USING 656.M10 / 102003-01 UA1b REF: AT14 - ADVENTURE TRAIL 14 pg 27 of 29 05.04.2022...
  • Page 28 INSTALLATION INSTRUCTIONS ATTACH TRAVERSE ROPE CHAIN USING M12 X 50MM SOCKET NUT ON EYEBOLT CHAINS ATTACH H17 UNDER BRACKETS USING M8X80MM WOOD SCREWS REF: AT14 - ADVENTURE TRAIL 14 pg 28 of 29 05.04.2022...

  • Page 29: Additional Dimensions

    ADDITIONAL DIMENSIONS REF: AT14 - ADVENTURE TRAIL 14 pg 29 of 29 05.04.2022...
