HUBER+SUHNER QLA Series Assembly Instruction

Assembly instruction Series QLA
Connector type: 21_QLA-01-2-1 ; 24_QLA-01-2-1
Suitable cables:
RG_316_/U ; RG_174_/U ; RG_188_A/U ; ENVIROFLEX_316
Parts list connector:

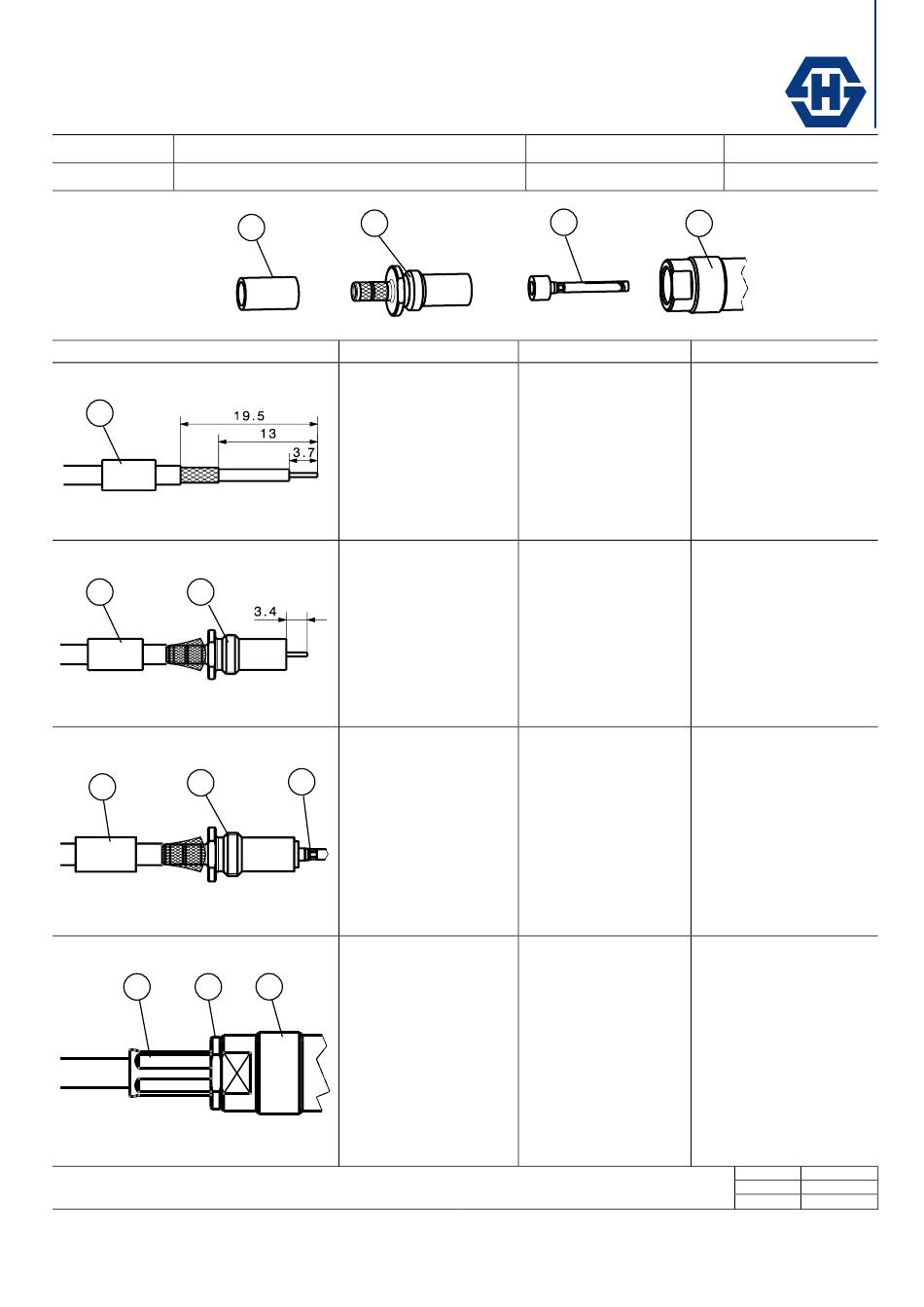

Assembly steps:
A
A B
B
A
A B
The cable assembly of R.F. connectors can only be done by well trained assembly staff and suitable assembly equipment.
Huber+Suhner's skilled staff and specialised equipment are available to carry out complete R.F. lead-assembly on your behalf.
We mount your connectors on cables at economic prices! Please contact our representative for further details of this service.
Old Assembly Instruction No. : 03089
B
A
Process
Slide ferrule A onto
cable.
Prepare cable according
to diagram.
Slide spigot of part B
underneath braid until
inner conductor
protrudes 3.4 mm.
Tin inner conductor of
C
cable and bore hole of
contact pin D.
Slide on contact pin D.
Heat contact pin D.
Push centre conductor
of cable into bore hole.
D
Screw together body
B and D and tighten
using two spanners.
Slide ferrule A over
braid to body D and
crimp.
0000179088
Inner conductor contact:
Outer conductor contact:
C
D
Feature / Check Tools required
Do not damage braid,
Stanley blade§
dielectric and inner
Scissors
conductor of cable.
Ensure that braid lies
above the crimp
neck.
Slide caliper
Check dimension
3.4 mm.
Remove soldering iron
quickly in order to
avoid heat damage to
Soldering iron
cable dielectric.
Solder
Surface of contact pin
D must remain clean.
Spanner
AF 5.5 mm
Crimp tool: Cavity A
Crimp as close as
possible to connector
For large crimp tool and
body D.
table press use insert
76_Z-0-2-1.
For small crimp tool use
insert 76_Z-0-2-51
Deutscher Text: siehe Rückseite
Soldered
Crimped
Revision D
Date 31.03.15
Initiator 4779/JPE
