Page 30
Type OT
Two passive transistor outputs are available with this option. Max. driving capacity 300mA@50V DC.
4.6.3
TERMINAL 07-08: ANALOG OUTPUT
The following signal type configurations are available, including type AP: loop powered.
Type AA
An active 4-20mA signal proportional to the flow rate is available with this option.
When the output is disabled, a 3.5mA signal will be generated on these terminals.
Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD/PF/PM).

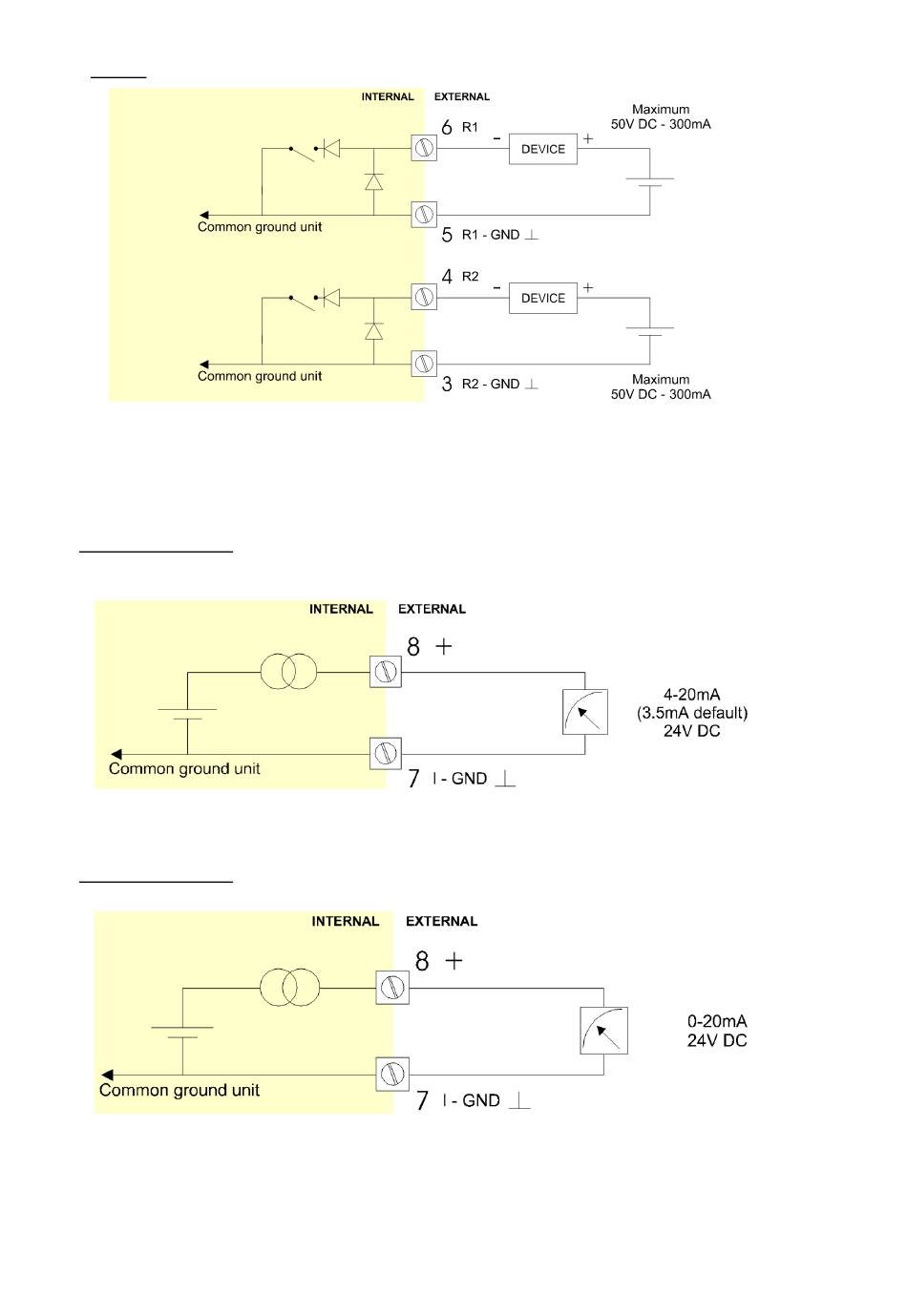

Fig. 19: Terminal connections - Active 4-20mA analog output (typical)
Type AB
An active 0-20mA signal proportional to the flow rate is available with this option.
Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD/PF/PM).
Fig. 20: Terminal connections - Active 0-20mA analog output (typical)
Fig. 18: Terminal connections - Transistor output (typical)
FW_F114-P_M_v2201-02_EN.docx
