3 CONFIGURATION
3.1
INTRODUCTION
This and the following chapters are exclusively meant for electricians and non-operators. In these,
an extensive description of all software settings and hardware connections are provided.
•
Mounting, electrical installation, start-up and maintenance of this device may only be
carried out by trained persons authorized by the operator of the facility. Persons must
read and understand this manual before carrying out its instructions.
•
This device may only be operated by persons who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed.
•
Make sure, the measuring system is correctly wired up according to the wiring diagrams.
Protection against accidental contact is no longer assured when the enclosure cover is
removed or the panel cabinet has been opened (danger from electrical shock). The
enclosure may only be opened by trained persons authorized by the operator of the
facility.
•
Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
3.2
PROGRAMMING SETUP-LEVEL
Changing the settings of the F114-P may have an influence on the current operation of the
device, even when SETUP-level is still active.
Make sure that the unit is not being used for any application when altering the settings.
3.2.1
ENTERING SETUP-LEVEL
Configuration of the F114-P is done at SETUP-level, which can be reached at all times while the
F114-P remains fully operational. At SETUP-level the display will deactivate the
activate the
SETUP
Use the control panel to access SETUP-level
PROG-key
To enter SETUP-level, press the PROG-key for 7 seconds at OPERATOR-level.
During this time, the symbols ▲▼ will be displayed.
When SETUP-level is entered, a password might be required to continue. You can
enter the password by following the procedure for programming values as described in
the following paragraphs.
A password may be required to enter SETUP.
Without this password access to SETUP is denied.
3.2.2
NAVIGATING THROUGH SETUP-LEVEL
Each function has a unique menu-number, which is displayed below the
bottom of the display. The menu-number is a combination of two figures, e.g. 1.2. The first number
indicates the function-group and the second number indicates the function. Additionally, each
function and function-group is expressed with a keyword.
indicator.
1.3
1.2
1.1
1.
FW-4100-000001-001-EN

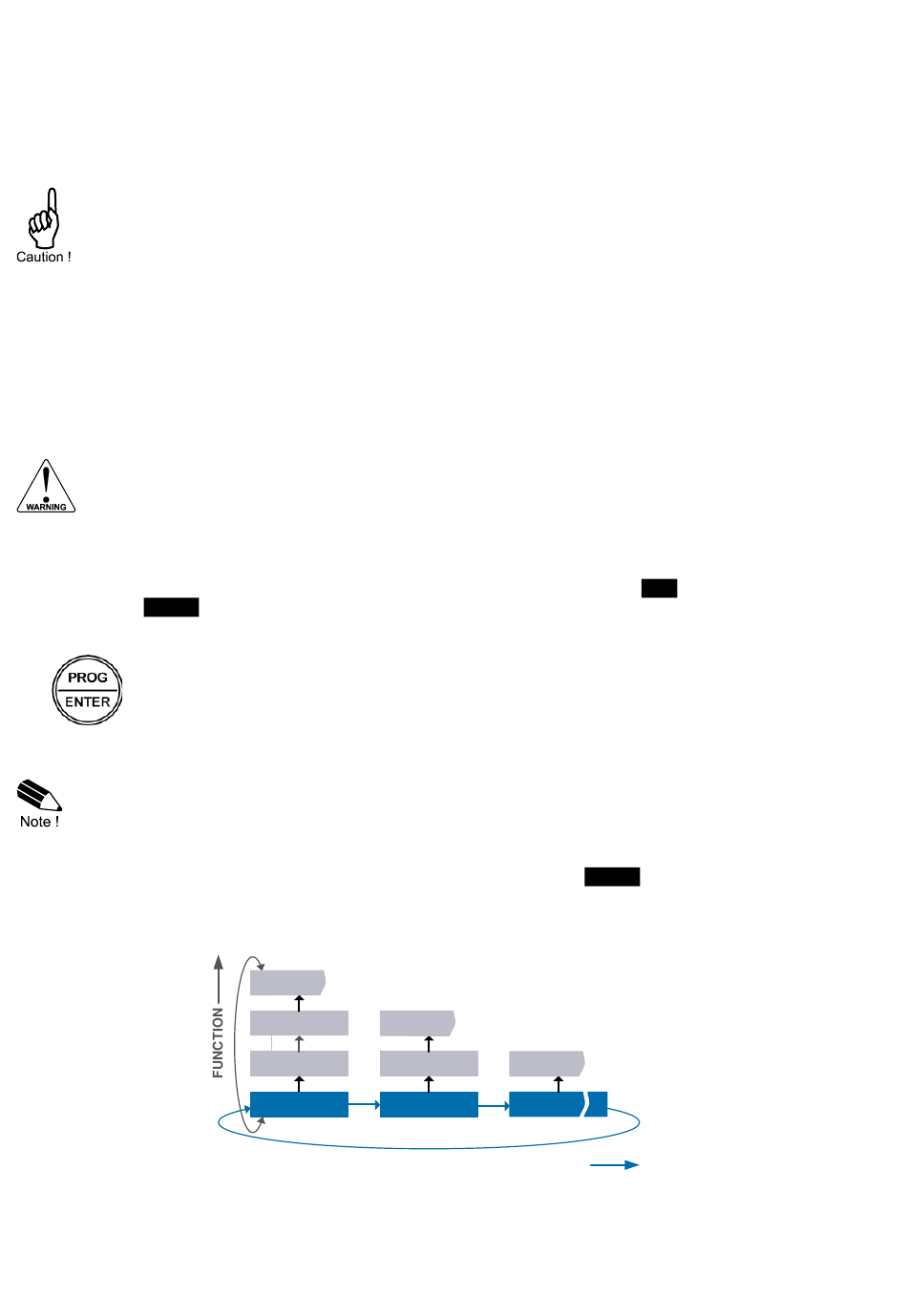

Fig. 6: SETUP matrix structure
FW_F114-P_M_v2201-02_EN.docx
SETUP
2.2
2.1
3.1
2.
3.
FUNCTION GROUP
RUN
indicator and
indicator at the
