- Page 1 User Manual D050-A PRESSURE INDICATOR Signal input: (0)4-20 mA sensor signal Options: backlight D-Series - Panel mounted indicators More info: www.fluidwell.com/dseries...
-
Page 2: Table Of Contents
User Manual D050-A TABLE OF CONTENTS ABOUT THIS MANUAL......................How to use this manual ....................Use of pictograms ......................Warranty and technical support ..................Model Reference ......................SAFETY ............................ Personal safety ....................... End-user responsibilities....................Potential equipment damage ..................Disposal of electronic waste ................... INTRODUCTION........................ - Page 3 D050-A User Manual Battery replacement......................24 7.3.1 Safety instructions ......................24 7.3.2 Battery replacement procedure ..................24 7.3.3 Disposal of batteries ....................... 25 APPENDIX A - TECHNICAL SPECIFICATION ................26 General ........................... 26 Input ..........................27 Operational ........................27 APPENDIX B - TROUBLESHOOTING ................... 28 APPENDIX C - LEGAL INFORMATION ..................
-
Page 4: About This Manual
● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 03.04.xx... -
Page 5: Safety
D050-A User Manual SAFETY PERSONAL SAFETY ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. ● Immediately inform the person responsible for the installation if you disagree with the safety precautions or if you detect errors or danger. END-USER RESPONSIBILITIES ●... -
Page 6: Introduction

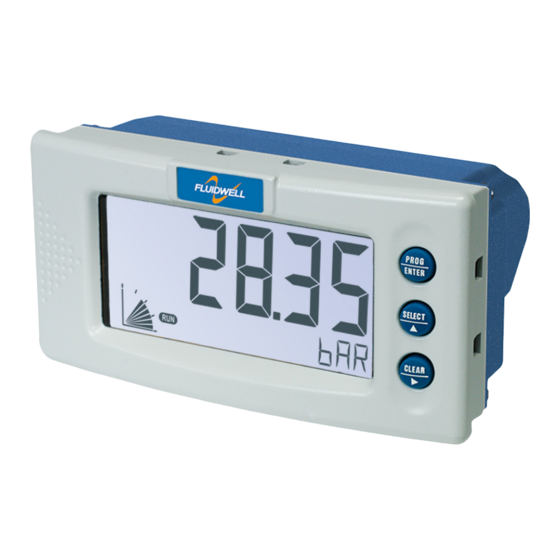

User Manual D050-A INTRODUCTION SYSTEM DESCRIPTION The pressure monitor model D050-A is a microprocessor-driven instrument designed to show the actual pressure. Fig. 1: The D050 This manual describes the daily use, configuration and installation of the D050-A with analog (0)4-20mA input from a pressure sensor, and its available options. The following figure shows the D050-A used in a typical application. -
Page 7: Installation Example
D050-A User Manual INSTALLATION EXAMPLE Following parts can be recognized in below installation example. Fig. 3: Installation example D050-A 1. Front cover 3. Label 5. Keys 7. Clamp 2. Display 4. Protective earth 6. Mounting panel 8. Back side cover connection FW_D050-A_M_v0501-01_EN Page 7... -
Page 8: Operation
User Manual D050-A OPERATION This unit may only be operated by authorized and trained personnel who have read and understood this manual, particularly Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the D050-A. For this, the D-Series is equipped with a control panel that provides the operator with various functions, information and operating modes. -
Page 9: Backlight (Type Zb)
D050-A User Manual Normally, the display is updated depending on the refresh rate selected in the configuration settings. By pressing any key, the display switches to refreshing the information 8 times per second. After 30 seconds of key inactivity, the display returns to the configured refresh rate. Fig. 4: Example of display information during process 4.2.2... -
Page 10: Configuration
User Manual D050-A CONFIGURATION INTRODUCTION This chapter describes how technicians can use configuration settings to configure the D-Series for optimal functionality. Configuration of the D050-A can be done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8] Changing settings may influence current operation In SETUP mode the unit remains fully operational. -
Page 11: Changing Configuration Settings
D050-A User Manual 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps. -
Page 12: Setup Menu Overview
User Manual D050-A SETUP MENU OVERVIEW PRESSURE DEFAULT UNIT mbar - bar - PSI - mPa - Pa - no unit DECIMALS 0 - 5 0.00001 - 199,999 SPAN OFFSET -99,999 to +199,999 DISPLAY DEFAULT BARGRAPH off - on BACKLIGHT off - on 1 - 5 BACKLIGHT... -
Page 13: Menu 2: Display
D050-A User Manual PRESSURE SPAN The Span is used to convert the sensor output to a pressure. The Span is based on the measuring range of the sensor. Examples are given just above this table. Accuracy of the measurement system depends on the accuracy of the Span. -
Page 14: Menu 4: Sensor
User Manual D050-A 5.4.4 MENU 4: SENSOR SENSOR FILTER The analog output signal of a pressure sensor mirrors the actual process value. This signal is sampled several times per second by the D050-A. Consequently, random and/or fast changes in sensor signal may lead to instable displayed process values. -
Page 15: Menu 5: Others
D050-A User Manual SENSOR CALIBRATE HIGH The D050 is calibrated in factory using a very accurate current source. In case the sensor signal does not equal 20mA at maximum pressure, this function is needed to set the input current at maximum pressure. Be very sure that the offered tuning signal is stable and correct before using it for calibration, since this setting has major influence on the accuracy of the system. -
Page 16: Installation
User Manual D050-A INSTALLATION ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●... -
Page 17: Handling The D050-A Enclosure
D050-A User Manual HANDLING THE D050-A ENCLOSURE 6.2.1 IDENTIFICATION Identification label To identify your D050-A device, all enclosures have a weatherproof identification label placed at the backside of the product. Fig. 7: Example of D0-Series identification label Serial number and year of production The serial number can be reviewed on the identification label, the installation label, or in . -
Page 18: Mounting The D-Series
User Manual D050-A 6.3.2 MOUNTING THE D-SERIES The D-Series unit is mounted by placing it in an opening in a panel or cabinet (see Section 6.3.1: ) and securing it. To ensure proper IP or TYPE rating, the panel should Mechanical dimensions [»17] be rigid with a flat surface. -
Page 19: Electrical Safety
D050-A User Manual 6.4.1 ELECTRICAL SAFETY First consult the table with limiting environmental conditions and safety parameters in Section 6.1: Installation / environmental conditions [»16] General remarks ● Please note that the D050-A that came with a power module type PM will carry 110V-230V AC when installed. -
Page 20: Field Wiring Connections
User Manual D050-A 6.4.3 FIELD WIRING CONNECTIONS ● Do ground the aluminum / stainless steel enclosure properly with a PE wire as indicated to the Protective Earth terminal. It is the responsibility of the installer to install, connect and test the Protective Earth connections in accordance with the local and (inter)national Rules and Regulations. -
Page 21: Terminal Connectors
D050-A User Manual Jumper setting External sensor supply voltage 8.2 V DC 12 V DC 24 V DC TERMINAL CONNECTORS Type passive Take notice of all safety and precautionary measures indicated in Section 6.4: Electrical and review installation [»18] Section 6.4.3: Field wiring connections [»20] Section 6.4.4: Power before applying any field or power supply wiring. -
Page 22: Terminals S1-S2 (S4): Pressure Sensor Input
User Manual D050-A 6.5.2 TERMINALS S1-S2 (S4): PRESSURE SENSOR INPUT The D050-A requires a (0)4-20mA pressure sensor signal which will be processed 4 times per second with 16 bit accuracy. The input is not isolated. The screen of the signal wire can be connected to the common ground terminal (see Field wiring connections). -
Page 23: Maintenance
D050-A User Manual MAINTENANCE GENERAL DIRECTIONS ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●... -
Page 24: Battery Replacement
à plus de 100°C (212°F) ou exposer à l'eau. Primary Lithium Battery - Only replace with Fluidwell recommended battery pack! Pile primaire au lithium - Remplacer uniquement par une pile recommandé par Fluidwell! Fig. 16: Marking battery type PB: Safe area StdLiBAT-021 (SPB02) 7.3.2... -
Page 25: Disposal Of Batteries
D050-A User Manual 4. Place the back side cover back on the product and secure it with the four screws. 5. Check that the battery is installed properly by checking that the screen has come on. 6. Reconnect the unplugged field connectors. 7. -
Page 26: Appendix A - Technical Specification
User Manual D050-A APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD, UV-resistant Digits 5½ with height 26mm (1”) and 11 with height 8mm (0.31”). Various symbols and measuring units. Dimensions 90 x 40 mm (3.5” x 1.6”) Refresh rate User definable: fast - 1 sec - 3 sec - 15 sec - off Piegraph... -
Page 27: Input
D050-A User Manual INPUT PRESSURE SENSOR Signal type (0)4-20 mA, with signal calibration feature. Type PL min. 4 mA. Accuracy 16 bit. Error < 0.01 mA or ±0.05% FS. Low-level cut-off programmable. Span 0.00001 - 199,999 with variable decimal position. Offset -99,999 to +199,999 Update time... -
Page 28: Appendix B - Troubleshooting
User Manual D050-A APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the D050-A. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ). -
Page 29: Appendix C - Legal Information
EU De cla tio n of Conformi Fluidwell 0 D ‒Series indicators he , February 2022 We, Fluidwell BV, declare under our s e ol respons ibility that the 0 D ‒Series indicators are de igne d and will operate conform the following applicable European... - Page 30 User Manual D050-A LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: PRESSURE UNIT DECIMALS SPAN OFFSET DISPLAY BARGRAPH BACKLIGHT BACKLIGHT BRIGHTNESS POWER MANAGEMENT LCD UPDATE 1 sec BATTERY MODE operational SENSOR FILTER 01 (off) CUT-OFF CALIBRATE LOW factory CALIBRATE HIGH factory OTHERS TYPE / MODEL...
