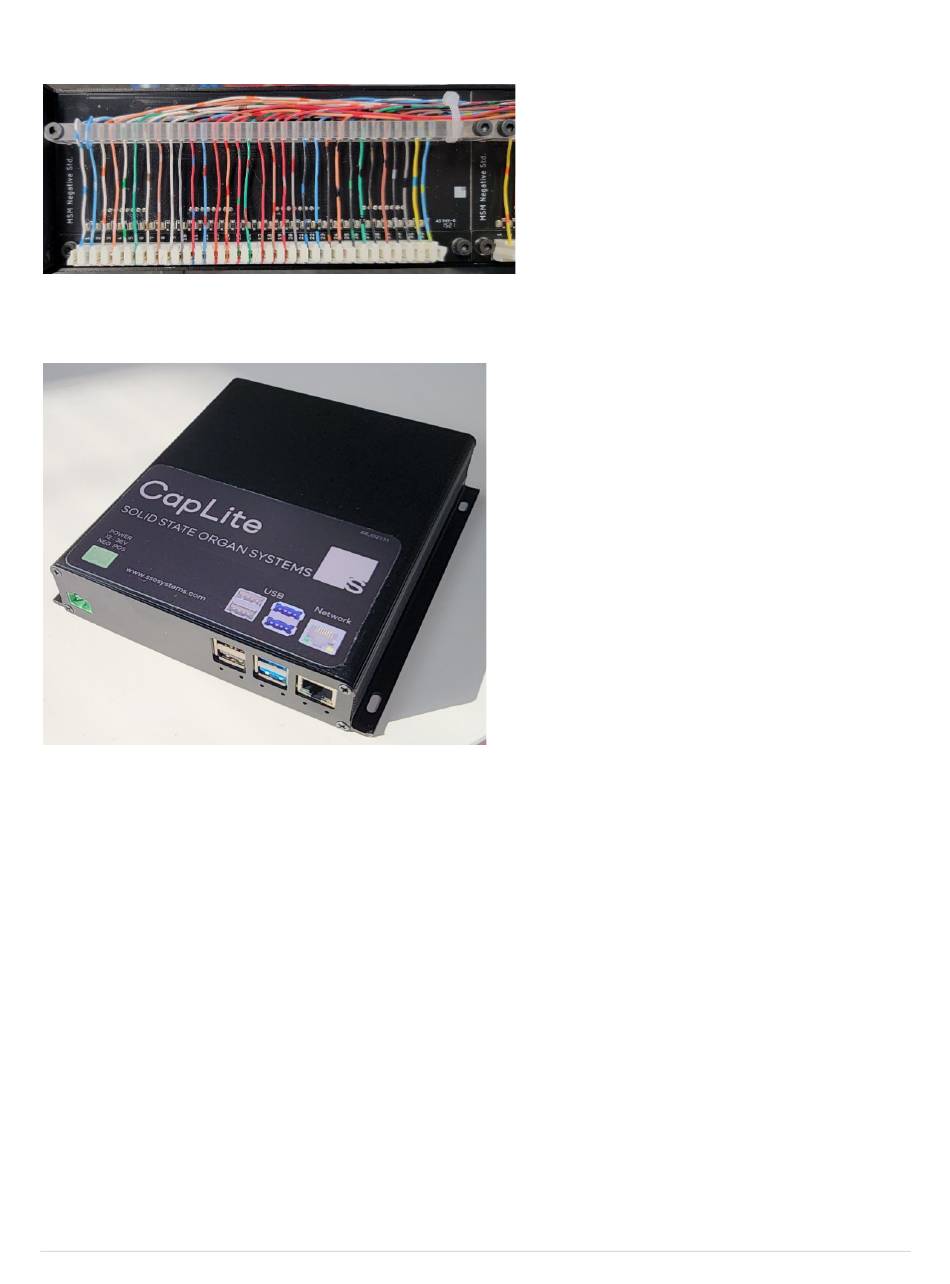

Wires are run from through the cable register passing over the LEDs which are visible between the gaps.

CapLite Processor

The CapLite has a central processor. This is connected to the CapLite module using a Cat5 cable, we

supply a 2 metre (6ft) cable, but this can be replaced by any good quality Cat5 cable (Cat6 and Cat7 are

also OK) up to 80 metres if you wish. Longer cables can be terminated using our link protection boards.

Unless you have the correct tools and experience do not attempt to make your own connections to the

RJ45 plugs.

The CapLite processor requires DC organ power 12 – 36 Volts. The green connector is fitted to the

processor for safe keeping but can easily be removed. There are two screw terminals and a red marker

for positive.

The memory display is connected to this box and so if the wiring must be placed at a distance from the

console the processor may be attached to a closer point and run the display.
