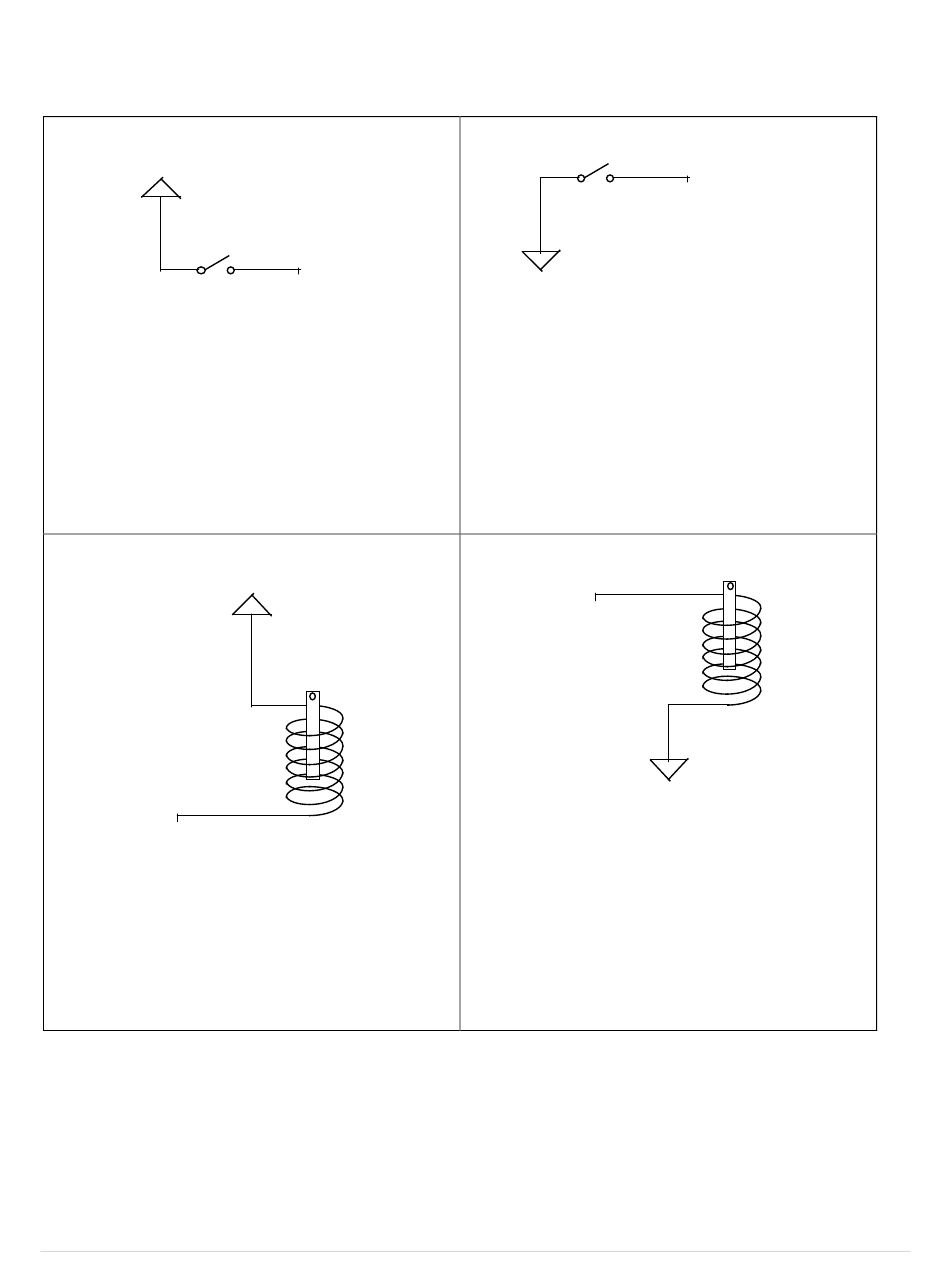

Input and Output Polarity

Positive Input
+12V to +24V
For switch contacts the feed should be
positive.
These are for switches, contacts and
signals which give a voltage above 10V
when the switch is on (closed)
When the switch is off, there should be
no connection (open circuit) or a low
voltage (less than 1.5V)
Negative Output
+12V to +24V
Negative
Output
For magnets the return should be positive.
These are for magnets (electro-
magnets/solenoids) and lamps with a
positive common
When the output is on, it will connect
to 0V
For voltages outside of the indicated ranges please contact our service team for advice.
24 |
P a g e
Positive
Input
Negative Input
0V
For switch contacts the feed should be 0V.
These are for switches, contacts and
signals which give a voltage below 1.5V
when the switch is on (closed)
When the switch is off, there should be
no connection (open circuit) or a high
voltage (more than 10V)
Positive Output
Positive
Output
0V
For magnets the return should be 0V.
These are for magnets (electro-
magnets/solenoids) and lamps with a
negative common
When the output is on, it will connect
to the positive supply
Negative
Input
