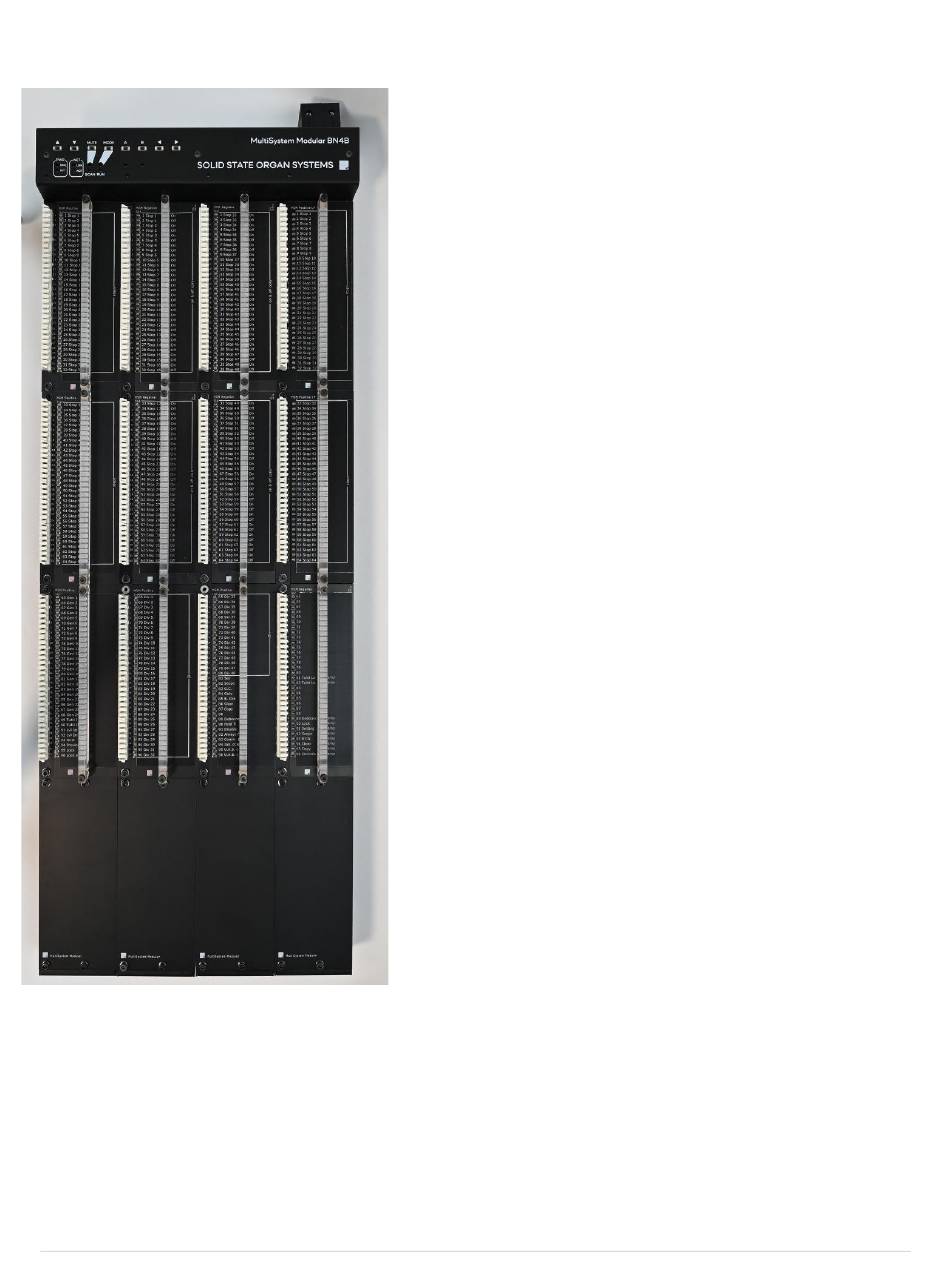

The CapLite Module

6 | P a g e
All the wiring is contained in one module which is the same
size for both the 64 and 96 stop version. Dimensioned
drawings are included at the end of this book.
The stops are arranged in columns with built in connector
listings. Stops are at the top of each column and pistons at
the bottom and lamps on the last card.
Column 1 stop inputs (Positive Input)
Column 2 and 3 On and Off coils (negative going)
Column 4 Stop action outputs (Positive going)
All piston inputs are positive, and all lamp outputs are
negative.
Modules support Krone connections and cable registers.
CapLite also has built in wiring summaries right next to the
wires.
Krone connection blocks are removeable to allow card
swapping without rewiring.
Outputs are individually fused and electronically current
protected.
All connections have an LED to check wiring.
