Factory Reset:

1. Enter Commissioning mode.
2. Do triple clear (Positive to clear input 3 times) to completely remove all default files.
3. Put a positive to the Initialize pin to copy the empty system to all the levels.

Optional Individual displays

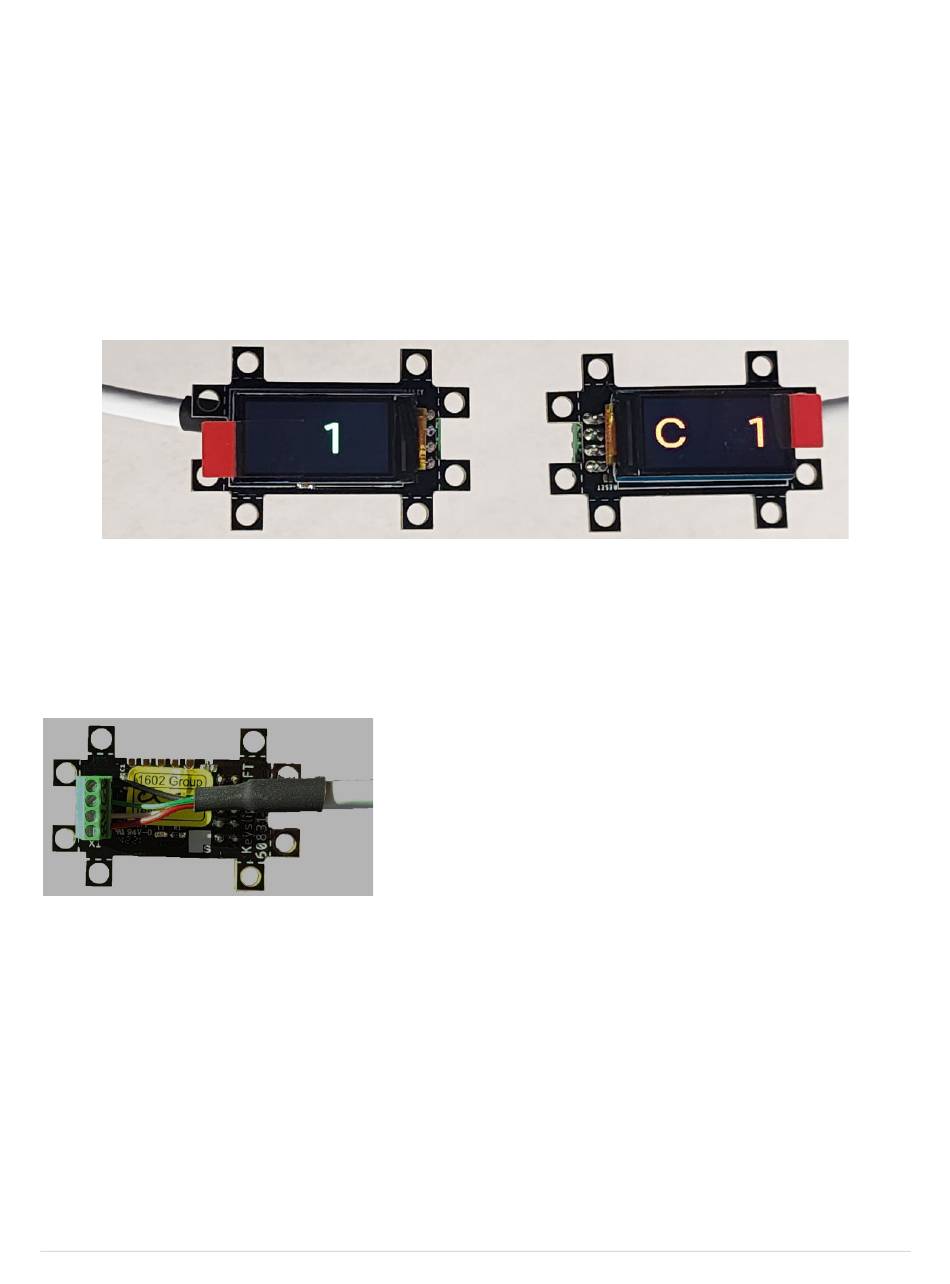

Control panels can be self-contained or split to be installed in keyslips and piston rails. Each display is
connected with a USB cable and the displays may be fitted either way up to facilitate tight fitting.
However, at this point the keyslip display needs to be ordered inverted and with a choice of colour.
It is also possible to have both memory level and piston on one display with smaller text upon request.
The displays are plugged into the control server with traditional USB plugs and as always with USB any
The mounting tabs on the keyslip display may be carefully removed along the dotted lines. Please do not
file any of the circuit boards as there are hidden tracks that may be damaged.
Two keyslip displays may be mounted close to each other with the tabs removed, one can be inverted to
make the digits closer together. Please ask us for an inverted display.
22 | P a g e
connection on the server will work.
The USB cable is provided with stripped and tinned wires
ready to be connected to the screw terminals. If you wish to
shorten the cable no problem.
The colours of the cable are either written on the connector
or on the circuit board.
