Assembling the System
Control Panels:
The CapLite comes as standard with the new TFT colour display which shows memory level and last
general piston. If space is limited on the console, it is possible to change this for the individual control
panels and use pistons to control the memory level and sequencer.
The display is connected directly to the CapLite processor using a USB cable which connects to the screw
terminals of the display. If you wish to shorten the cable, please do so but we recommend tinning the
wires afterwards.

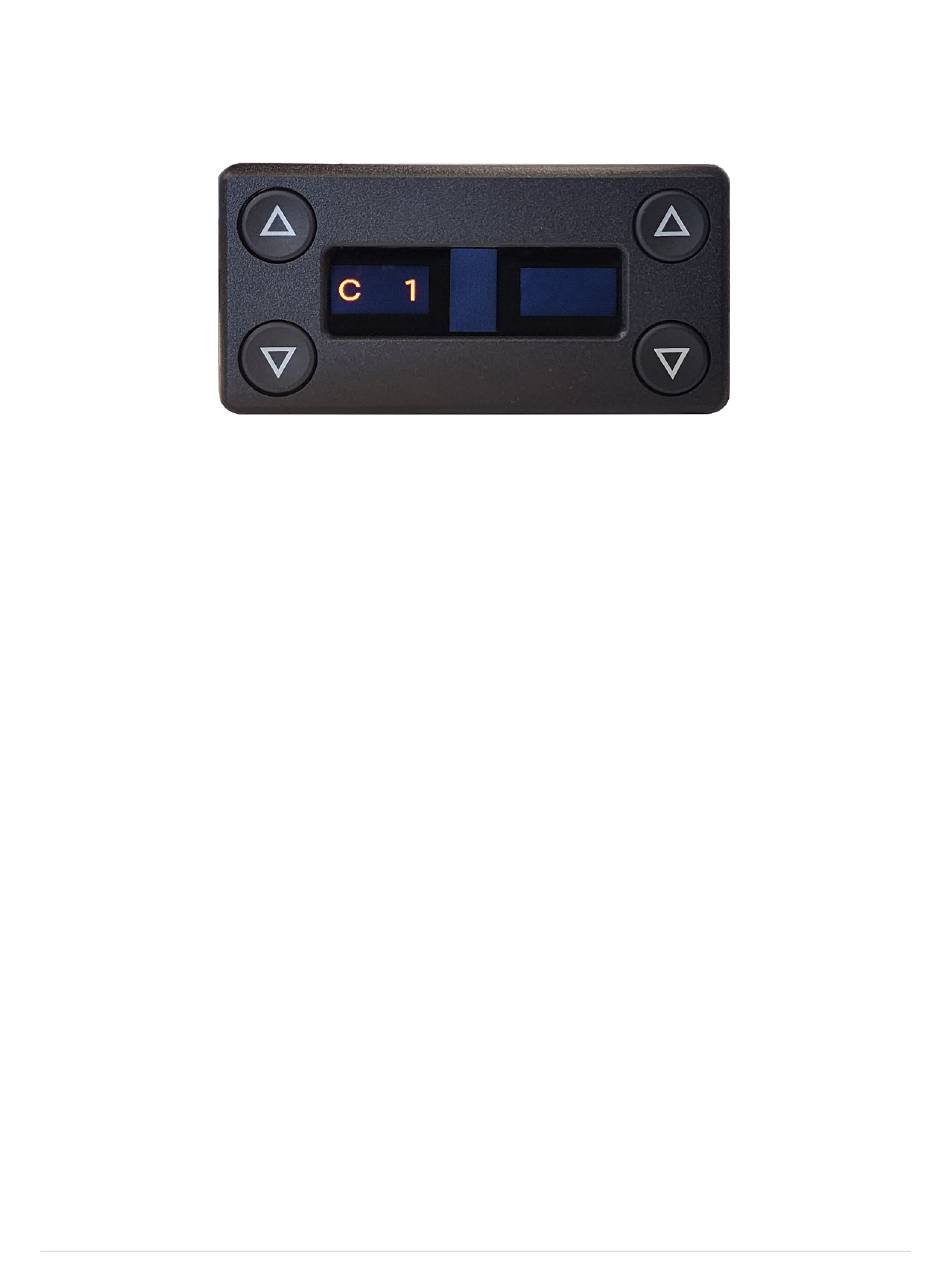

The alpha display with buttons can be configured after installation by pressing all 4 buttons at the same
time to enter the setup mode. The hardware is symmetrical and so can be mounted either way up as
there is a sensor (the bit that rattles) that detects which way up the display is on power up and rotates
it. If you mount the display horizontally, in a drawer for example, we suggest you go into setup mode
and fix the orientation from the menu. (press all 4 buttons)
