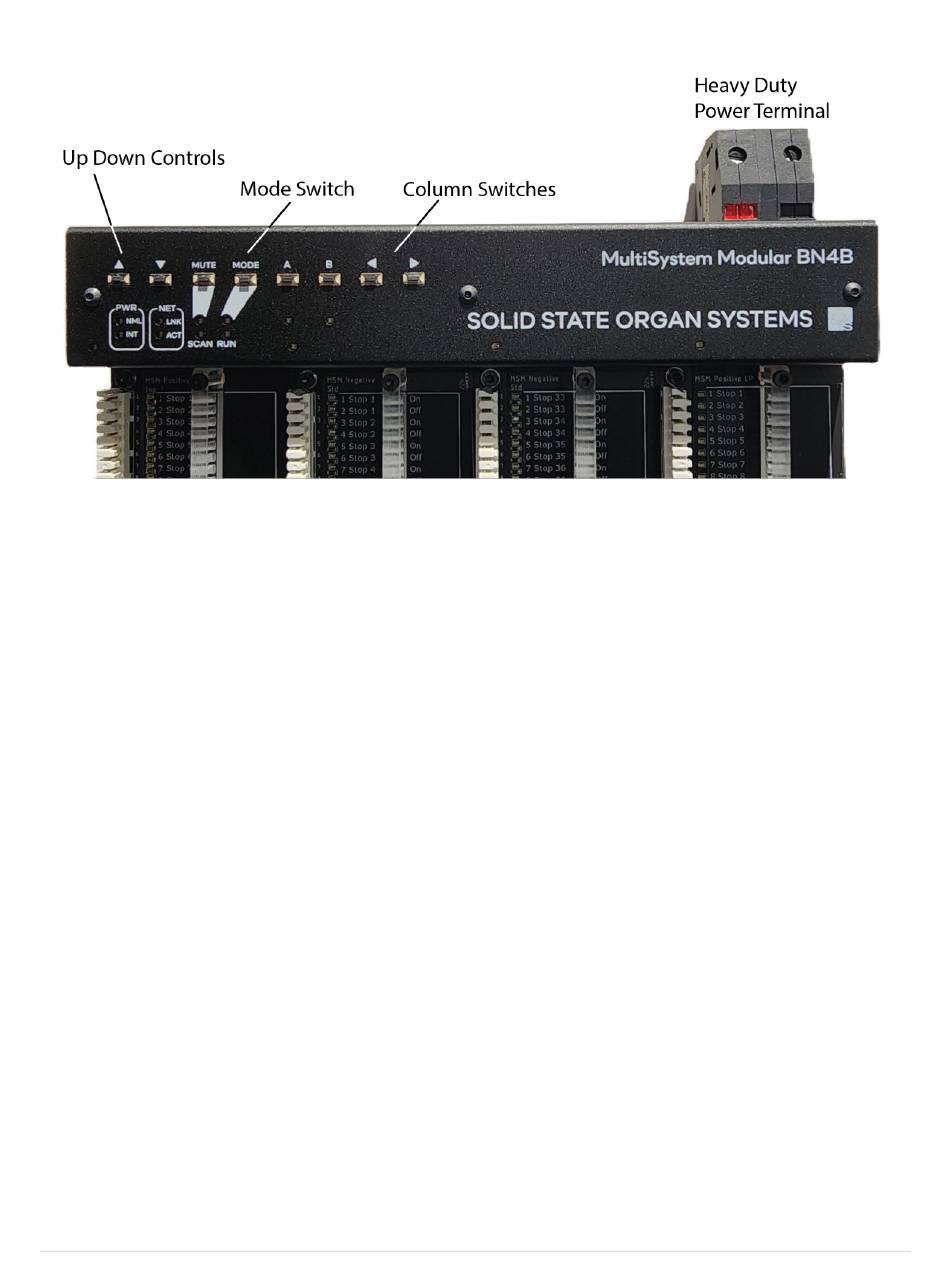

Module Controls
Summary of a good module:
INT red Led lit
Network LEDs. Link solid green, Activity flashing.
Scan Green LED lit
Mode Solid Green
Run Solid Amber
The LEDs on the module control panel are grouped into sections.
Power indicators. When a module is powered and the internal supply is good the INT LED will light red.
Network Indicators. These are a duplicate of the indicators on the network connector, displayed here for
convenience.
The Scan LED lights green when the individual cards on the module are being read. The scan LED will
flash briefly during start up and then come on solid once the module is running. If it flashes but stays off,
there is a problem.
Each MultiSystem Modular has a set of 3 LEDs and 4 buttons to assist with setting up a rank. The module
does not need to be connected to the network to do this.
The Mode Button is used for switching between different modes:
1.
Normal Operation
2.
Wiring/Auto Mode
3.
Test/Manual Mode
