Power supply concept
The u-control controllers and the u-remote modules use three
internal current paths as described in following chapter 4. In-
put and output paths are supplied seperately, therefore a cus-
tom-fit refreshing by power-feed modules is easyly feasible.

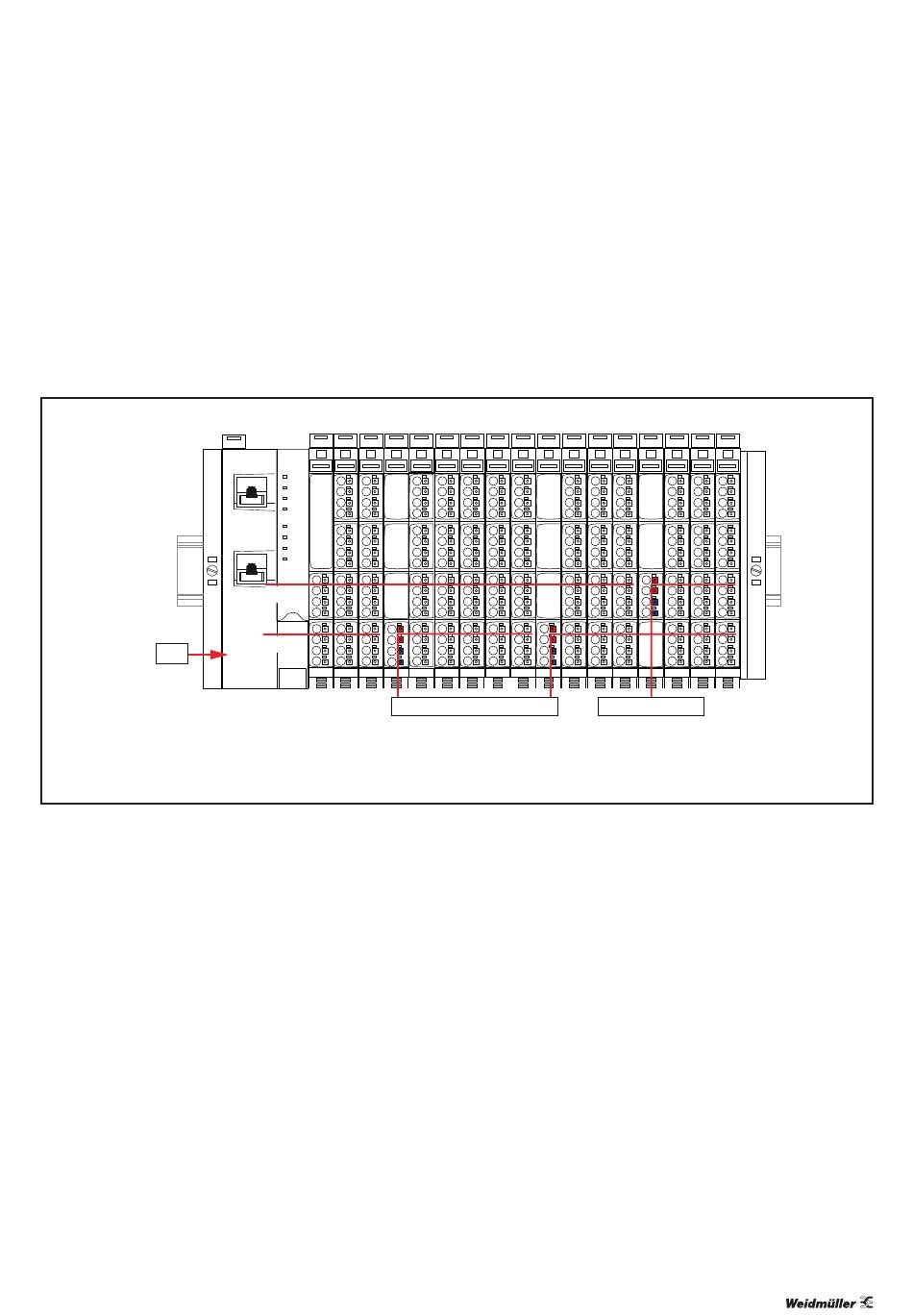

The figure shows the general supply concept. For detailed
description and calculation of the current demand please
regard sections 4.8 and 4.9.
24 V
Power supply of a u-control station in general
2604080000/08/08.2023
UC20
DI
DO
PF-O
DO
X1
X2
U
24V
IN
U
24V
OUT
U
Power supply of the output paths
OUT
U
Power supply of the intput paths
IN
PF-X Power feed-in
Surge protection on each power feed-in
AO DO
DI
DO
PF-O
DO
DO
24V Power feed-in outputs
Manual u-control
3 System overview
DI
PF-I
DI
DI
DO
24V Power feed-in inputs
9
