5.2
UC20-WL2000-AC-CAN
Up to 64 active u-remote modules can be connected via
the u-remote system bus to the UC20-WL2000-AC-CAN
controller. The controller has two Ethernet connections for
integration into the existing network architecture or HMI con-
nections. The CAN interface can be used with the operating
system u-OS.
The integrated engineering tool u-OS can be launched via
the USB service interface or over Ethernet. In u-OS, the
u-control station can be configured and parametrised and
control applications can be programmed. With u-OS, pro-
gramming is supported depending on the installed apps, e.g.
CODESYS or Node-RED.
The station's main power supply is integrated into the con-
troller. Power is supplied via two 4-pole connectors, separat-
ed into the input and output current paths.

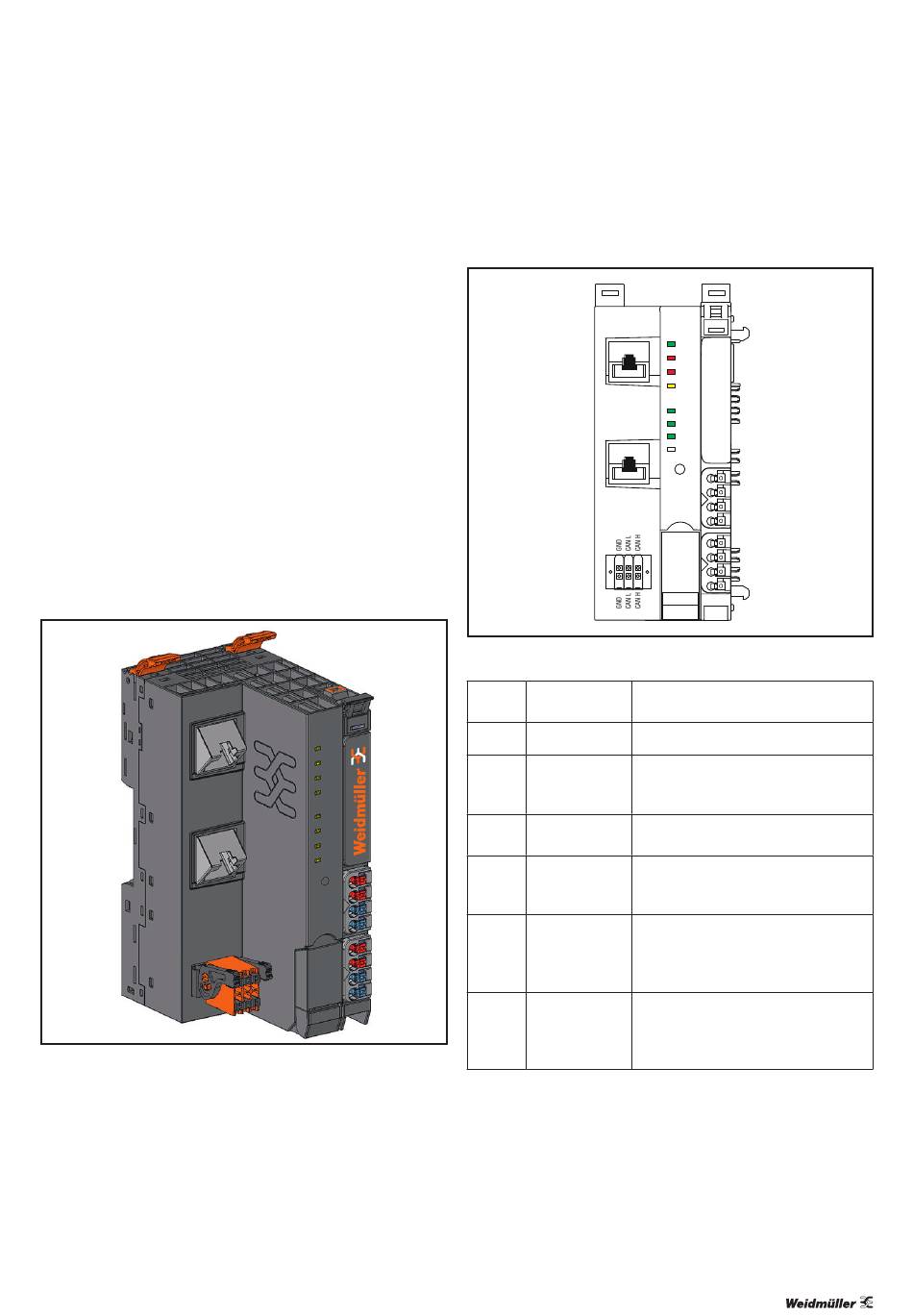

Controller UC20-WL2000-AC-CAN (Order No. 2928020000)
2604080000/08/08.2023
5 Detail description of controllers | UC20-WL2000-AC-CAN
Status indicators
LED status indicators UC20-WL2000-AC-CAN, for error messages see Chapter 13
PWR
Power LED
SF
System failure
BF
Bus failure
MT
Maintenance
RUN/
Controller status
STOP
L/A X1
Connection/
activity
L/A X2
Connection/
activity
Manual u-control
WL-AC-CAN
X1
PWR
SF
BF
MT
RUN
L/A X1
X2
L/A X2
1
2
3
3
4
1
X4
2
4
3
4
green: supply voltage present, firmware is
running
red: serious system failure
green: communication with modules OK
red: communication error with module or no
modules connected
green flashing twice: operating system is
running
off: no application deployed
green: application is deployed and running
yellow: application is deployed and stopped
green: connection of controller connection 1
with an additional field device
green/yellow flashing: data being ex-
changed on connection 1
green: connection of controller connection 2
with an additional field device
green/yellow flashing: data being ex-
changed on port 2
