Configuration

4.1

Connectable u-remote I/O modules

The release notes concerning the controllers
describe which u-remote modules at which firm-
ware version are supported. The release notes
are available to download from the Weidmüller
website.
▶ Please regard the information in the release notes.
4.2

Order and arrangement of the modules

The u-control station is designed to be installed on a DIN rail
(35 × 7.5 mm or 35 x 15 mm) made from steel or galvanised
steel according to EN 60715.
– A u-remote station may be built up to a maxi-
mum length of 1 m. Therefore at most
82 modules (including max. 64 active mod-
ules) can be aligned on a controller.
A u-control station may only be installed in this sequence
(starting from the left/bottom):
– End bracket
– Controller
– Up to 82 modules (including max. 64 active modules)
– End plate and end bracket
A maximum of three passive modules (potential distribu-
tion module, power-feed module or blank module) may be
placed in successive positions. Then at least one active
module must follow.
Arrangement of safe power-feed modules
A safe power-feed module PF-O-xDI-SIL module can be
positioned anywhere in the u-control station. All of the fol-
lowing output modules (except for the UR20-4RO-CO-255
and UR20-4RO-SSR-255 relay modules) up to the next PF-O
module will be safely disconnected (safety segment). Multi-
ple PF-O-xDI-SIL modules/safety segments can be arranged
within a station.
When using safe power-feed modules, please
also observe the Modules for Functional Safe-
ty Manual.
The manual is available to download from the
Weidmüller website.
14
ATTENTION
4.3

Orientation of the station

The u-control station is usually installed on a horizontally
positioned DIN rail.
42 mm
1.65"
42 mm
1.65"

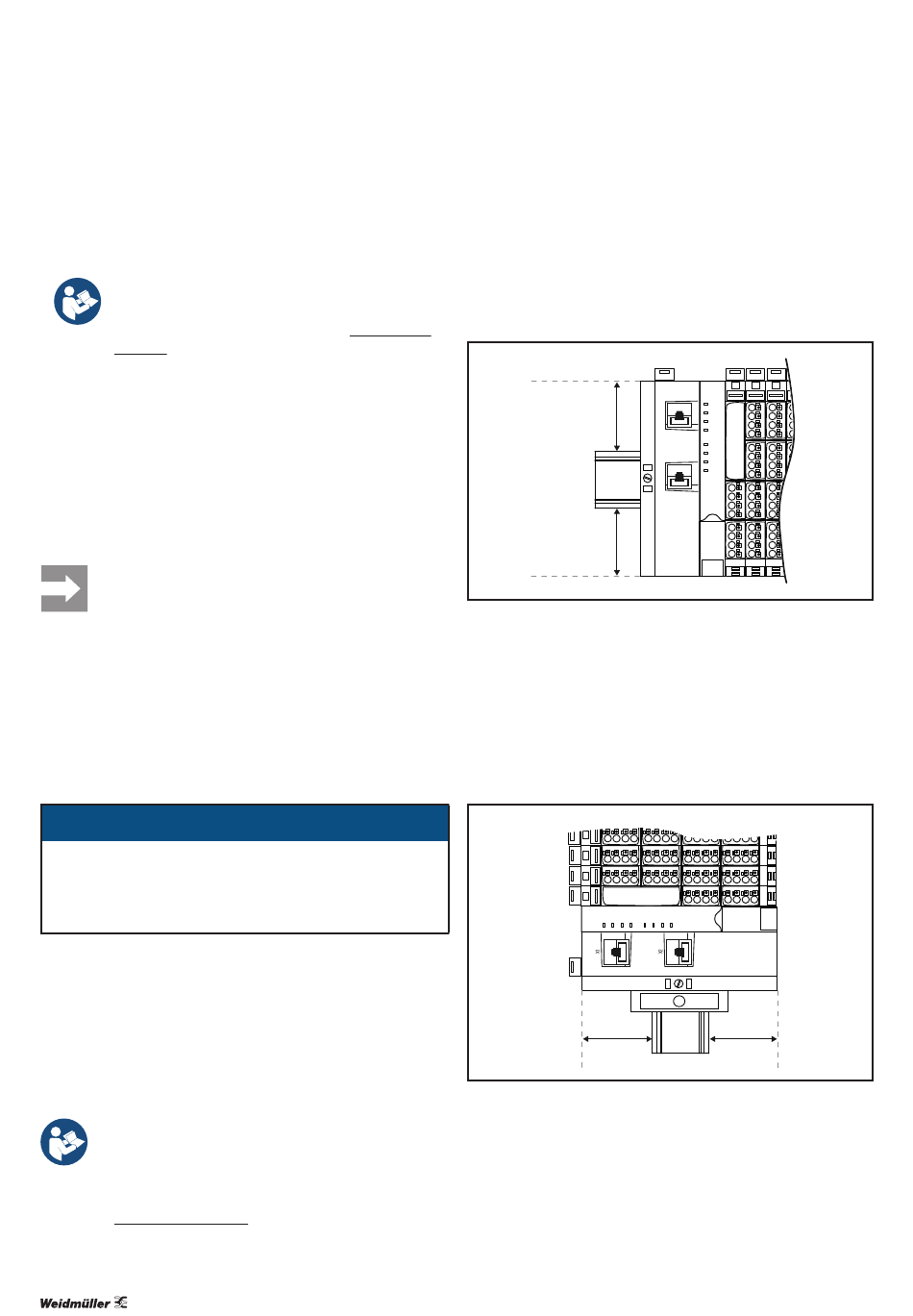

Installation position of the u-control station on the DIN rail (horizontal installation)
Installation on vertically positioned DIN rails is also possible.
In this case however, the heat dissipation is reduced such
that the derating values change (see section 4.8).
In the case of vertical mounting, the controller must always
be arranged as the first module at the bottom and secured
with a MEW 35/1 end bracket for vertical mounting (Order
No. 1805610000).
Installation position of the u-control station on the DIN rail (vertical installation)
Manual u-control
X1
X2
42 mm 42 mm
1.65" 1.65"
