5 Detail description of controllers | UC20-WL2000-IOT
5.3

UC20-WL2000-IOT

Up to 64 active u-remote modules can be connected via the
u-remote system bus to the UC20-WL2000-IOT controller.
The controller has two Ethernet connections for integration
into the existing network architecture or HMI connections.
The integrated engineering tool u-create web can be
launched via the USB service interface or over Ethernet. In
u-create web, the u-control station can be configured and
parametrised and control applications can be programmed
(programming language: JavaScript by Node-RED).
The station's main power supply is integrated into the con-
troller. Power is supplied via two 4-pole connectors, separat-
ed into the input and output current paths.

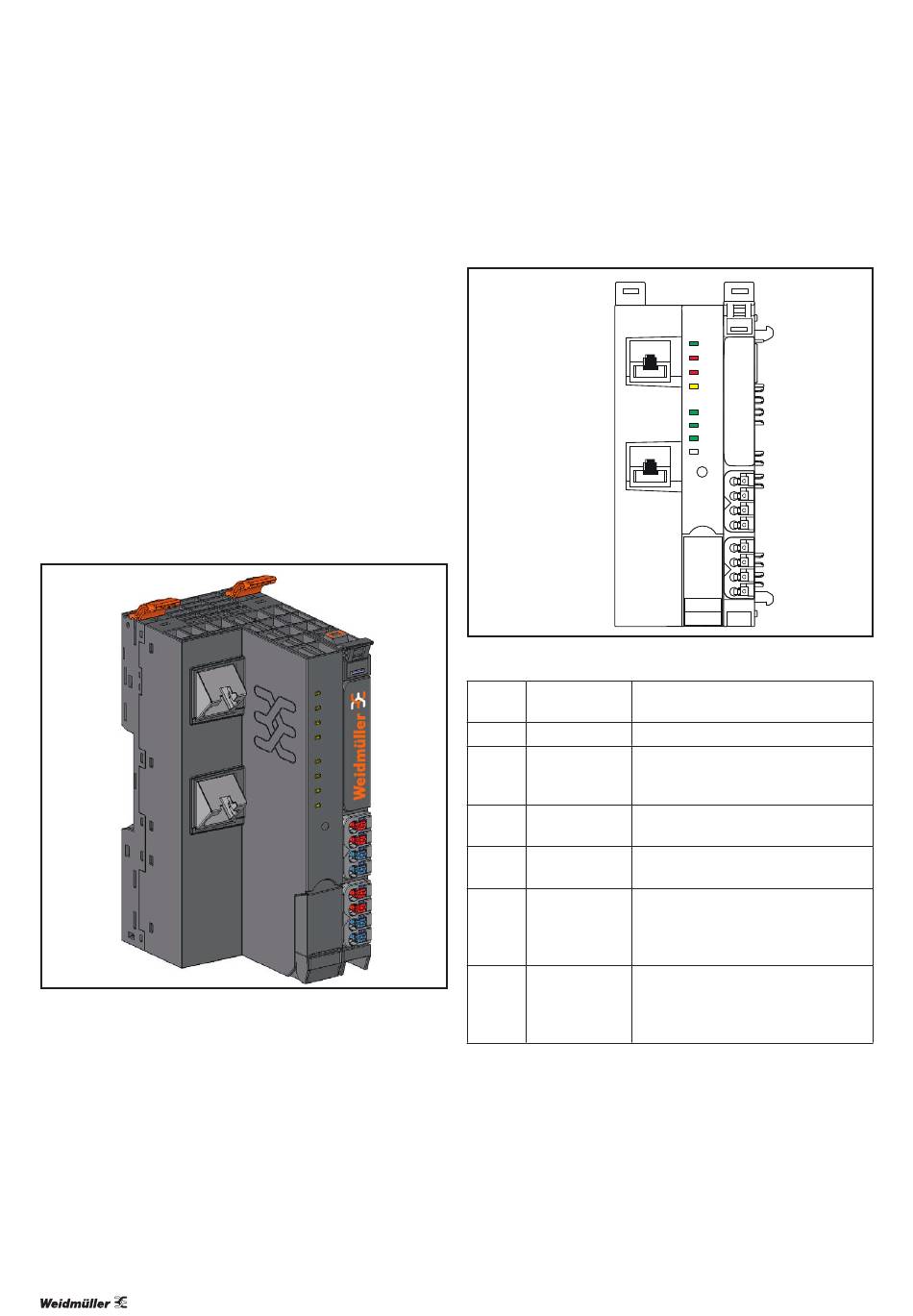

Controller UC20-WL2000-IOT (Order no. 1334990000)
32
Status indicators
LED Status indicators UC20-WL2000-IOT, for error messages see Chapter 13
PWR
Power LED
SF
System failure
BF
Bus failure
MT Maintenance
RUN/ Controller status
STOP
L/A X1
Connection/
activity
L/A X2
Connection/
activity
Manual u-control
IOT
X1
PWR
SF
BF
MT
RUN/STOP
L/A X1
X2
L/A X2
1
2
3
3
4
1
2
4
3
4
green: supply voltage present, firmware is
running
red: serious system failure
green: communication with modules OK
red: communication error with module or no
modules connected
green flashing twice: operating system is
running
off: no application deployed
green: application is deployed and running
green: connection of controller connection 1
with an additional field device
green/yellow flashing: data being ex-
changed on connection 1
green: connection of controller connection 2
with an additional field device
green/yellow flashing: data being ex-
changed on port 2
