3 System overview | Connector PG 1.5 mm
3.3 Connector PG 1.5 mm
A connector frame can take up to four connectors, and four
conductors can be connected to each connector. "PUSH IN"
technology allows for fine-wired conductors with crimped
wire-end ferrules or ultrasonically welded conductors, each
with a maximum cross-section of 1.5 mm², to be inserted
easily through the opening in the clamping terminal without
having to use tools. To insert fine-wired conductors without
wire-end ferrules, the pusher must be pressed in with a
screwdriver (wiring see section 6.3).

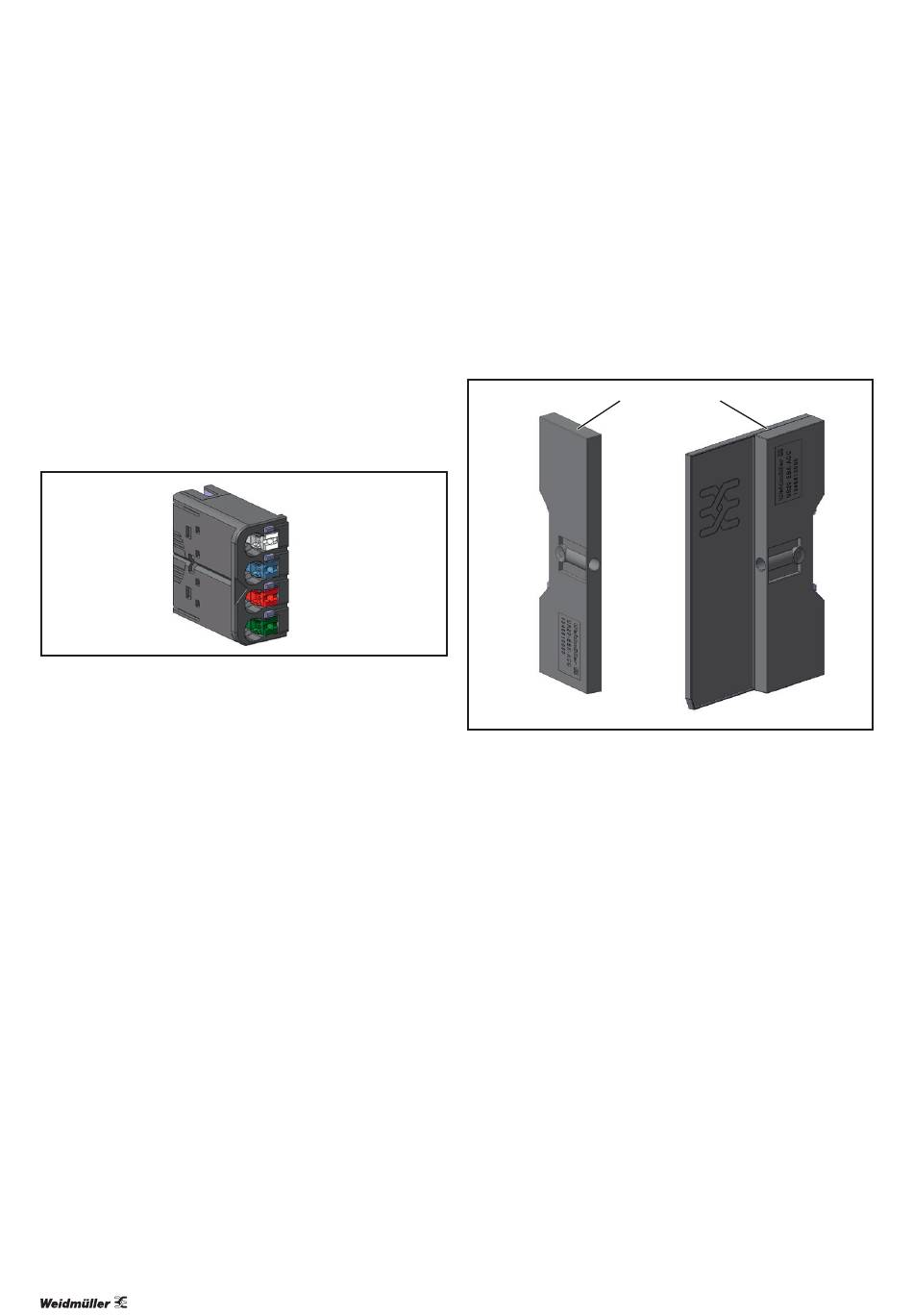

Connector PG 1.5 mm with four conductor connections
– conductor cross-section 0.14 to 1.5 mm² (AWG 16 – 26)
– max. ampacity: 10 A
– 4-pole
The pushers are colour-coded for the following connections:
White Signal DC or AC
Blue GND
Red 24 V DC
Green Functional earth (FE)
Black Signal AC
12
3.4 Mechanical fixing elements
The station is fixed in the installation position by an end
bracket at either side. The last I/O module is protected
against dust by a cover plate. Into this cover plate the second
end bracket is inserted and screwed to the mounting rail.
Every u-control controller is supplied with a termination kit.
u-control station fixing elements
1
End bracket (left end, on the controller side)
2 Termination kit with end plate and end bracket (right end)
For vertical installation, a special end bracket (Order No.
1805610000 MEW 35/1) must also be installed below the
station.
Manual u-control
1 2
2604080000/08/08.2023
