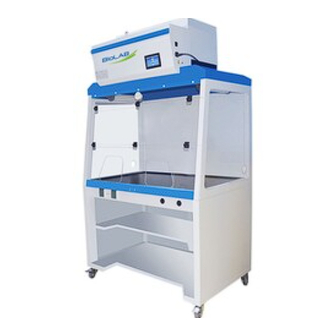

  • Page 1 Operation Manual BFSD-502 Ductless Fume Hood Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
  • Page 2 We sincerely hope that our products can bring the greatest help for your work. In order to let you be more familiar with the Ductless Fume Hood BFSD-502, please carefully read the manual firstly. Being familiar with the contents of this manual can ensure you operate the equipment safely and correctly! Please keep this manual properly.
  • Page 3 Ductless Fume Hood BFSD-502 Index 1. Unpacking, Installation, Debugging................04 2. User Instructions........................11 3. Trouble Shooting and Solution..................26 4. Warranty............................30 www.biolabscientific.com...

  • Page 4: Unpacking, Installation, Debugging

    Ductless Fume Hood BFSD-502 Unpacking, Installation, Debugging Please firstly check if the packing box is in good condition. If the packing box is damaged, please take photos. 1.1 Unpacking of Upper Cabinet box 1: Method 1 Use M8 Wrench to unpack (Figure1)
  • Page 5 Ductless Fume Hood BFSD-502 Figure 2 Quick unpacking diagram （ Remove the screws, as are shown below ， and then take the wooden box to the left. ） www.biolabscientific.com...
  • Page 6 Ductless Fume Hood BFSD-502 Figure 3 box2 Quick unpacking Cut the packing tape down with a scissors, remove the upper cover of the carton, and then move carton upwards. Figure 4 1.2 Unpacking of Lower Cabinet box 1 Unpack with M8 wrench or electric drill...
  • Page 7 Ductless Fume Hood BFSD-502 Figure 5 box 2 Cut the packing tape down with a scissors, remove the upper cover of the carton, and then move carton upwards. Figure 6 1.3 Accessories Check Please refer to the packing list, carefully check whether the accessories and information are complete.
  • Page 8 Ductless Fume Hood BFSD-502 BFSD 500 Series Fume Hood Packing List Upper cabinet ： Item Quantity Upper Cabinet 1set User Manual 1copy Quality Certificate Test Report 1copy Fuse 10A Power Cord Inner Hexagon Wrench Lower cabinet(optional) ： Item Quantity Lower Cabinet...
  • Page 9 Ductless Fume Hood BFSD-502 b) Check whether the outer surface of the host has scratches, deformations or foreign objects; c) Check carefully the accessories and information by referring to the packing list in the operating manual; d) Move the entire equipment to a site which is as close as possible to the position where the equipment is placed finally and convenient for installation;...
  • Page 10 Ductless Fume Hood BFSD-502 （ 3 ） Take the activated carbon filter from the paper package, and put it in the filter locating slot on the filter mounting panel, and then place the fan assembly above the activated carbon filter located in the bottom, and finally place the second activated carbon filter above the fan assembly.

  • Page 11: User Instructions

    Ductless Fume Hood BFSD-502 User Instructions 2.1 Functions 2.1.1 Product Concept In chemical laboratories, a lot of odors, moisture and corrosive substances will be generated during the experiment. To protect the safety of users and prevent the spread of pollutants in laboratories, fume hoods are used.
  • Page 12 Ductless Fume Hood BFSD-502 Figure 8 2.1.3 Protected Objects Safety is the biggest mission pursued by fume hoods. The use of fume hoods in laboratories is to ensure the safety of users and to prevent contamination of the laboratory environment.
  • Page 13 Note: (1) Power consumption does not include power consumption loaded by cabinet socket (load can not exceed 500W); (2) Biolab reserves all the rights to changes in product design, if there are any design change, we will not inform in advance.
  • Page 14 Ductless Fume Hood BFSD-502 Figure 9 Figure 10 1. Castor 8.Wind Speed Sensor 15.External Circuit Hole 2. Lower Cabinet (Optional) 9.Filter Mounting Panel 16. Hand Rack 3.Socket (Optional) 10. Chemical Filter 17. Rocker Switch 4.Control Valve for Water, Gas 11. Fan Assembly 18.
  • Page 15 Ductless Fume Hood BFSD-502 7.Front Window Acrylic 14. Side Panel Acrylic 21. VOC Sensor 2.2.2 Structure Composition Lighting Source Three anti-fluorescent lamp is used to ensure that the average illumination in the operating area is in line with standard requirements.
  • Page 16 Ductless Fume Hood BFSD-502 1.Power button: Under the power-on state, the icon color is green, at this time, the UV lamp, fluorescent lamp, fan, socket can be turned on and off; click the power button, and icon color turns to be red, indicting the equipment is powered off, at this time, the UV lamp, fluorescent lamp, fan, outlet can not be turned on, all components are close and the buttons have no response.
  • Page 17 Ductless Fume Hood BFSD-502 velocity is too low" Filter time display: The white area shows the fan working time, when the time is greater than 3000 hours, it will generate an alarm and prompt "please replace the filter." Filter time grid: As the filter time increases, the grid will slowly increase, when the grid is full, the cumulative filter time reaches 3000 hours.
  • Page 18 Ductless Fume Hood BFSD-502 1. User setting: User can set low air velocity alarm value and turn on/off the fan at specified time intervals 2. System setting: User can modify the fan gear, debug value, clear filter, UV lamp time.
  • Page 19 Ductless Fume Hood BFSD-502 1. Users can set low air velocity alarm value independently, one minute after the fan is turned on, if the air velocity is lower than the user-set low air velocity alarm value, the equipment will alarm.
  • Page 20 Ductless Fume Hood BFSD-502 5. Start button: Click this button to memorize the start/end time of fan set by the user, otherwise the value can not be memorized 6. Return button: Click this button to return to the main interface, and does not memorize the start/end time of fan set by the user.
  • Page 21 Ductless Fume Hood BFSD-502 5. Reset time: The rest interface will be switched into by clicking this button. 6. Ok button: Click the button, turn off the fan, memorize fan gear with the debug value adjusted by user, otherwise, the fan gear and the debug value adjusted by the user can not be memorized.
  • Page 22 Ductless Fume Hood BFSD-502 1.Reset UV time: Click the button, the UV lamp cumulative time on the main interface will be reset. 2. Reset Filter Time: Click the button, the filter cumulative time on the main interface and the filter cumulative time will be reset.
  • Page 23 Ductless Fume Hood BFSD-502 4. Back button: Click to save the VOC display value intermediate variable and alarm value before modification, and return to the setting interface. 2.3 Daily Maintenance Maintenance should be done every year or every 1000 work hours, and every restart.
  • Page 24 Ductless Fume Hood BFSD-502 2.4 Replacement Parts List BFSD 500 Series Fume Hood Replacement Parts List Item Specification Fuse anti-fluorescent Lamp 220V 8W*2 EC 125W BFSD 500 Series Fume Hood Main Control Panel Control Panel BFSD-501/BFSD-502: 750*400*75mm*2 BFSD-503/BFSD-504: Filter 750*400*75mm*4 BFSD-501/BFSD-502: T8 20W UV Lamp （...
  • Page 25 Ductless Fume Hood BFSD-502 2.5 Wiring Diagram www.biolabscientific.com...

  • Page 26: Trouble Shooting And Solution

    Ductless Fume Hood BFSD-502 Trouble Shooting and Solution 3.1 Trouble Shooting Please confirm whether the power is well connected, the power cord and fuse are in good condition(without any damage). 1 、 Check whether the equipment is well grounded according to the instructions in the manual to ensure the safety of maintenance and use.
  • Page 27 Ductless Fume Hood BFSD-502 Power cord Check whether power cord has obvious damage Fuse Check if the fuse is good equipment Transformer Check whether the transformer works normally Control panel Replace the control panel Connection Check if connection winding displacement is...
  • Page 28 （ 2 ） When the equipment has a failure which is not listed above, and the operator can not immediately rule out, please immediately notify Biolab maintenance department, for your safety, please do not repair equipment by yourself;...
  • Page 29 Ductless Fume Hood BFSD-502 Note ： 5A fuse indication label is located below the socket fuse holder. 10A fuse indication label is located below the power socket. 3.2.2 Ground label （ Figure 15 ） Figure 15 www.biolabscientific.com...

  • Page 30: Warranty

    1) Warranty is 12 months from EX-factory date (excluding consumable accessories: UV lamp, LED lamp and fuse). 2) Biolab would not be liable for any repair of damage caused by improper operation. 3) If the warranty has been expired, Biolab would still responsible for repair with relative charges.
  • Page 31 Ductless Fume Hood BFSD-502 Email: contact@biolabscientific.com Website: www.biolabscientific.com www.biolabscientific.com...
