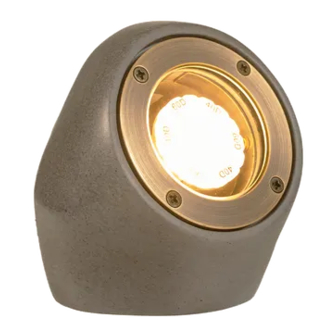

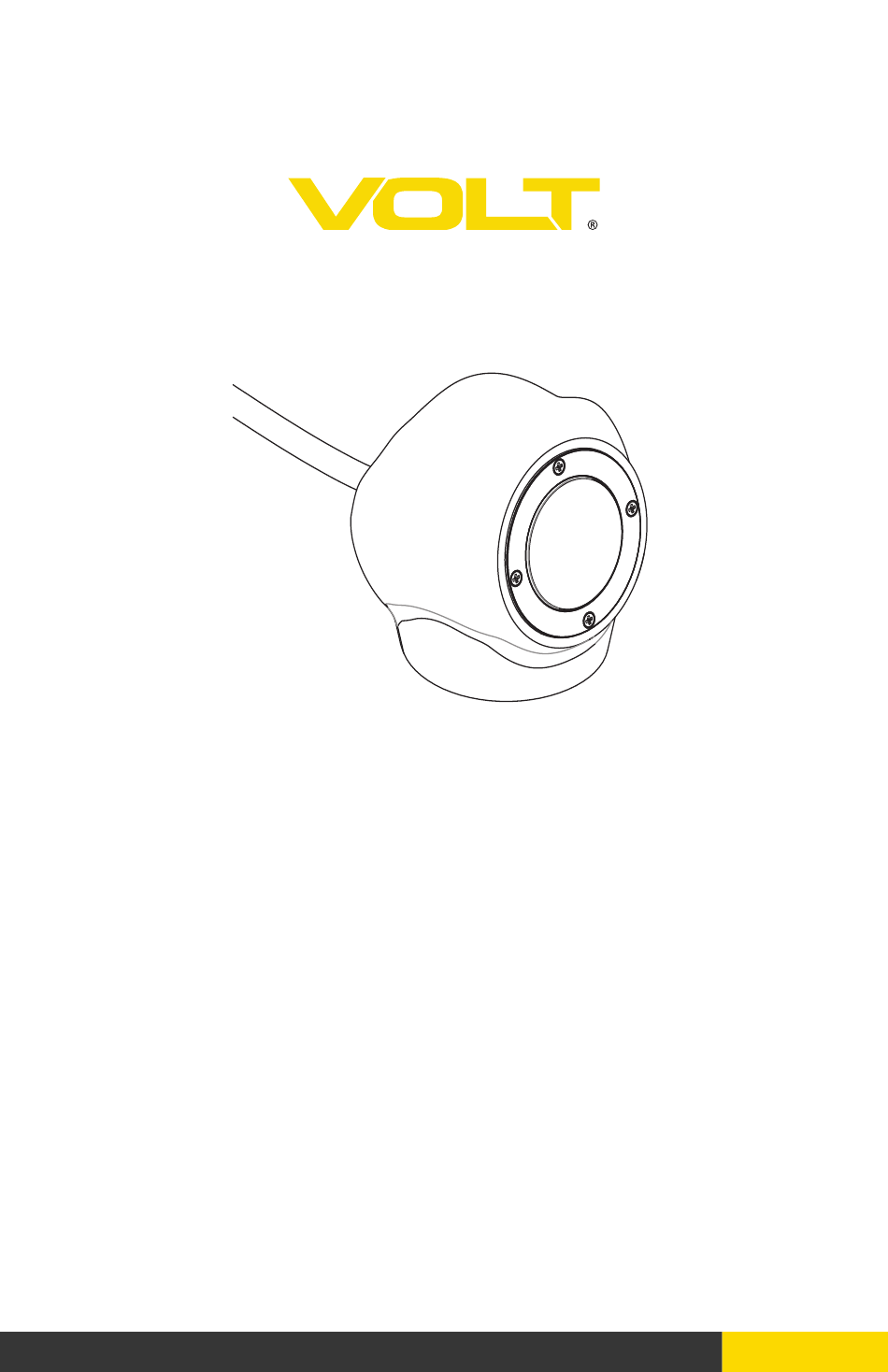

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT MR11 Decorative Rock Light ® ITEM: VAL-2050-4-BBZ-R1 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT - VAL-2050-4-BBZ-R1 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body B. (1) Allen Wrench PARTS (SOLD SEPARATELY) A. (1) Mounting Spike PRODUCT DIMENSIONS 4.53” 3.94” 3.94” 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com... - Page 4 INSTALLATION INSTRUCTIONS VOLT MR11 Decorative Rock Light - VAL-2050-4-BBZ-R1 ® REMOVE RING AND LENS WITH GASKET Lens with Gasket Allen Wrench Fixture Ring Body Screw By using the screwdriver end of the Allen wrench, loosen four screws and remove them from the fixture body. Remove the ring and the lens with gasket.
- Page 5 INSTALL LENS WITH GASKET AND RING Lens with Gasket Allen Wrench Fixture Body Ring Screw Place the lens with gasket and the ring back onto the fixture body. By using the screwdriver end of the Allen wrench, thread previously removed four screws back onto the fixture body.
-
Page 6: Wire Connections
INSTALLATION INSTRUCTIONS VOLT MR11 Decorative Rock Light - VAL-2050-4-BBZ-R1 ® INSTALL FIXTURE BODY INTO SOIL Determine the desired location for mounting the Fixture Body fixture body. Insert the spike into the soil completely. Spike (Sold Separately) Ground Soil WIRE CONNECTIONS... - Page 7 INSTALL/REPLACE MR11 LAMP Please reverse Step 2 - Step 3 to expose the MR11 lamp and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the lens with gasket and the ring. IMPORTANT: The MR11 lamp must be protected from moisture and dust at all times.
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
