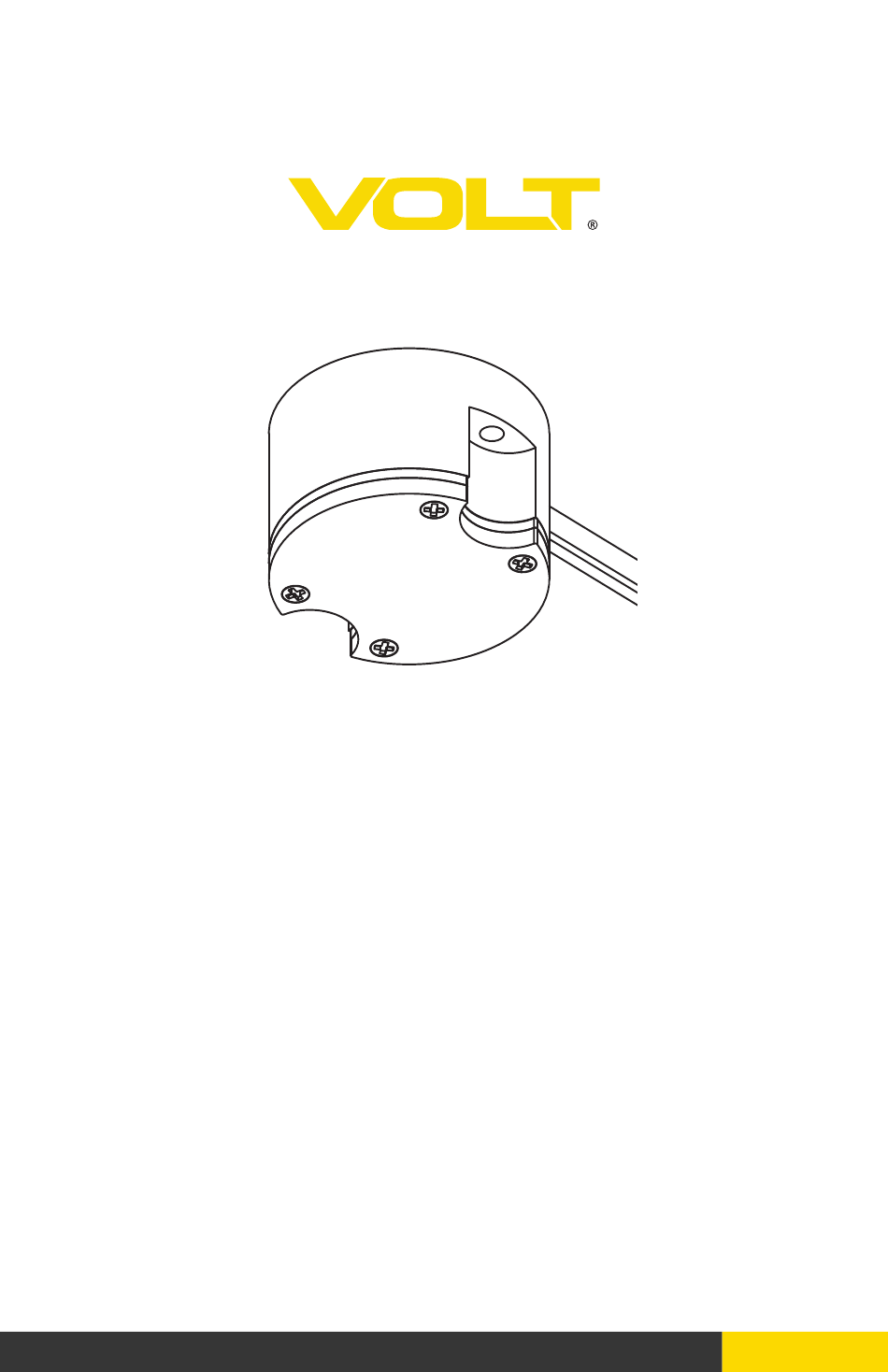

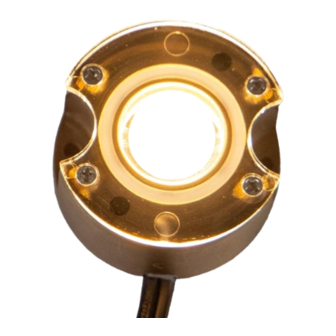

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT G2 BuddyPro LED Brass Pucklight ® ITEM: VHS-6732 & VHS-6733 & VHS-6734 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT G2 BuddyPro LED Brass Pucklight - VHS-6732 & VHS-6733 & VHS-6734 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Puck Light C. (1) Diffused Lens B. (1) Frosted Lens PRODUCT DIMENSIONS 1.5” 0.91” *** NOTE*** FIXTURE MUST BE MOUNTED IN AN INVERTED POSITION - FACING DOWNWARD SURFACE MOUNT Attach the puck light to a flat mounting surface (railing, shelf, counter, bench, etc.). -
Page 4: Recessed Mount
INSTALLATION INSTRUCTIONS VOLT G2 BuddyPro LED Brass Pucklight - VHS-6732 & VHS-6733 & VHS-6734 ® RECESSED MOUNT Supply Cable 1. Using a 1.5” core drill bit, drill one about 1” depth hole in the desired flat surface. MOUNTING SURFACE 2. Using a 3/8” core drill bit, drill a hole through the mounting D1.5”... - Page 5 HOW TO REPLACE LENS There are three lens provided with product. Clear lens has been installed on the product as default lens, which can be replaced with frosted lens or diffused lens by using the following steps. Frosted Lens Diffused Lens REMOVE CLEAR LENS FROM PUCK LIGHT By using screwdriver, remove screws on the puck light to take...
- Page 6 INSTALLATION INSTRUCTIONS VOLT G2 BuddyPro LED Brass Pucklight - VHS-6732 & VHS-6733 & VHS-6734 ® 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 7 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
Need help?
Do you have a question about the G2 BuddyPro and is the answer not in the manual?
Questions and answers
How do I get the transformer to install VOLT® G2 Buddypro™ Shielded Brass LED Puck Light
1. Ensure the power is turned OFF before installation.
2. Lay out the supply cable from the transformer.
3. Strip both leads from the luminaire pigtail.
4. Connect the leads from the luminaire supply cable to the transformer (sold separately).
5. Use wire connectors suitable for outdoor use to secure the connections.
6. Make sure the transformer is rated for a maximum of 300 watts (25 AMPS) at 15 volts.
7. Keep all luminaires at least 10 feet (3.05M) away from pools, spas, or fountains.
