INSTALLATION INSTRUCTIONS
VOLT
®

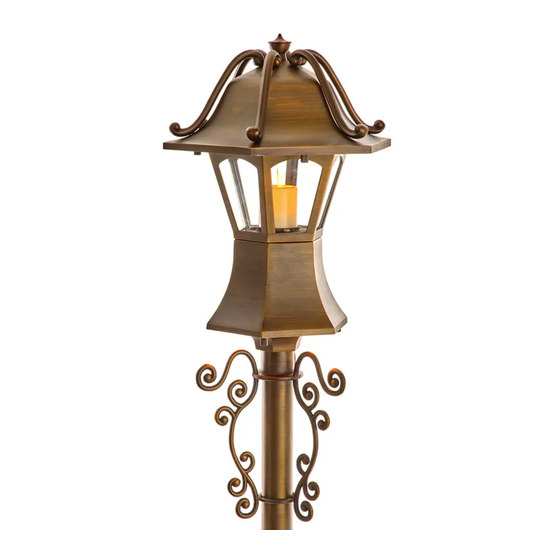

Coachman Path and Area light
VPL-1006
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2016, VOLT
reserved. customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting
Lighting, Lutz FL USA 33549 • All rights
®
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the VPL-1006 and is the answer not in the manual?

Questions and answers

Related Manuals for Volt VPL-1006

Summary of Contents for Volt VPL-1006

  • Page 1 VPL-1006 Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2016, VOLT Lighting, Lutz FL USA 33549 • All rights ® reserved. customersupport@voltlighting.com • 813.978.3700 - 1 -...

  • Page 2: Important Safety Instructions

    VPL-1006 A. (1) Fixture Flame Bi-Pin Candle B. (1) Stem D. (1) VOLT XL Hammer Stake Important: Please Read Before Installation This luminaire is intended for installation in accordance with local Additional Parts Required (Sold Separately) codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage A.
  • Page 3 INSTALLATION INSTRUCTIONS Reinstall Hat Cage Assembly VOLT Coachman Path and Area light ® Hat Cage VPL-1006 After installing the LED lamp into Assembly the socket, place the hat cage assembly back onto the cage Remove the Hat Cage Assembly mount at the top of the support stem assembly.
  • Page 4 INSTALLATION INSTRUCTIONS Install Rod VOLT Coachman Path and Area light ® Pass supply wires through the stem VPL-1006 extension and thread the stem extension onto the support stem Install LED Bi-Pin Candle assembly. Hand tighten until snug. Led Bi-Pin Insert Ultra Realistic LED...
  • Page 5 INSTALLATION INSTRUCTIONS Wire Connections VOLT Coachman Path and Area light ® VPL-1006 Pigtail Silicone Filled Install Fixture to Stake Safety Connectors Main Supply Cable Clear away area in ground at wireway slot in top of stake. Lay luminaire pigtail into wireway slot and screw stem into stake until tight.
  • Page 6 - 10 - - 11 -...
  • Page 7 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2016, VOLT Lighting, Lutz FL USA 33549 • All rights ®...
