INSTALLATION INSTRUCTIONS
VOLT
®

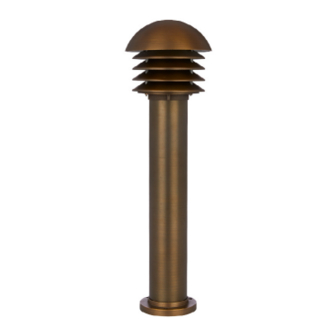

12V Mini Rotunda Bollard
VPL-1041-4-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2019, VOLT
customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Related Manuals for Volt VPL-1041-4-BBZ
Summary of Contents for Volt VPL-1041-4-BBZ
- Page 1 VPL-1041-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT 12V Mini Rotunda Bollard ® VPL-1041-4-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Product Dimensions
Package Contents A. (1) Fixture Body B. (1) Coupler Product Dimensions 7.1” 23.75” 4.72” Two installation options are available for this fixture. 1. Stake mount (option 1): Step 1 - Step 2, then go to Step 4. 2. Surface mount (option 2): Step 3, then go to Step 4. customersupport@voltlighting.com •... - Page 4 INSTALLATION INSTRUCTIONS VOLT 12V Mini Rotunda Bollard ® VPL-1041-4-BBZ Stake Mount (Option 1) Install Stake Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid...
-
Page 5: Wire Connections
Surface Mount (Option 2) Install Fixture Body with Self-tapping Screws Place the fixture body on the desired location and make three Fixture Body marks on the ground using the holes on the base. Remove the fixture body and drill proper holes into the Self-tapping ground. -
Page 6: Install Lamp
INSTALLATION INSTRUCTIONS VOLT 12V Mini Rotunda Bollard ® VPL-1041-4-BBZ Remove Fixture Top Rotate Rotate the fixture top and remove it from the fixture body. Fixture Top Fixture Body Install Lamp Insert the lamp with correct Lamp wattage and type marked on the fixture label and secure tightly into place. - Page 7 Install Fixture Top Rotate Thread the fixture top back onto the fixture body. Hand tighten until snug. Fixture Top Fixture Body Install/Replace Lamp Please reverse Step 5 - Step 7 to expose the lamp and replace it with the correct wattage and type marked on the fixture label. And then reinstall the fixture top.
- Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
