Volt VWL-705-BBZ Installation Instructions

Low voltage landscape lighting, well light

Download this manual

INSTALLATION INSTRUCTIONS

VOLT

VWL-705-BBZ

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

Specifications and product details subject to change without notice.

reserved. customersupport@voltlighting.com • 813.978.3700

Low Voltage Landscape Lighting

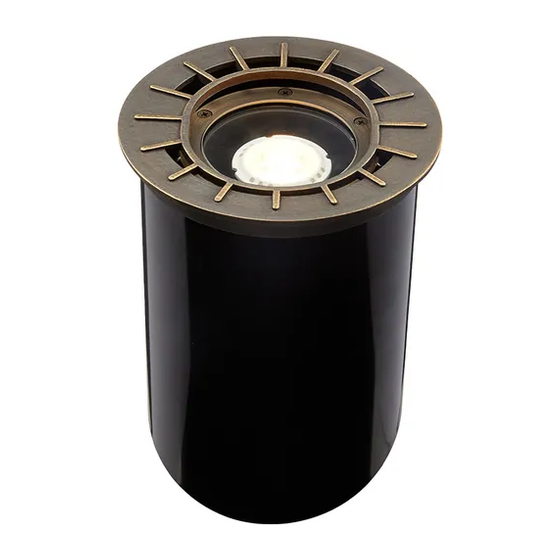

Salty Dog Brass MR16 Well Light

Lighting, Lutz FL USA 33549 • All rights

–1–

Need help?

Do you have a question about the VWL-705-BBZ and is the answer not in the manual?

Page 1 VWL-705-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights ® reserved. customersupport@voltlighting.com • 813.978.3700 –1–...
Page 2 Salty Dog Brass MR16 Well Light ® A. (1) Fixture B. (1) PVC Tube VWL-705-BBZ Important: Please Read Before Installation Parts Required (sold separately) This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these A.
Page 3 INSTALLATION INSTRUCTIONS Install Lens and Faceplate VOLT Salty Dog Brass MR16 Well Light ® Place the lens, gasket and VWL-705-BBZ faceplate back onto the housing. Secure them with the screws Screw Remove Faceplate and Lens previously removed. Hand tighten Faceplate...
Page 4 INSTALLATION INSTRUCTIONS VOLT Salty Dog Brass MR16 Well Light ® VWL-705-BBZ Fill Pea Gravel or Sand PVC Tube Pea Gravel Install the PVC tube with with Fixture or Sand fixture in the hole and fill the extra space with pea gravel or sand for proper water drainage.
