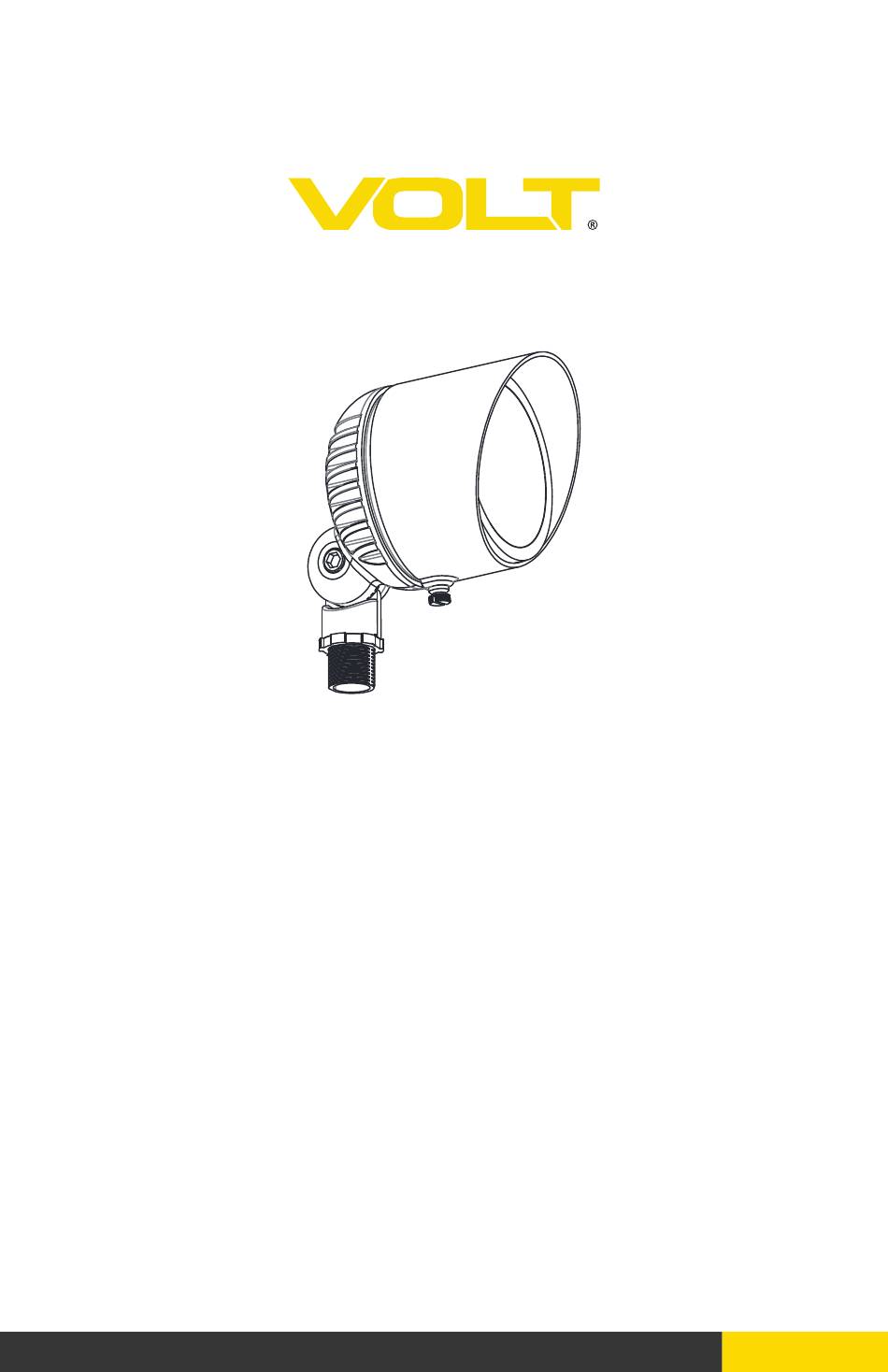

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT RGBCW or CW RF Spot Light ® ITEM: VAL-2051 & VAL-2052 & VAL-2053 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- Page 2 VOLT RGBCW or CW RF Spot Light ® VAL-2051 & VAL-2052 & VAL-2053 IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS C. (1) Allen Wrench A. (1) Fixture Body B. (1) 60° Lens PARTS REQUIRED (SOLD SEPARATELY) A. (1) Mounting Accessory B. (1) RF Remote Controller (Part #: VAC-REMOTE-RF1) PRODUCT DIMENSIONS 3.35” 1.9” 3.2” 1.86” 2.76” NOTE: The RGBCW or CW LED module may or may not included. 813.978.3700 •...
- Page 4 INSTALLATION INSTRUCTIONS VOLT RGBCW or CW RF Spot Light ® VAL-2051 & VAL-2052 & VAL-2053 INSTALL FIXTURE BODY TO STAKE Pass the supply wires of Fixture Body the fixture body through the wireway slot on the stake. Thread the fixture body onto Wireway Slot the stake.
- Page 5 ADJUST FIXTURE DIRECTION Using the Allen wrench, loosen the screw at the joint and Fixture adjust the fixture to the desired direction. Once the desired ROTATE direction is achieved, tighten the Allen screw. Wrench Screw Please refer to the “REMOTE CONTROL INSTRUCTIONS” for the remote functions.
- Page 6 INSTALLATION INSTRUCTIONS VOLT RGBCW or CW RF Spot Light ® VAL-2051 & VAL-2052 & VAL-2053 REPLACE LENS 1. Twist the cover to remove it Cover from the LED module. 2. Remove the existing lens. 3. Check to make sure the Lens gasket is installed in place.
- Page 7 INSTALL GLARE GUARD Glare Guard Install the glare guard back onto the fixture body and secure with the previously removed set screw. Set Screw Fixture Body HOW TO INSTALL LED MODULE REMOVE GLARE GUARD Glare Guard Loosen the set screw and remove the glare guard from the fixture body.
- Page 8 INSTALLATION INSTRUCTIONS VOLT RGBCW or CW RF Spot Light ® VAL-2051 & VAL-2052 & VAL-2053 CONNECT LED MODULE 1. Strip both leads from LED Module fixture wire inside of the fixture body. 2. Open the lever above the Terminal Block free port on one terminal block.
- Page 9 INSTALL TOP Thread the top back onto the fixture body. Fixture Body INSTALL GLARE GUARD Glare Guard Install the glare guard back onto the fixture body and secure with the previously removed set screw. Set Screw Fixture Body 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 10 VOLT RGBCW or CW RF Spot Light ® VAL-2051 & VAL-2052 & VAL-2053 REMOTE CONTROLLER INSTRUCTIONS Note: The RGB color wheel on the remote will only control the RGBCW RF LED module. If you use the RGB color wheel with the CW RF LED module the module will turn off.
- Page 11 INSTALL AAA BATTERIES Open the battery cover, install two AAA 1.5V batteries into the battery compartment. Pay Back of Remote attention to the “+”/“-” polarities Controller of the battery when installing. Always reinstall the battery cover after installing AAA 1.5V batteries. Battery Compartment AAA Battery...
- Page 12 INSTALLATION INSTRUCTIONS VOLT G5 RGBCW or CW RF Spot Light ® VAL-2051 & VAL-2052 & VAL-2053 PAIR CODES TO REMOTE CONTROL (CONTINUED) 4. Using the same process you can pair additional fixtures to the same or different zones. Note: 1. Please ensure light(s) are within range of the remote controller.
- Page 13 ADJUST BRIGHTNESS 1. Select the desired lights by ALL ON ALL OFF pressing the zone to which they have been assigned. 2. Press the brightness increase button to increase the light Brightness Brightness brightness, or press the Decrease Increase brightness decrease button to decrease the light brightness.
- Page 14 INSTALLATION INSTRUCTIONS VOLT G5 RGBCW or CW RF Spot Light ® VAL-2051 & VAL-2052 & VAL-2053 QUICK COLOR TEMPERATURE ADJUSTMENT The preset color temperatures of the ALL OFF ALL ON CCT button are 2200K, 27000K, 3000K and 4000K. 1. Select the lights by pressing the zone they are in.
- Page 15 CONTROL BY GROUP ALL OFF ALL ON ALL OFF 1. To control lights by group, Select the lights by pressing the zone they are in. And then press respective function buttons to adjust the lights. ZONE ZONE UNPAIR LIGHTS If you need to re-pair the light(s) that have ALL OFF ALL ON already been paired to a different zone, they...
- Page 16 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2024, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
