INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT

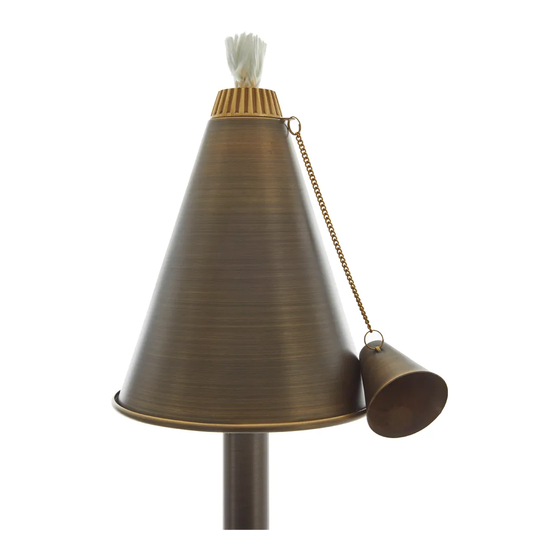

2-in-1 Tiki-Brass Torch Light
®
VPL-380-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2017, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
Advertisement
Table of Contents
Related Manuals for Volt 2-in-1 Tiki-Brass Torch Light
Summary of Contents for Volt 2-in-1 Tiki-Brass Torch Light
- Page 1 INSTALLATION INSTRUCTIONS VOLT Low Voltage Landscape Lighting ® VOLT 2-in-1 Tiki-Brass Torch Light ® VPL-380-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2017, VOLT Lighting, Lutz FL USA 33549 •...
- Page 2 INSTALLATION INSTRUCTIONS VOLT 2-in-1 Tiki-Brass Torch Light ® VPL-380-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Stem C. (1) Lamp B. (1) Shade Assembly Product Dimensions 7.75” 11” 61” Install Stake Board Determine the desired location for mounting the luminaire. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering.
- Page 4 INSTALLATION INSTRUCTIONS VOLT 2-in-1 Tiki-Brass Torch Light ® VPL-380-BBZ Install Rod to Stake Clear away an area in the ground at the wireway slot on the top of the Stem stake. Lay the luminaire pigtail into the wireway slot and screw the stem onto the stake.
- Page 5 Install Bulb Insert the lamp with the correct wattage and type marked on the luminaire label. Lamp CAUTION: Do not exceed maximum Socket wattage marked on luminaire label. NOTE: DO NOT touch lamp with bare hands. Use soft cloth to handle lamp. Install Shade Assembly Attach the shade assembly onto the top end of the stem as shown.
- Page 6 INSTALLATION INSTRUCTIONS VOLT 2-in-1 Tiki-Brass Torch Light ® VPL-380-BBZ How to Fill Fuel Oil Install Shade Remove the cap from the top end of the shade assembly. Shade Assembly Remove Shade Remove the washer with the cap and the shade from the fuel container by unscrewing the lid.
- Page 7 Fill Fuel Oil Pour tiki fuel in the fixture’s fuel container as shown. Never use gasoline, kerosene, or other flammable fuels. Tiki Fuel Fuel Container Reinstall Shade and Cap Place the shade and the washer back onto the container. Insert the wick inside of the fuel container and tighten Wick the lid until snug.
- Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2017, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
