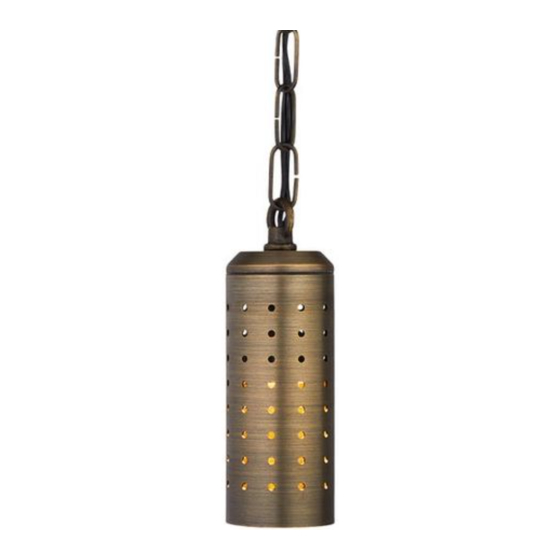

Tranquility Brass LED Hanging Light
Lighting, Lutz FL USA 33549 • All rights
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Volt VAL-9501-4036-BBZ
Summary of Contents for Volt VAL-9501-4036-BBZ
- Page 1 ® VAL-9501-4036-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2018, VOLT Lighting, Lutz FL USA 33549 • All rights ® reserved. customersupport@voltlighting.com • 813.978.3700...
- Page 2 INSTALLATION INSTRUCTIONS VOLT Tranquility Brass LED Hanging Light ® VAL-9501-4036-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body C. (1) Quick Link B. (1) Fixture Chain D. (1) Mounting Bracket Parts Required (sold separately) D. (1) LED MR16 Lamp A. (3) Self-tapping Screws E. (1) Low Voltage Transformer B. (3) Wall Anchors F.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Tranquility Brass LED Hanging Light ® VAL-9501-4036-BBZ Remove Shade Unscrew the shade and remove it from Shade the shade holder to expose the socket. Holder Shade Install Lamp Insert the lamp with the correct wattage and type marked on the fixture label.
- Page 5 Install Mounting Bracket Attach the mounting bracket Ceiling onto the desired ceiling surface. Secure with the flat washers and Wall Anchor self-tapping screws. (sold separately) Note: Wall anchors are Mounting required for certain installation Bracket conditions (concrete or brick Flat Washer walls).
- Page 6 INSTALLATION INSTRUCTIONS VOLT Tranquility Brass LED Hanging Light ® VAL-9501-4036-BBZ Wire Connections Transformer (sold seperately) Supply Wire Pigtail Fixture Body Lay out the supply cable to the transformer. Strip both leads from the luminaire pigtail. Connect the leads from the luminaire supply cable to the transformer (sold separately).
- Page 7 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2018, VOLT Lighting, Lutz FL USA 33549 • All rights ®...
