INSTALLATION INSTRUCTIONS
VOLT
®
VOLT
®
VFL-4601-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyrigwht 2017, VOLT
reserved. customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting

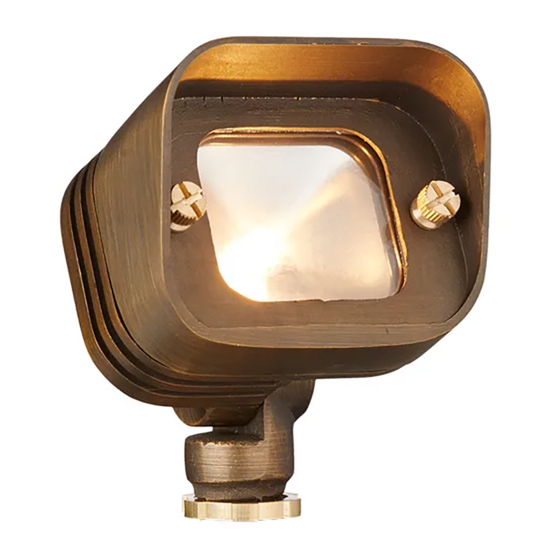

Integrated LED Gentle Splash
Lighting, Lutz FL USA 33549 • All rights
®
- 1 -
Advertisement
Related Manuals for Volt VFL-4601-BBZ
Summary of Contents for Volt VFL-4601-BBZ
- Page 1 VFL-4601-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyrigwht 2017, VOLT Lighting, Lutz FL USA 33549 • All rights ® reserved. customersupport@voltlighting.com • 813.978.3700 - 1 -...
-
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT Integrated LED Gentle Splash ® VFL-4601-BBZ Important: Please Read Before Installation This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture Body B. (1) Stake Product Dimensions 3.25” 2.5” 2.5” 1.5” Install Stake Determine your desired location for Board mounting the fixture. Hammer the stake into the ground until the flange of the stake is flush to grade. To avoid damage to the stake, place a board on Stake top of the stake while hammering.
- Page 4 INSTALLATION INSTRUCTIONS VOLT Integrated LED Gentle Splash ® VFL-4601-BBZ Install Fixture Body to Stake Clear away the area on the Fixture Body ground at the wireway slot in top of stake. Lay the luminaire pigtail Wireway Slot into the wireway slot and thread the fixture into stake.
- Page 5 Adjust Fixture Body Use the included Allen wrench to unlock the set screw and adjust Fixture the fixture body to your desired Body direction. Tighten the set screw once your desired angle is achieved. Set Screw Adjust Allen Wrench Replace Lens Remove Glare Guard with Lens Thumb Screw Unscrew thumb screws, then remove...
- Page 6 INSTALLATION INSTRUCTIONS VOLT Integrated LED Gentle Splash ® VFL-4601-BBZ Install Glare Guard with Lens Place glare guard and gasketed Thumb Screws lens back onto the fixture body and secure with the thumb screws Glare previously removed. Hand tighten Guard until snug.
- Page 7 customersupport@voltlighting.com • 813.978.3700 - 7 -...
- Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2017, VOLT Lighting, Lutz FL USA 33549 • All rights ®...
