INSTALLATION INSTRUCTIONS

VOLT

Low Voltage Landscape Lighting

VOLT

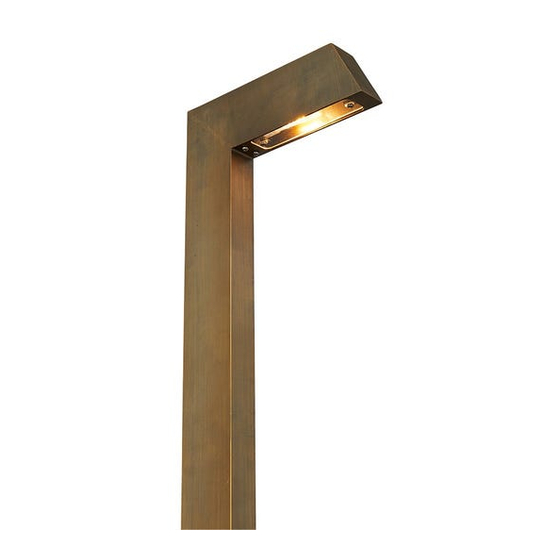

Modernelle Cast Brass Path & Area Light

VPL-1001-4-BBZ

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

Specifications and product details subject to change without notice.

customersupport@voltlighting.com • 813.978.3700

- 1 -

Need help?

Do you have a question about the VPL-1001-4-BBZ and is the answer not in the manual?

Page 1 VPL-1001-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
Page 2: Important Safety Instructions
INSTALLATION INSTRUCTIONS VOLT ® Modernelle Cast Brass Path & Area Light VPL-1001-4-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
Page 3 INSTALLATION INSTRUCTIONS Package Contents VOLT ® Modernelle Cast Brass Path & Area Light VPL-1001-4-BBZ A. (1) Fixture A. (1) Stake Parts Required Remove Diffuser from Fixture A. (1) LED Lamp (sold separately) Remove the diffuser from the Fixture fixture by unthreading the screws.
Page 4 Install Fixture to Stake Clear away an area in the ground at the wireway slot on top of the stake. Lay the luminaire pigtail into the wireway slot and screw the stem onto the stake. If the assembly does not look straight, Fixture adjust by pushing or pulling on the stake only.
