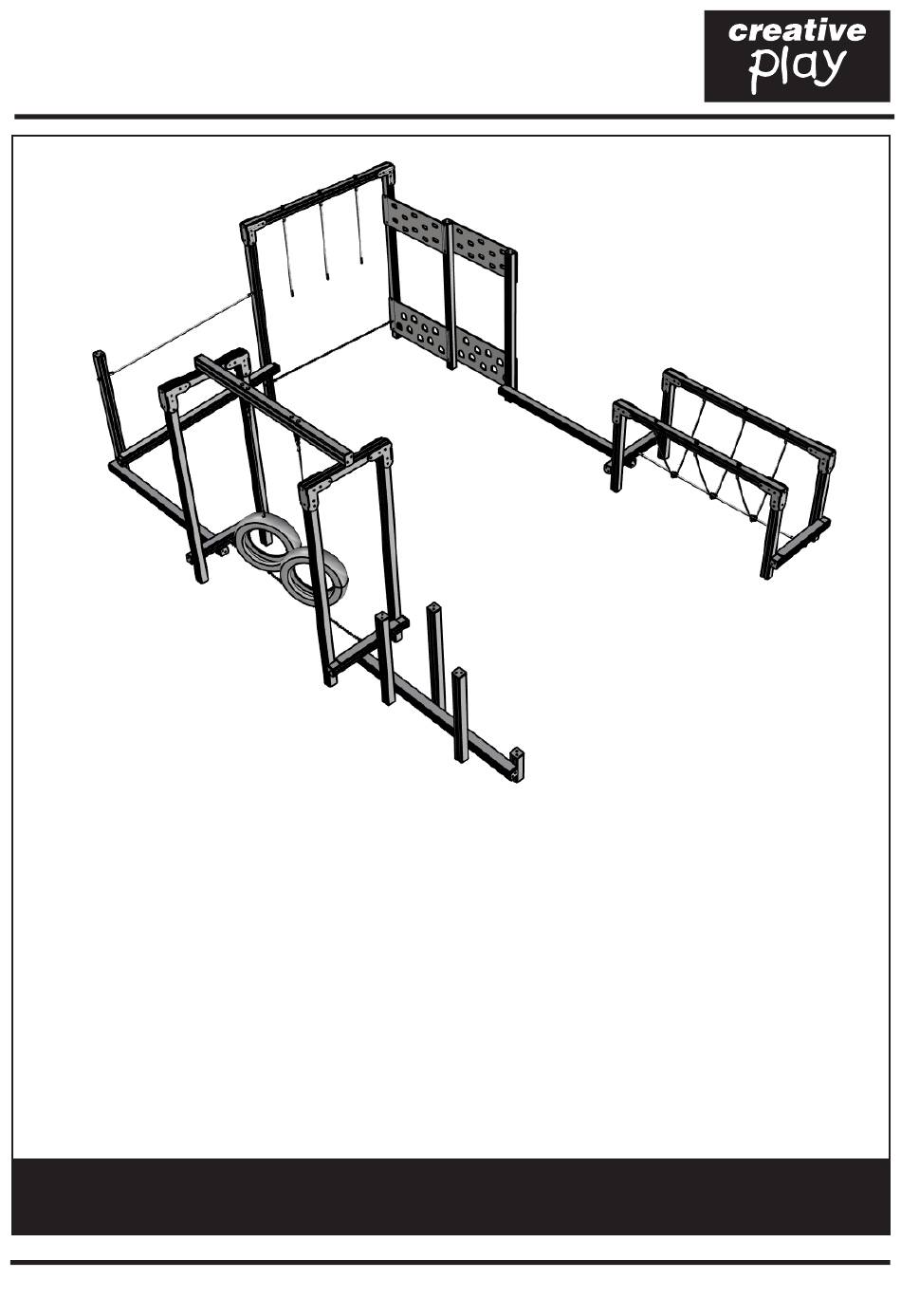

- Page 1 AT8-U - ADVENTURE TRAIL 8 U Installation Instructions INSTRUCTIONS SHOWN ARE FOR THE STANDARD AT8 - BUT THE GROUNDPLAN HAS BEEN REVISED TO CREATE THE U-SHAPE LAYOUT REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 1 of 22 18.05.22...
-
Page 2: Parts Required
PARTS REQUIRED UPRIGHT TIMBERS *PLEASE NOTE ALL H TIMBERS ARE PRE-ASSEMBLED WITH PLAYTEC L’s AND/OR HEXBOARD (AS SHOWN ABOVE) *PLEASE NOTE ALL H TIMBERS ARE PRE-ASSEMBLED WITH PLAYTEC L’s AND/OR HEXBOARD (AS SHOWN ABOVE) ADDITIONAL CODE SIZE INFORMATION AT - U1 1800 UPRIGHT TIMBER AT - U2... - Page 3 PARTS REQUIRED HORIZONTAL TIMBERS *PLEASE NOTE ALL H TIMBERS ARE PRE-ASSEMBLED WITH PLAYTEC L’s AND/OR HEXBOARD (AS SHOWN ABOVE) ADDITIONAL CODE SIZE START INFORMATION HORIZONTAL TIMBER AT - H1 END CAP END CAP (HEXA GRIP SLAT) PLAYTEC L’S AT - H2 2100 PLAYTEC L’S HORIZONTAL TIMBER...
- Page 4 PARTS REQUIRED CLIMBING PANELS (UPPER) CLIMBING PANELS (LOWER) ROPE BRIDGE SWINGING ROPES SWINGING ROPE CHAIN TRAVERSE ROPE 274.M12X200 656.M12 102003-01 - M12 REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 4 of 22 18.05.22...
- Page 5 PARTS REQUIRED 97.M8X80CSK M12 SOCKET NUT (50MM) 274.M12X220 CONSISTS OF SHACKLE / BOLT / NYLOC / CAP 349.742.D-SHACKLE ‘SET’ 274.M12X180 TYRE 625MM TYRE CHAIN (EYEBOLT) 740MM TYRE CHAIN REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 5 of 22 18.05.22...
- Page 6 PARTS REQUIRED 274.M12X230 REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 6 of 22 18.05.22...
-
Page 7: Foundation Details
FOUNDATION DETAILS REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 7 of 22 18.05.22... - Page 8 FOUNDATION DETAILS FOUNDATION - 400MM X 400MM X 750MM (150MM SOIL APPROX) REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 8 of 22 18.05.22...
-
Page 9: Surfacing Details
SURFACING DETAILS = MINIMUM SPACE = OVERALL AREA REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 9 of 22 18.05.22... -
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS INSTRUCTIONS SHOWN ARE FOR THE STANDARD AT8 - BUT THE GROUNDPLAN HAS BEEN REVISED TO CREATE THE U-SHAPE LAYOUT A) THE ORDER OF THE INSTALLATION INSTRUCTION HIGHLIGHT WHERE THE MAIN CHANGE OF ‘SHAPE’ STEP (9) - THIS TIMBER IS TO BE POSITONED AS SHOWN ABOVE AN ADDITIONAL HOLE WILL NEED TO BE DRILLED INTO THE PLAYTEC CLIMBING WALL PANEL STEP (15) - H7 TIMBER POSITOND AS SHOWN ABOVE... - Page 11 INSTALLATION INSTRUCTIONS POSITION THE UPRIGHT TIMBERS FOLLOWING FOUNDATION DETAILS ATTACH TIMBER H1 USING 274.M12X200 / 656.M12 / 102003-01, SECURE HEXBOARD WITH M8X80MM WOOD SCREWS REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 11 of 22 18.05.22...
- Page 12 INSTALLATION INSTRUCTIONS ATTACH H2 TIMBERS USING PLAYTEC L’S USING M8X80MM WOOD SCREWS, TAKE CARE THAT SCREWS DO NOT ‘CROSS’ ATTACH TIMBER H3 USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H3 HEXBOARD SLAT WILL NOT BE ATTACHED UNTIL STEP 7 REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 12 of 22 18.05.22...
- Page 13 INSTALLATION INSTRUCTIONS ATTACH ROPE BRIDGE USING 656.M12 / 102003-01 ATTACH TIMBER H4 AND LOWER PLAYTEC CLIMBING PANEL SHOWN USING 274.M12X180 & 220 / 656.M12 / 102003-01 AND M8X80MM WOOD SCREWS 180 BOLT BOLT NOTES: ATTACH PANEL ON OPPOSITE FACE TO BEAM ONE LOWER PLAYTEC PANEL HAS HOLE DRILLED FOR BOLT (SEE CNC)
- Page 14 INSTALLATION INSTRUCTIONS ATTACH H3 HEXBOARD SLAT USING 8X80MM WOOD SCREWS TO COVER COUNTERSUNK BOLT ATTACH REMAINING 3 PLAYTEC CLIMBING PANELS USING 8X80MM WOOD SCREWS NOTES: ENSURE SECOND SET OF PANELS ARE ON OPPOSITE FACE TO FIRST NOTES: THIS PANEL IS ALREADY ATTACHED AS PER STEP 6 REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 14 of 22...
- Page 15 INSTALLATION INSTRUCTIONS ATTACH TIMBER H5 USING PLAYTEC L’S USING 8X80MM WOOD SCREWS ATTACH SWINGING ROPES TO TIMBER H5 USING 656.M12 / 102003-01 REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 15 of 22 18.05.22...
- Page 16 INSTALLATION INSTRUCTIONS ATTACH SWINGING ROPE CHAIN USING M12 X 50MM SOCKET NUT, D - SHACKLE AND EYEBOLT SHOULD BE PRE-ATTACHED TO CHAIN ATTACH TIMBER H6 USING 274.M12X200 / 656.M12 / 102003-01 REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 16 of 22 18.05.22...
- Page 17 INSTALLATION INSTRUCTIONS ATTACH TRAVERSE ROPE ABOVER TIMBER H6 USING 656.M12 / 102003-01 ATTACH H8 TIMBERS USING 274.M12X200 / 656.M12 / 102003-01 NOTES: H8 HEXBOARD SLATS WILL NOT BE ATTACHED UNTIL STEP 21 REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 17 of 22 18.05.22...
- Page 18 INSTALLATION INSTRUCTIONS ATTACH TIMBER H7 USING 274.M12X180 & 200 / 656.M12 / 102003-01 ATTACH H9 TIMBERS USING PLAYTEC L’S USING 8X80MM WOOD SCREWS REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 18 of 22 18.05.22...
- Page 19 INSTALLATION INSTRUCTIONS ATTACH TIMBER H10 USING 274.M12X230 / 656.M12 / 102003-01 230 BOLT ATTACH TYRES USING D - SHACKLE SETS AS SHOWN REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 19 of 22 18.05.22...
- Page 20 INSTALLATION INSTRUCTIONS ATTACH TYRE CHAINS USING M12 X 50MM SOCKET NUT ON EYEBOLT CHAINS & D- SHACKLE SETS ON MIDDLE CHAINS NOTES: REPEAT EYEBOLT CHAIN ON BOTH SIDES ATTACH MIDDLE CHAINS TO TYRES AS SHOWN ENSURE CHAIN IS POSITION ON INSIDE OF D - RING REMOVE LINKS IF NECESSARY ATTACH TIMBER H11 TO WEAVING POST UPRIGHTS...
- Page 21 INSTALLATION INSTRUCTIONS ATTACH H8 HEXBOARD SLATS USING 8X80MM WOOD SCREWS REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 21 of 22 18.05.22...
-
Page 22: Additional Dimensions
ADDITIONAL DIMENSIONS REF: AT8-U - ADVENTURE TRAIL 8 - U SHAPED pg 22 of 22 18.05.22...
