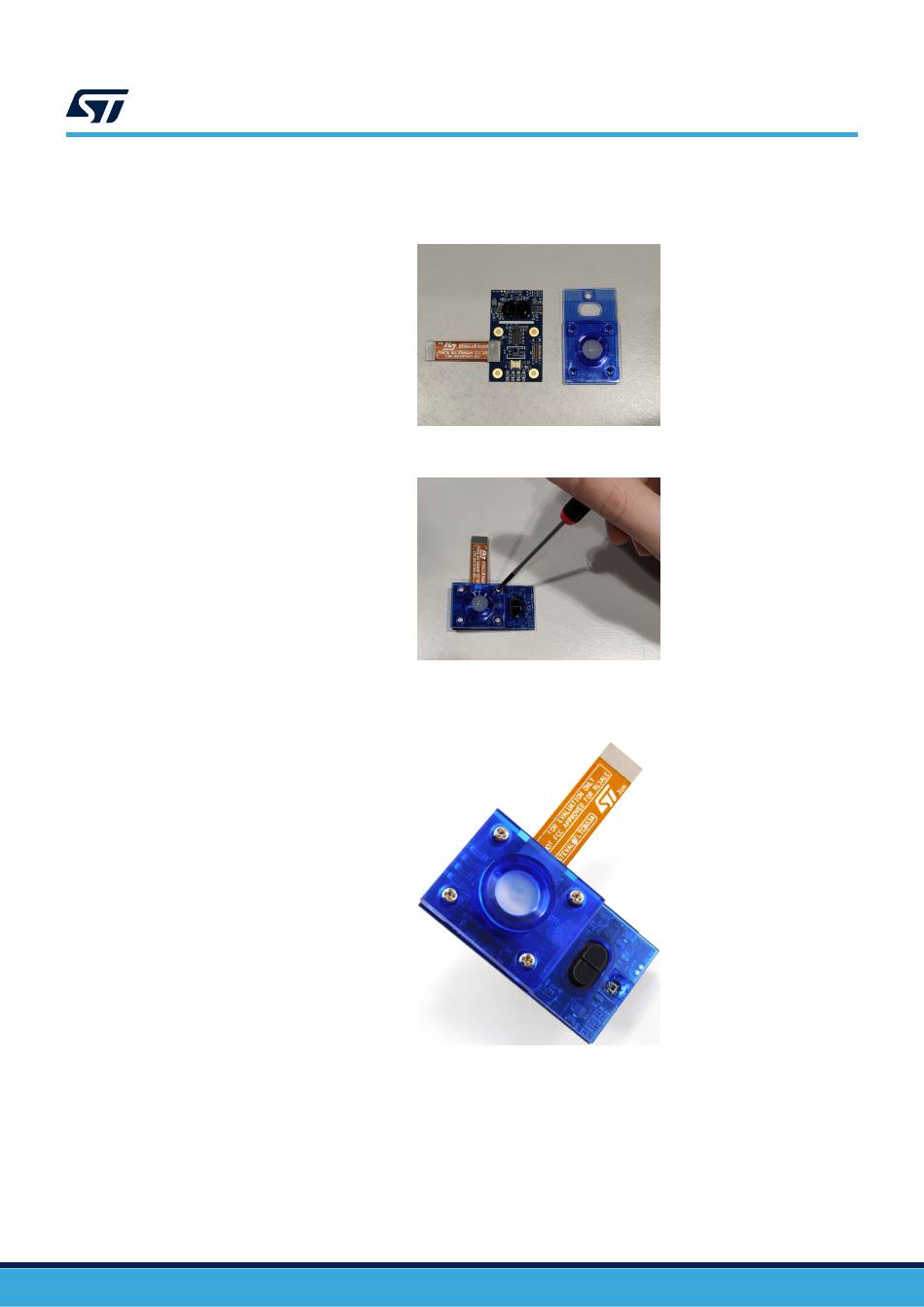

Figure 10. Flex Cable; Figure 11. Case On Top; Figure 12. Board Ready - ST STEVAL-PDETECT1 User Manual

Step 3. Insert the flex cable on the PDETECT board, place the screws in the four holes and put the case on top
of the board
Step 4. Once fixed the screws, the board is ready to be used
UM3320 - Rev 1
Figure 10. Flex cable
Figure 11. Case on top
Figure 12. Board ready
UM3320
Getting started
page 8/22
