Features
■
Embedded Ethernet web client based on the
STR91 system package
■
Board fitted with TFT, microSD card, and
keypad
■
System pre-programmed
■
Can display images from the web
■
Includes set of sample images to work with
web server
■
RoHS compliant
Description

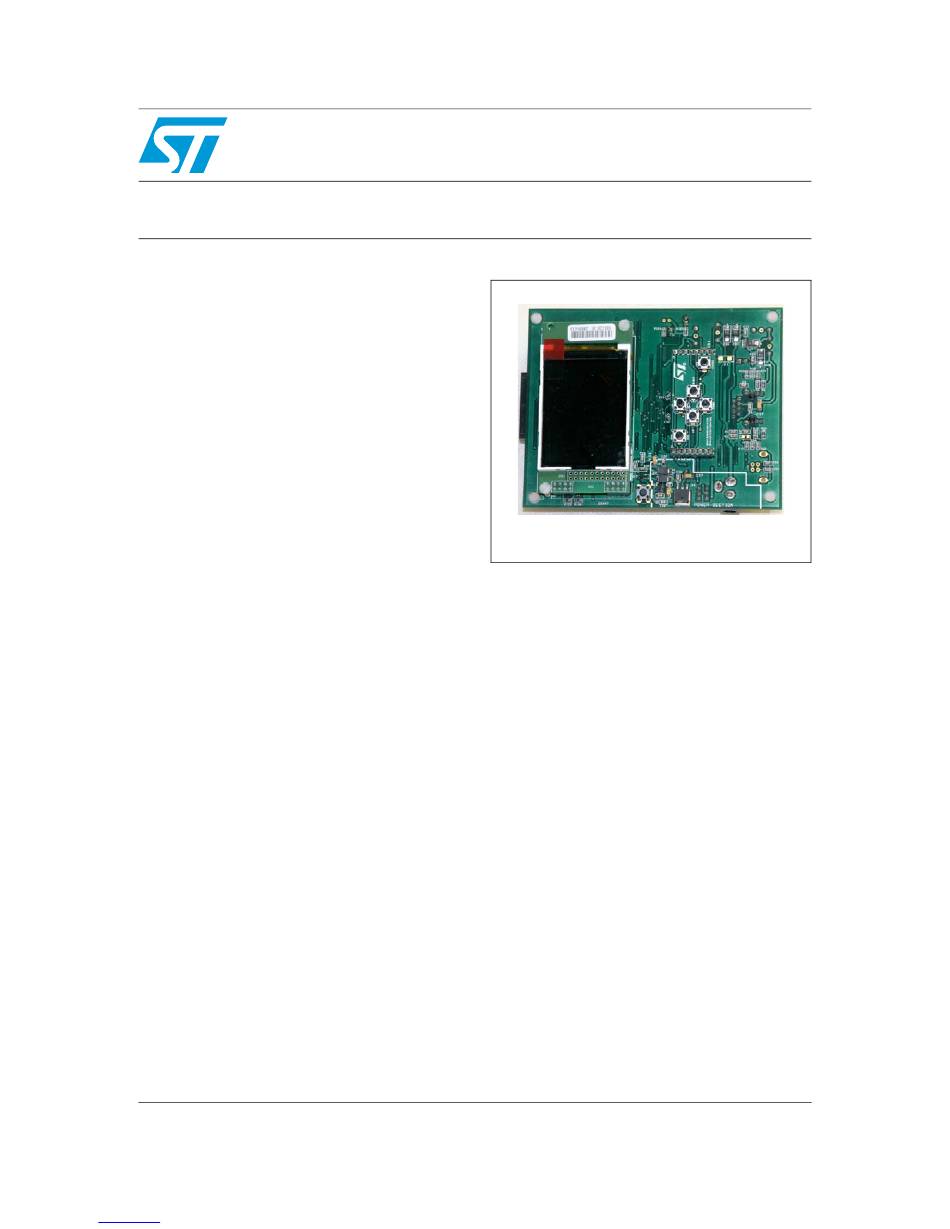

The STEVAL-PCC008V1 demonstration board
implements the functionality of an embedded
Ethernet web client system, which is based on the
STR91xFAW ARM966E-S™ 16/32-Bit Flash
MCU with Ethernet microcontroller.
The system is designed to view/monitor JPEG
images taken from an HTTP web server or from
an IP camera on the network. The images are
displayed on the TFT screen, demonstrating the
surveillance capability. The system is compatible
with web servers which do not require secure
socket layer (SSL) support. It uses specific
programmed requests to capture images from the
specific web servers.
The display is a 2.4" TFT screen which displays
images captured from the network by converting
them into bitmaps through a JPEG
decompression algorithm.
A six-button keypad is provided for navigating
through menus.
The availability of a microSD card on the board
aids in the handling of large chunks of data from
the network.
March 2010
For further information contact your local STMicroelectronics sales office.
Downloaded from
Elcodis.com
electronic components distributor
TFT display demonstration board with Ethernet connectivity
STEVAL-PCC008V1
STEVAL-PCC008V1
Doc ID 17232 Rev 1
based on the STR91
Data brief
www.st.com
1/7
7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST STEVAL-PCC008V1
Summary of Contents for ST STEVAL-PCC008V1
- Page 1 ■ RoHS compliant Description STEVAL-PCC008V1 The STEVAL-PCC008V1 demonstration board implements the functionality of an embedded Ethernet web client system, which is based on the STR91xFAW ARM966E-S™ 16/32-Bit Flash MCU with Ethernet microcontroller. The system is designed to view/monitor JPEG images taken from an HTTP web server or from an IP camera on the network.
- Page 2 Schematic diagrams STEVAL-PCC008V1 Schematic diagrams Figure 1. Microcontroller circuit schematic Doc ID 17232 Rev 1 Downloaded from Elcodis.com electronic components distributor...
- Page 3 STEVAL-PCC008V1 Schematic diagrams Figure 2. Ethernet circuit schematic Doc ID 17232 Rev 1 Downloaded from Elcodis.com electronic components distributor...
- Page 4 Schematic diagrams STEVAL-PCC008V1 Figure 3. Connector circuit schematics Doc ID 17232 Rev 1 Downloaded from Elcodis.com electronic components distributor...
- Page 5 STEVAL-PCC008V1 Schematic diagrams Figure 4. Power management circuit schematic Doc ID 17232 Rev 1 Downloaded from Elcodis.com electronic components distributor...
- Page 6 Revision history STEVAL-PCC008V1 Revision history Table 1. Document revision history Date Revision Changes 05-Mar-2010 Initial release. Doc ID 17232 Rev 1 Downloaded from Elcodis.com electronic components distributor...
- Page 7 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
