Evaluation kit for high voltage current sense amplifier with comparator
Introduction
The
STEVAL-AETKT3V1
is an evaluation kit demonstrating TSC200, TSC201,
These devices are current sense amplifier with an overcurrent protection function that can operate in both high side and low
side configuration.
The STEVAL-AET31V1B is a mother board, which can accept different daughter boards to use different gain configuration.
STEVAL-AET32V1B is a daughter board with a
STEVAL-AET33V1B is a daughter board with a
STEVAL-AET34V1B is a daughter board with a
TSC20x is specially designed to accurately measure current by amplifying the voltage across a shunt resistor connected to its
input.
Notice:
For dedicated assistance, submit a request through our online support portal at www.st.com/support.
UM3410 - Rev 1 - September 2024
For further information contact your local STMicroelectronics sales office.
TSC200
mounted with a gain of 20.
TSC201
mounted with a gain of 50.
TSC202
mounted with a gain of 100.

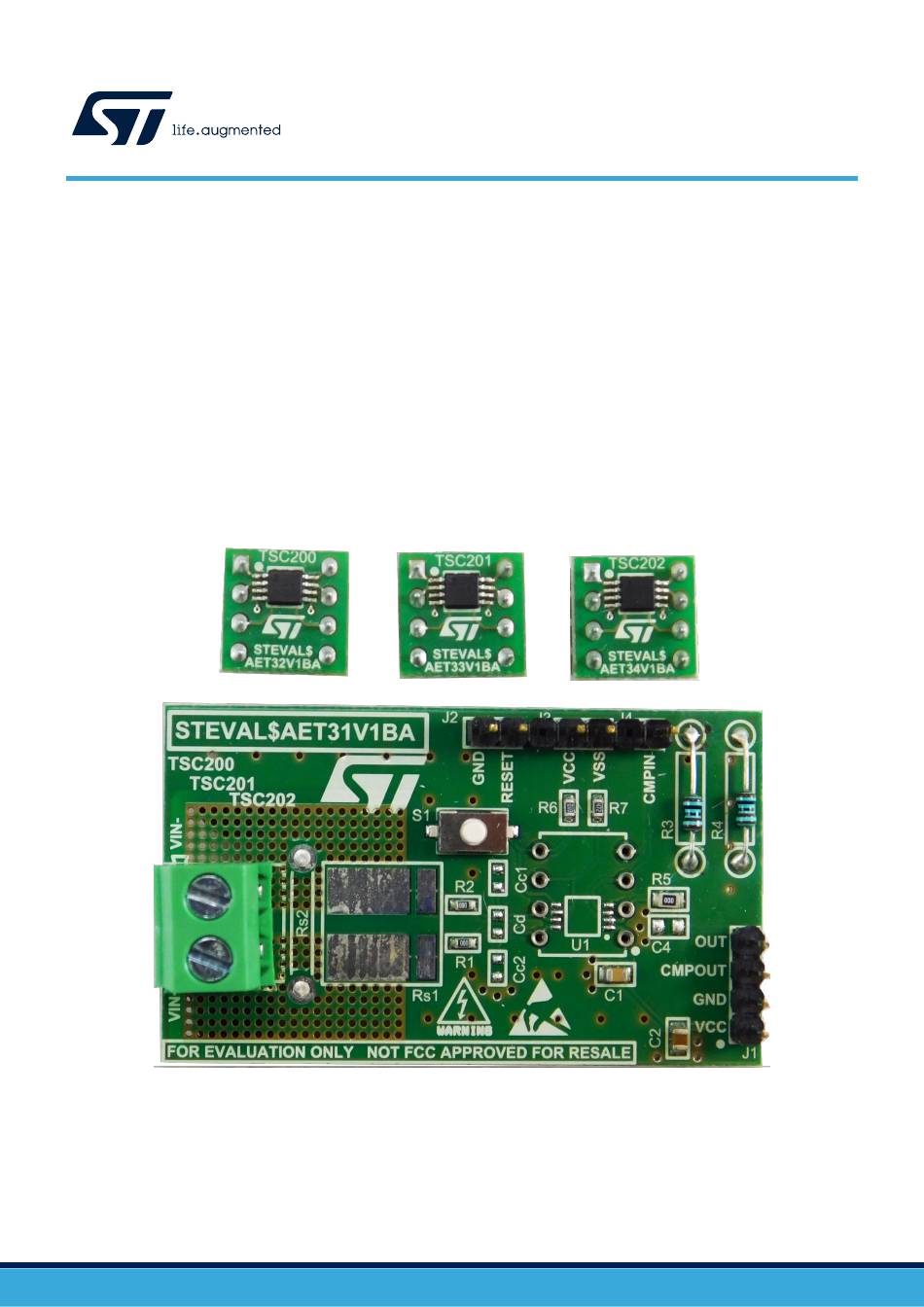

Figure 1.
STEVAL-AETKT3V1 evaluation kit
TSC202
performances.
UM3410
User manual
www.st.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STEVAL-AETKT3V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ST STEVAL-AETKT3V1

Summary of Contents for ST STEVAL-AETKT3V1

  • Page 1: Figure 1. Steval-Aetkt3V1 Evaluation Kit

    TSC20x is specially designed to accurately measure current by amplifying the voltage across a shunt resistor connected to its input. Figure 1. STEVAL-AETKT3V1 evaluation kit Notice: For dedicated assistance, submit a request through our online support portal at www.st.com/support. UM3410 - Rev 1 - September 2024 www.st.com For further information contact your local STMicroelectronics sales office.

  • Page 2: Hardware Configuration

    UM3410 Hardware configuration Hardware configuration Setting The connector J1 (4 pins) on the bottom right corner of the board allows you to set up the power supply voltage and also to read the current sense output voltage and the comparator output. The connector J4, on the top of the board is used to set the input of the TSC20x comparator.

  • Page 3: Daughter Board Connection

    UM3410 Hardware configuration Daughter board connection STEVAL-AETKT3V1 evaluation kit allows you to use 3 different current sense amplifiers, and each of them can be connected on the mother board STEVAL-AET31V1B as suggested by the Figure 3. Daughter board connection. Figure 3.

  • Page 4: Comparator

    UM3410 Comparator Comparator The TSC20x family integrates an open-drain comparator, which can be useful for an overcurrent protection function. It is generally recommended to use a 4.7 kΩ pull-up resistance on the output. The voltage applied on the pull-up resistance must be in the 2.7 to 18 V range, regardless of the V .

  • Page 5: Figure 6. Divider Bridge Resistor And Schema With Input Resistor

    UM3410 Comparator Or you can use the two resistors R3 and R4 to have a tension divider bridge directly connected to the output current sensor. Here the two resistors have the same value (1 KΩ) but other values can be used to adapt the voltage in CMP pin for your application.

  • Page 6: Comparator Power-On Reset

    UM3410 Comparator Comparator power-on reset The TSC20x's comparator integrates a power-on reset, allowing it to have a defined output state. The TSC20x comparator has an open drain output, so while the V power supply is lower than 1.5 V, the output is ever equal to V .

  • Page 7: Figure 10. Reset Push Button

    UM3410 Comparator The reset pulse can be done pushing button S1. Figure 10. Reset push button You can also directly connect the RESET pin to GND with J2, like that the reset stays activated in order to disable the latch function. Figure 11.

  • Page 8: Shunt Resistance

    UM3410 Shunt resistance Shunt resistance The STEVAL-AET31V1B offers the possibility to solder shunt resistance directly on the PCB. Two footprints have been defined. A two-wire connection shunt as described by the Figure 12. Shunt 2 wires connections and a four-wire connection shunt as described by the Figure 13.

  • Page 9: Schematic Diagrams

    UM3410 Schematic diagrams Schematic diagrams Figure 14. STEVAL-AET31V1B (mother board ) circuit schematic The STEVAL-AET31V1B board is not available for separate sale. VCC VSS 1µF CMPout SMT - 0805 CMPin 100nF SMT - 0805 PAD8 Vin+ TSC20x MSO-8 PAD1 INPUT OAR1 - R020FI PAD2 CAMDENBOSS...

  • Page 10: Figure 16. Steval-Aet33V1B (Daughter Board) Circuit Schematic

    UM3410 Schematic diagrams Figure 16. STEVAL-AET33V1B (daughter board) circuit schematic The STEVAL-AET33V1B board is not available for separate sale. TSC201 SAMTEC MSO-8 SAMTEC TS-104-G-A TS-104-G-A Vin- VIN+ Vin+ VIN- CMPin CMPout RESET CMPin SMT - 0805 CMPout 0.6V RESET Figure 17. STEVAL-AET34V1B (daughter board) circuit schematic The STEVAL-AET34V1B board is not available for separate sale.

  • Page 11: Bill Of Materials

    UM3410 Bill of materials Bill of materials Table 1. STEVAL-AETKT3V1 bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code Table 2. STEVA Not available for separate Main board L-AET31V1B sale Table 3. STEVA Not available for separate Daughter board...

  • Page 12: Table 3. Steval-Aet32V1B Bill Of Materials

    UM3410 Bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code PAD1, PAD2, PAD3, PAD4, PAD5, PAD6, 1.04 MM MINI CONNECTIVI 5050935-2 PAD7, PAD8, HOLE, 5A SOCKET PT1, PT2, PT3, PT4 SMT - 0603, R1, R2 RESISTOR PANASONIC ERJH3G0R00V 1A, 125mW 1K, AXIALl R3, R4...

  • Page 13: Table 4. Steval-Aet33V1B Bill Of Materials

    UM3410 Bill of materials Table 4. STEVAL-AET33V1B bill of materials The STEVAL-AET33V1B board is supplied with the kit and is not available for separate sale Item Q.ty Ref. Part/Value Description Manufacturer Order code Capacitor - Ceramic - SMT - 0805 Boitier (Not assembled) 4CTS, SIL...

  • Page 14: Kit Versions

    STEVAL$AEKT3V1A bill of materials STEVAL$AETKT3V1A 1. This code identifies the STEVAL-AETKT3V1 evaluation kit first version. The kit consists of the STEVAL-AET31V1B mother board whose version is identified by the code STEVAL$AET31V1BA, the STEVAL-AET32V1B daughter board whose version is identified by the code STEVAL$AET32V1BA, the STEVAL-AET33V1B daughter board whose version is identified by the code STEVAL$AET33V1BA and the STEVAL-AET34V1B daughter board whose version is identified by the code STEVAL$AET34V1BA.

  • Page 15: Regulatory Compliance Information

    UM3410 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product.

  • Page 16: Revision History

    UM3410 Revision history Table 7. Document revision history Date Revision Changes 13-Sep-2024 Initial release. UM3410 - Rev 1 page 16/20...

  • Page 17: Table Of Contents

    UM3410 Contents Contents Hardware configuration ............2 Setting .

  • Page 18: List Of Tables

    STEVAL-AETKT3V1 bill of materials........

  • Page 19: List Of Figures

    STEVAL-AETKT3V1 evaluation kit ........
  • Page 20 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
