VL53L8 series Time-of-Flight sensor characteristics

Laser wavelength: 940 nm
Invisible laser radiation
Maximum laser power emitted: 215 mW
Integration time: 2 ms minimum
1.5

Main board architecture and components

STHS34PF80
VD6283TX Hybrid filter multispectral sensor with light flicker engine.
VL53L8CX Low-power high-performance 8x8 multizone Time-of-Flight (ToF) sensor.
1.5.1 STHS34PF80 low-power, high-sensitivity infrared (IR) sensor for presence and motion
detection
The STHS34PF80
operating wavelength between 5 µm and 20 µm.
UM3320 - Rev 1

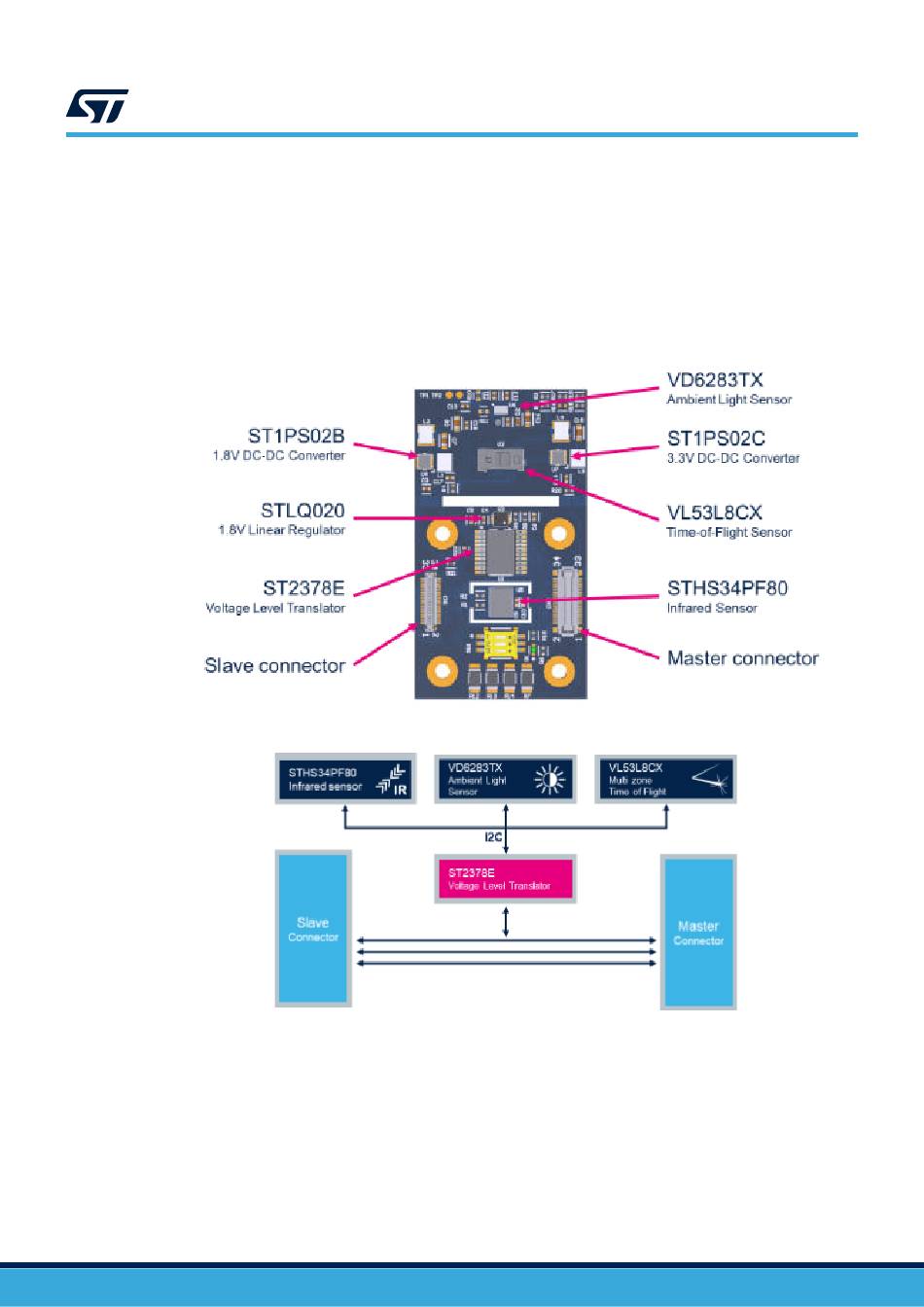

Figure 3. STEVAL-PDETECT1 main components
