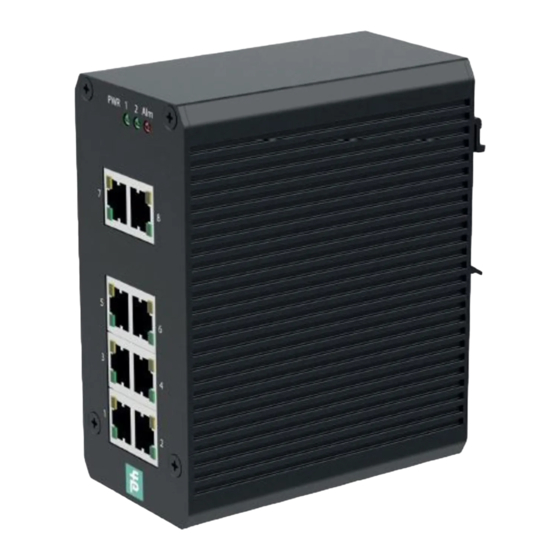

- Page 1 ROCKETLINX ICRL-U-8RJ45-DIN ICRL-U-8RJ45-DIN-NT Quick Installation Guide DOCT-6558 | Release Date - November 2019...
-
Page 2: Wiring The Power Inputs
Introduction The ICRL-U-8RJ45-DIN and ICRL-U8RJ45-DIN-NT switches are 8-port Fast Ethernet industrial switch featuring a 2.0Gbps Packet Switch engine with packet forwarding and filtering mechanisms to meet industrial communications standards. It provides packet forwarding capabilities to handle 64 to 1522 byte sizes in two priority queues to optimize data forwarding performance. -
Page 3: Grounding The Switch
Note: Power should be disconnected from the power supply before connecting it to the switch. Otherwise, your screwdriver blade can inadvertently short your terminal connections to the grounded enclosure. WARNING - EXPLOSION HAZARD – Do not disconnect the ICRL-U- 8RJ45-DIN unless the power has been removed or the area is known to be non-hazardous. -
Page 4: Setting The Dip Switch
Wiring the Alarm Relay Output The switch has a built-in alarm-relay for port link and power events notifications. The relay contacts are normally open and remain open when there is no failure event. The relay contacts close when there is a failure event to notify. -
Page 5: Mounting The Switch
Mounting the Switch Mount the switch on the DIN rail using the DIN rail clip that is attached to the rear of the unit. Insert the upper end of DIN rail clip into the back of DIN rail track from its upper side. Lightly push the bottom of the DIN rail clip into the track. -
Page 6: Led Indicators
LED Indicators There are system diagnostic and Ethernet port LEDs located on the front panel of the switch. LED Lit LED Off PWR 1/ Powered No Power PWR 2 Alm (Alarm) Port Link is down or a Not activated power failure event has occured. -
Page 7: Customer Service
Customer Service You can use one of the following methods to contact Pepperl+Fuchs. Worldwide Headquarters Pepperl+Fuchs AG 68307 Mannheim, Germany +49 621 776-0 info@de.pepperl-fuchs.com USA Headquarters Pepperl+Fuchs, Inc. Twinsburg, Ohio 44087 - USA +1 330 425 3555 sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd.
