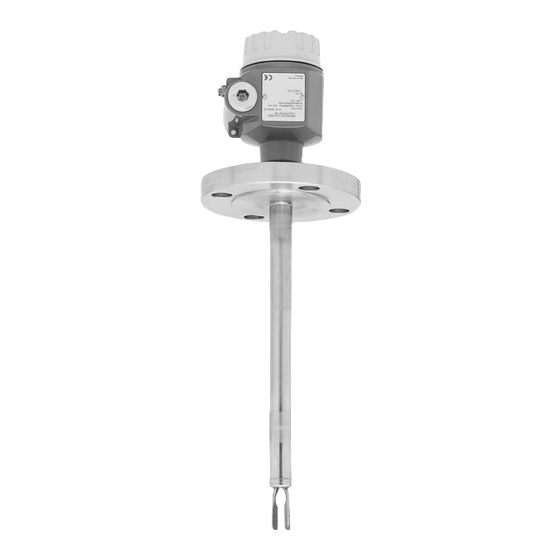

Pepperl+Fuchs LVL-M1 Instruction Manual
Vibration level switch
Hide thumbs
Also See for LVL-M1:
- Manual (68 pages) ,
- Instruction manual (16 pages) ,
- Instruction manual (16 pages)
Related Manuals for Pepperl+Fuchs LVL-M1
Summary of Contents for Pepperl+Fuchs LVL-M1
- Page 1 LVL-M*(H), LVL-M2C Vibration Level Switch ATEX, IEXEx Ex db IIC Ga/Gb Instruction Manual ISO9001...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Vibration Level Switch Vibracon LVL-M*(H), LVL-M2C Table of Contents Associated Documentation ..........Supplementary Documentation. -
Page 4: Associated Documentation
Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Associated Documentation This document is an integral part of the following documents: • KA00143O (LVL-M1, LVL-M2) • KA00144O (LVL-M1H, LVL-M2H) • KA00162O (LVL-M2C) The documents which are supplied and correspond to the device type apply. -
Page 5: Extended Order Code
The extended order code is indicated on the nameplate, which is affixed to the device in such a way that it is clearly visible. Additional information about the nameplate is provided in the associated manual. Structure of the Extended Order Code Device type Basic specifications Probe length LVL-M1 – XXXXX-XXXXXX-XX – LVL-M1H – XXXXX-XXXXXX-XX –... - Page 6 • This documentation to the device (using the extended order code on the nameplate). • The device options cited in the document. Device types LVL-M1, LVL-M1H, LVL-M2, LVL-M2H, LVL-M2C Basic specifications Probe version, probe length Position Option Description...
- Page 7 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Housing Position Option Description LVL-MX-XXXXX- XXXX-XX Aluminum housing, IP66, thread M20 LVL-MXH-XXXXX- XXXX-XX.XXXXX Aluminum housing, NEMA 4X, 3/4NPT LVL-M2C-XXXXXXX- XXXX-XX.XXXXX Aluminum housing, IP66, entry G1/2A Electrical output Position Option Description LVL-MX-XXXXX-XX XX-XX FEL50A, PROFIBUS PA LVL-MXH-XXXXX-XX XX-XX.XXXXX FEL51, contactless, 2-wire switch, 19 V to 253 V AC...
-
Page 8: Safety Instructions: General
• Modifications to the device can affect the explosion protection and must be carried out by staff authorized to perform such work by Pepperl+Fuchs. • The probe is made of stainless steel or high corrosion-resistant alloy of thickness ≥ 1 mm. -
Page 9: Safety Instructions: Installation
Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Device group IIC Device type LVL-M2C • Sensors coated with non-conductive material can be used if avoiding electrostatic charging (e. g. through friction, cleaning, maintenance, strong medium flow). • Marked with warning sign: Avoid electrostatic charging. Safety Instructions: Installation Figure 1 Zone 1... -
Page 10: Safety Instructions: Ex D Joints
Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K • Install the device to exclude any mechanical damage or friction during the application. Pay particular attention to flow conditions and tank fittings. • Support extension tube of the device if a dynamic load is expected. •... -
Page 11: Temperature Tables
Unless otherwise indicated, the positions always refer to the basic specification. General • 1st line: basic specification, feature Housing • 1st column: • LVL-M1, LVL-M1H, LVL-M2, LVL-M2H: basic specification, feature Probe version, probe length • LVL-M2C: basic specification, feature Temperature spacer, gastight spacer • 2nd column: maximum load current •... - Page 12 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Zone 0, Zone 1 Zone 1 Zone 0, Zone 1 Figure 3 Device types LVL-M1, LVL-M1H, LVL-M2, LVL-M2H Basic specification, feature Electrical output, option AC LVL-M1, LVL-M1H: 180 mA LVL-M2, LVL-M2H: BX, CX, DX T3...T1...
- Page 13 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Basic specification, feature Electrical output, option E5 LVL-M1, LVL-M1H: 350 mA LVL-M2, LVL-M2H: BX, CX, DX T3...T1 LVL-M1, LVL-M1H: 350 mA IX, QX LVL-M2, LVL-M2H: JX, KX, LX, RX, SX, T3...T1 Table 4 Basic specification, feature Electrical output, option WA...
- Page 14 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Basic specification, feature Electrical output, option PA, SI, N1, N2 T3...T1 Table 6...
- Page 15 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Device type LVL-M2C Basic specification, feature Electrical output, option AC LVL-M2C: A 180 mA T3...T1 LVL-M2C: B, C 180 mA T3...T1 350 mA T3...T1 Table 7 Basic specification, feature Electrical output, option E5 LVL-M2C: A 350 mA T3...T1 LVL-M2C: B, C...
- Page 16 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Basic specification, feature Electrical output, option WA LVL-M2C: A T3...T1 LVL-M2C: B, C T3...T1 T3...T1 Table 9 Basic specification, feature Electrical output, option PA, SI, N1, N2 T3...T1 Table 10...
-
Page 17: Connection Data
Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K Connection Data Basic specification, feature Electrical output Option Supply circuit Output for connection to a Fieldbus PROFIBUS PA U = 19 V AC to 253 V AC, 50/60 Hz; max. 0.96 VA max. 350 mA U = 10 V DC to 55 V DC;... - Page 18 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K...
- Page 19 Vibration Level Switch LVL-M*(H), LVL-M2C SI00031O-K...
- Page 20 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality SI00031O-K/98/A3/17.21 www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications Printed in Germany 114163 / DOCT-0557C...
