CTS EPS-5112 Series User Manual

8 x 10/100/1000base-t rj-45 with ieee 802.3af/at/bt poe++ injector + 2 x 100m/1g/2.5g/5g/10gbase-t rj-45 + 2 x 1/10gbase-r sfp+ managed layer 2 poe switch

Advertisement

Quick Links

EPS-5112
Series
8 x 10/100/1000Base-T RJ-45
with IEEE 802.3af/at/bt PoE++ Injector +
2 x 100M/1G/2.5G/5G/10GBase-T RJ-45 +
2 x 1/10GBase-R SFP+
Managed Layer 2 PoE Switch
User's Guide
Version 1.1
Trademarks
CTS is a registered trademark of Connection Technology Systems Inc. Contents subject to
revision without prior notice.
All other trademarks remain the property of their owners.
Copyright Statement
Copyright  Connection Technology Systems Inc.
This publication may not be reproduced as a whole or in part, in any way whatsoever unless
prior consent has been obtained from Connection Technology Systems Inc.
FCC Warning
The EPS-5112 Series switch have been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These standards are designed to provide
reasonable protection against harmful interference when these devices are operated in a
commercial environment. These devices generate, use, and can radiate radio frequency energy
and may cause harmful interference to radio communications unless installed in accordance
with this User's Guide. Operation of these devices in a residential area is likely to cause harmful
interference which will make the user responsible for the appropriate remedial action at his / her
own expense.
CE Mark Warning
These are Class A products. In a domestic environment these products may cause radio
interference in which case the user will need to consider adequate preventative methods.
1.
Checklist
The item listed below should be included in the package:
One set of the Managed Switch
19-inch rack-mounting kit:
- 1 x Long mounting bracket
- 2 x regular mounting brackets
- Screws
4 x rubber feet with adhesive backing
1 x Console RS-232 cable with RJ-45 connector
1 x AC power cord
Two-switch combine kit for 19-inch rack-mounting. (Optional)
- 4 x
-shaped fixed pieces
- Screws
19-inch rack-mount bracket. (Optional)
- Screws
Please contact your sales representative immediately if any items are missing or damaged.
2.
Appearance

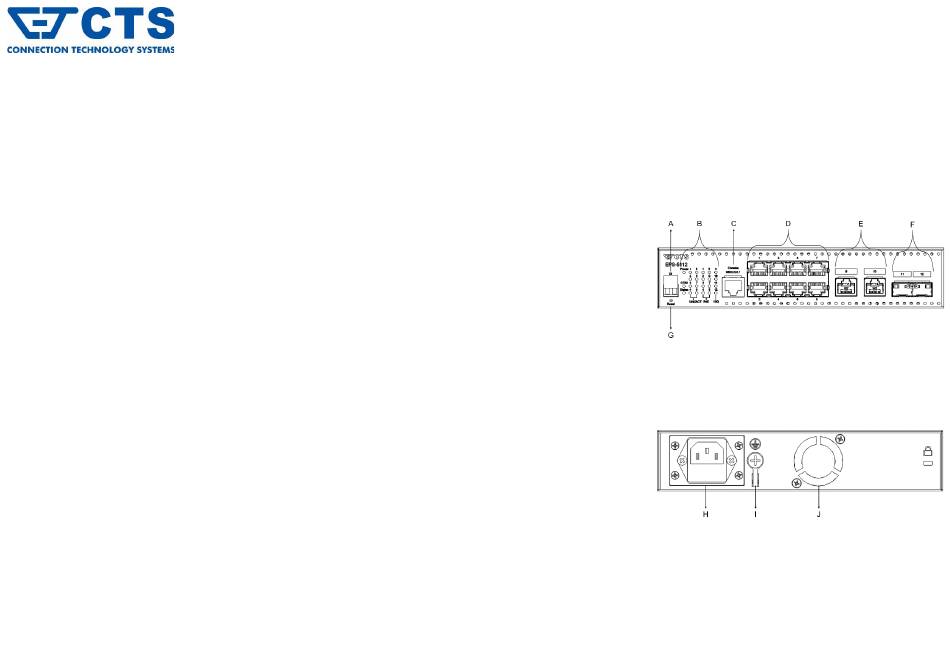

2.1 Front Panel
A
Digital Input (Dry Contact)
B
LEDs
C
Console Port
D
8 x 10/100/1000Base-T RJ-45 with IEEE 802.3af/at/bt PoE++ injector (Port 1-8)
E
2 x 100M/1G/2.5G/5G/10GBase-T RJ-45 (Port 9-10)
F
2 x 1/10GBase-R SFP+ ports (Port 11-12)
G
Reset Button
2.2 Rear Panel
H
Power module and AC Connector
I
Ground Screw
J
Smart Fan
